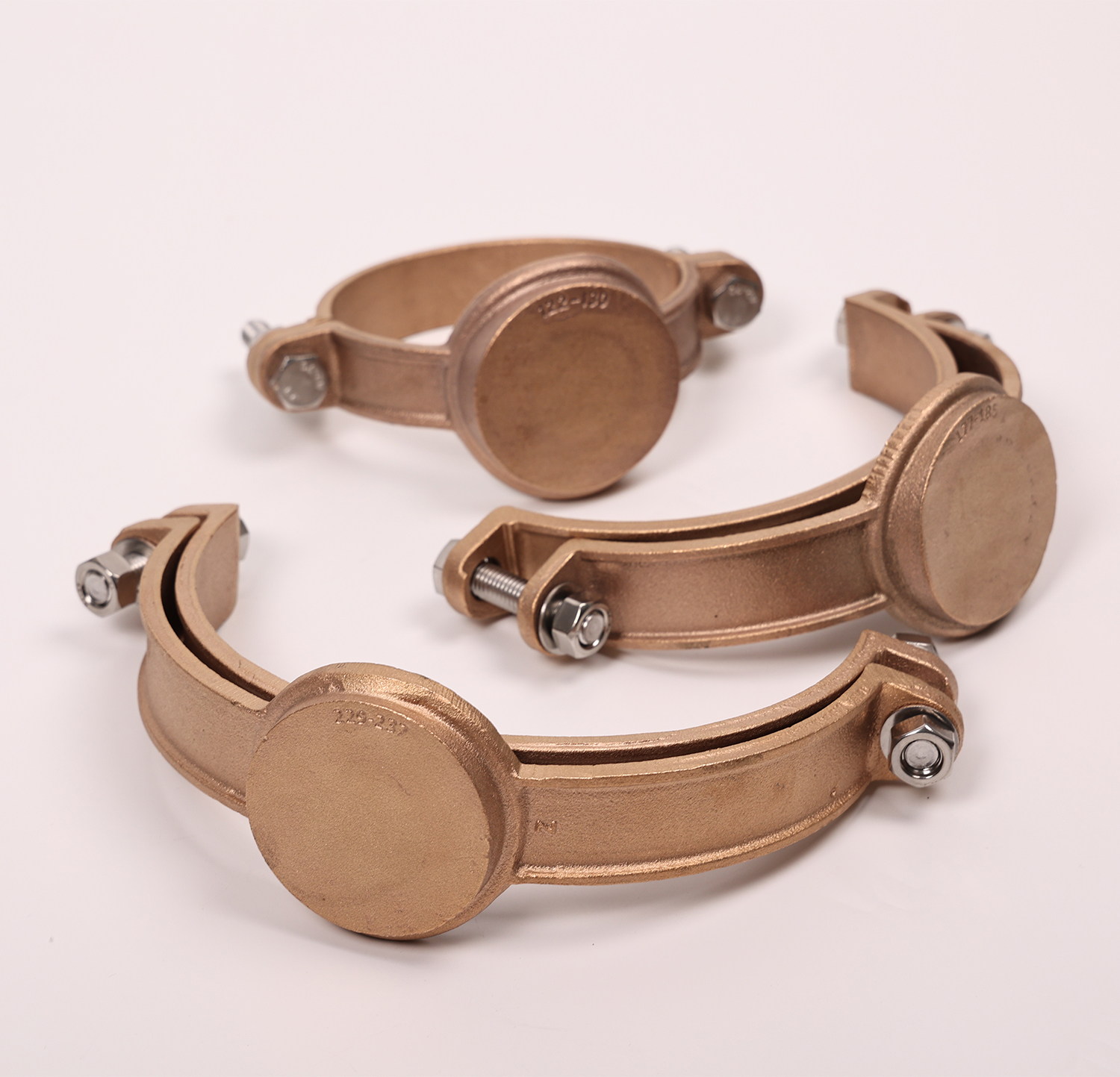

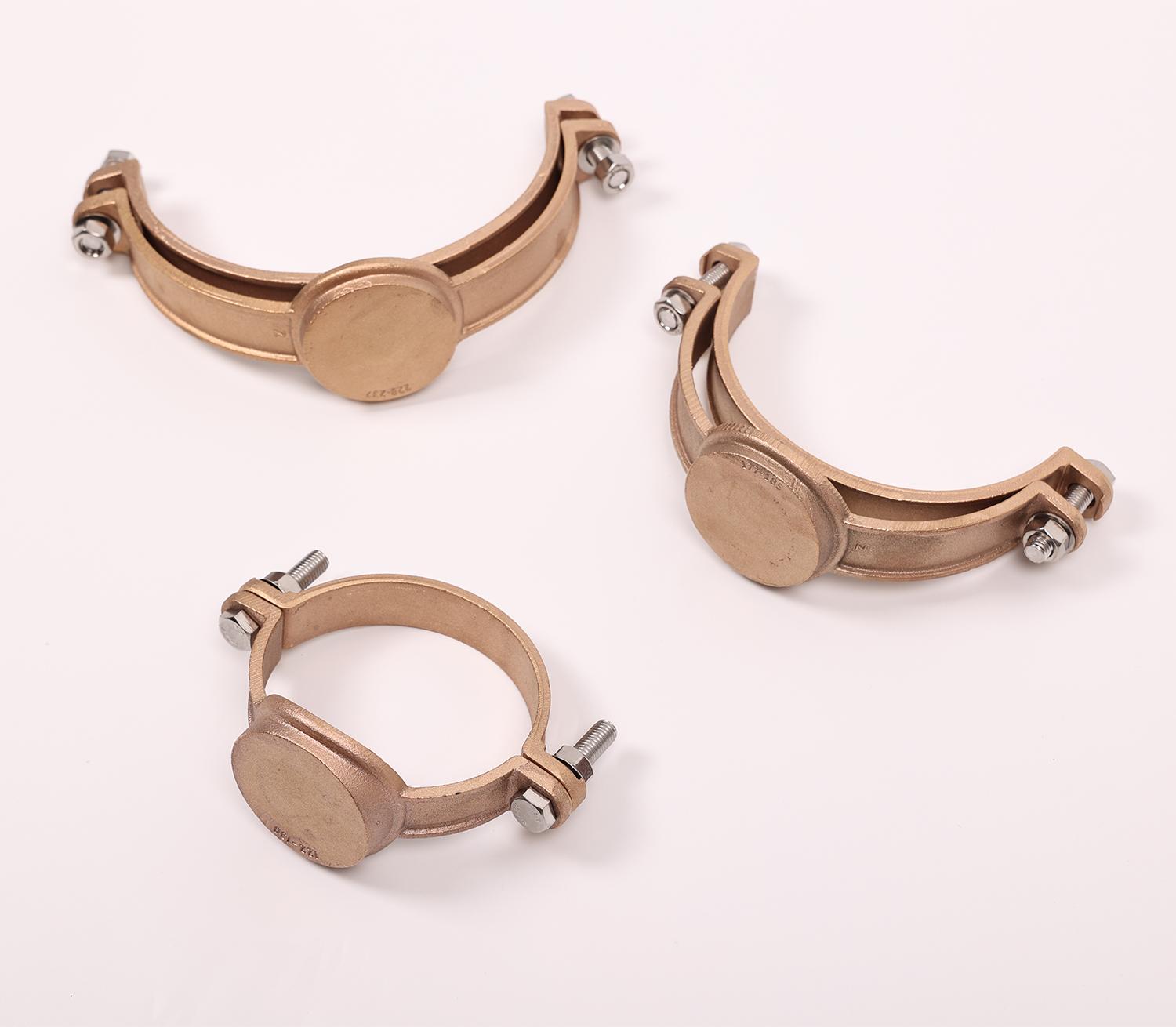

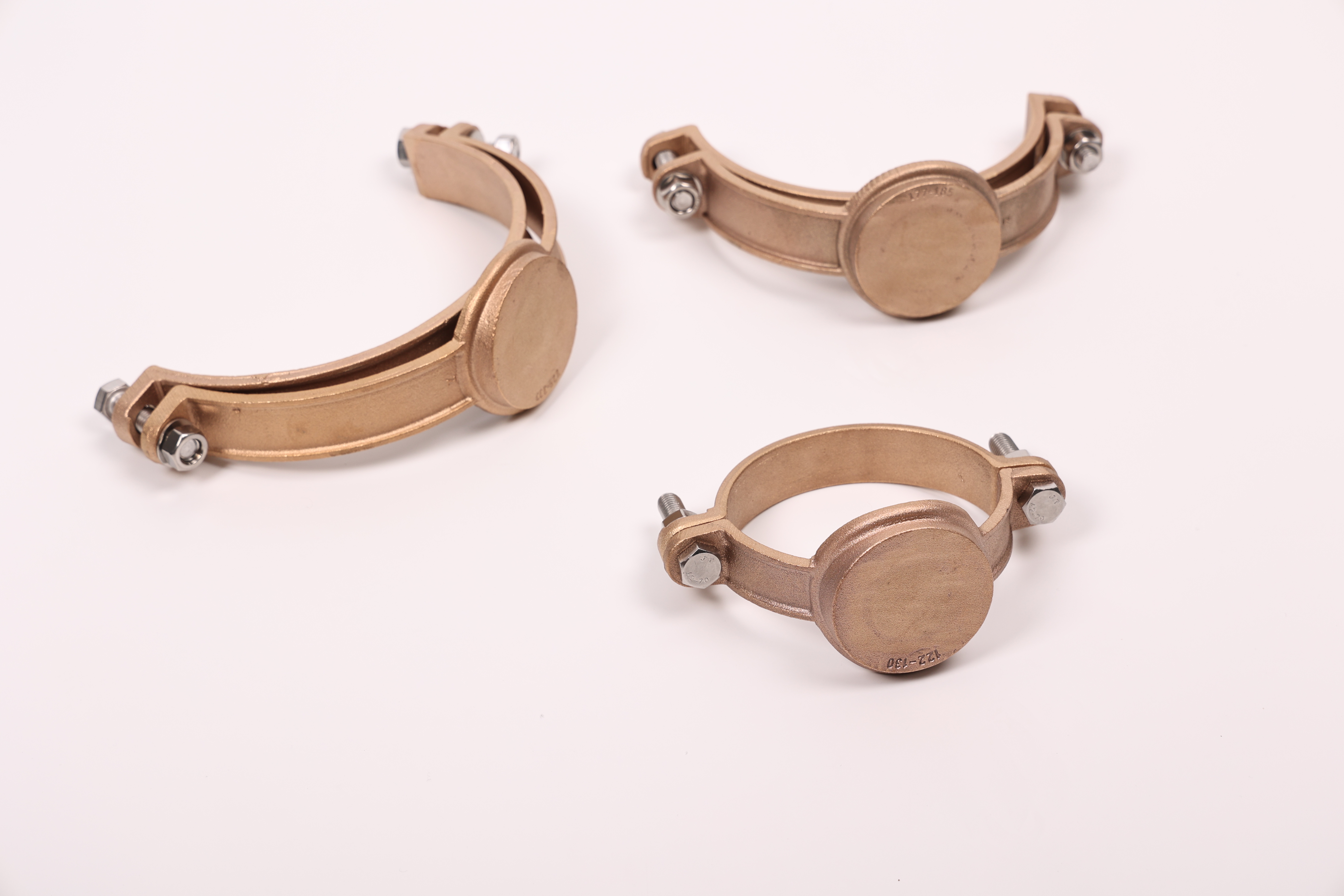

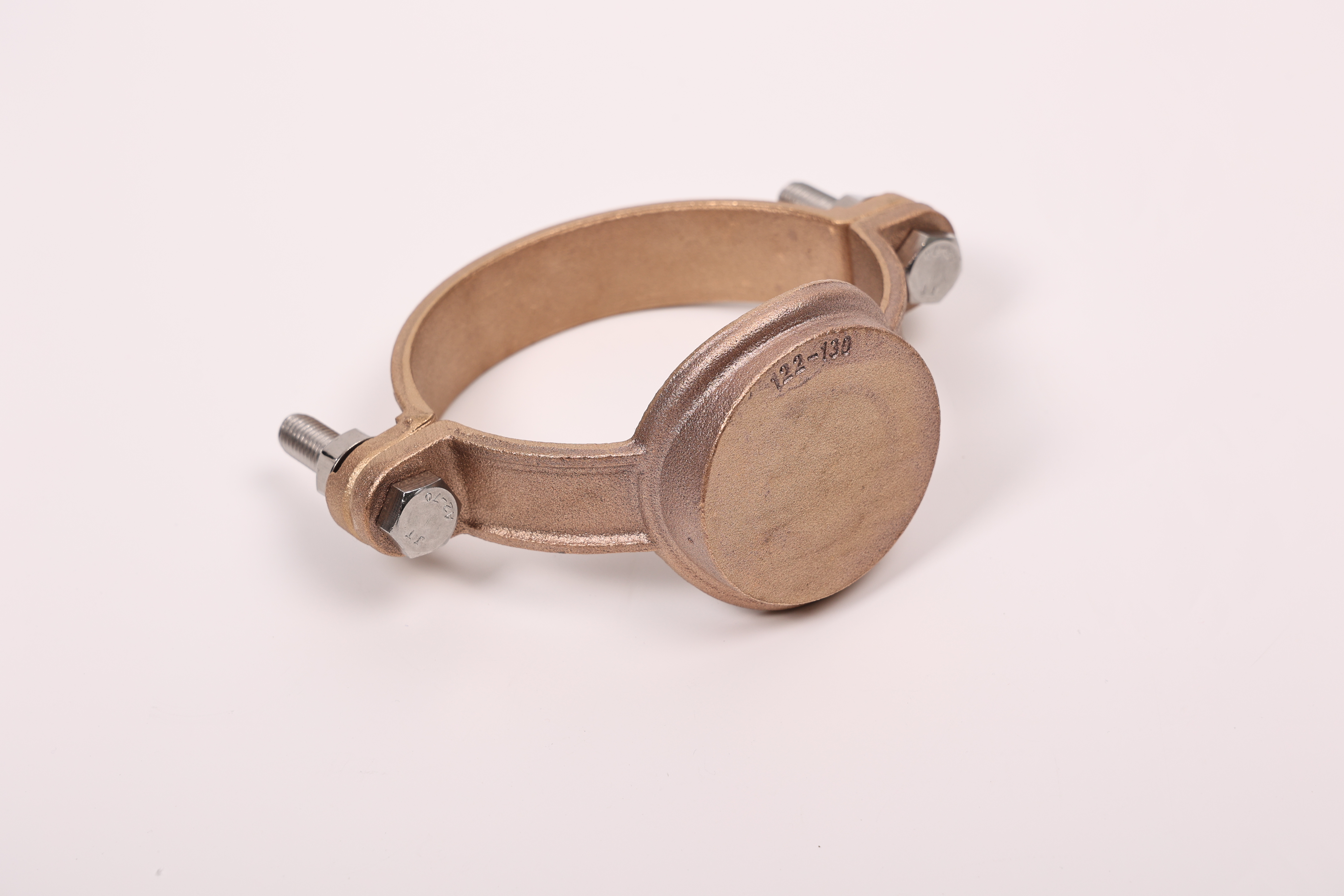

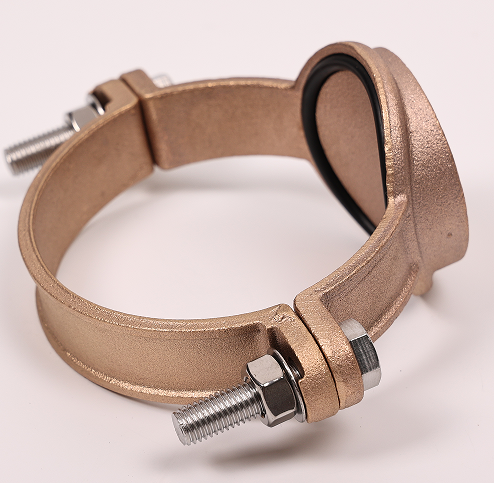

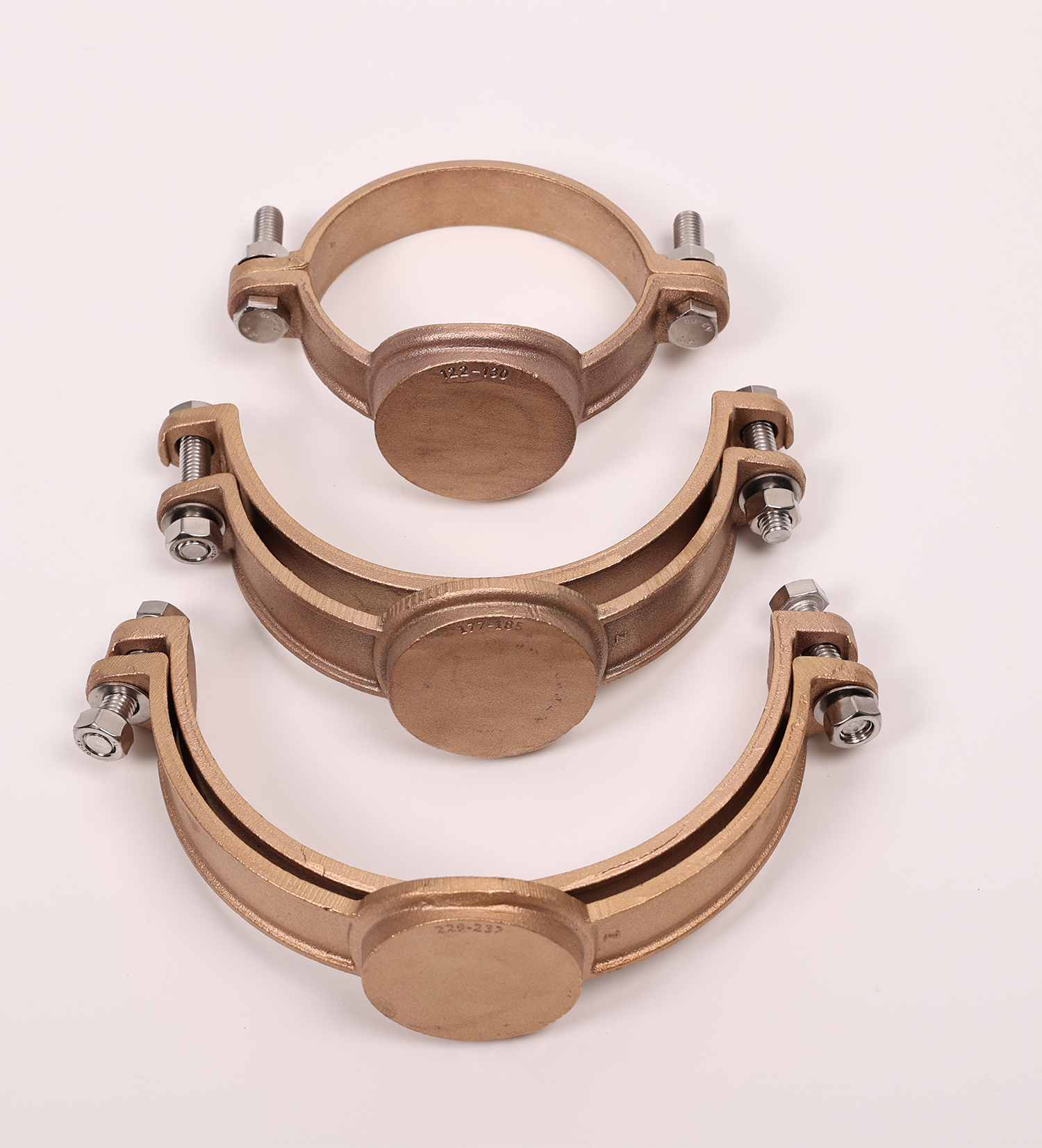

Bronze Flat boss saddle for PVC/PE pipe NR-F012

flat Boss Straps are designed for making service connections into PVC, asbestos cement pipes, cast iron and ductile iron pipes, PE and GRP pipes, steel pipes.
A ferrule can then be inserted into the main via the Strap Boss using
drilling and tapping equipment whilst the main is pressurized or dry.
The Flat Boss Strap range provides maximum thread engagement into
the boss of strap and tappings from 1/2” to 2” can be made into most
Flat Boss Straps. Alternatively the strap can be pre-drilled and tapped
and fitted with a ferrule prior to delivery for use on asbestos cement
and PVC mains. The wall of the pipe is then simply drilled using under
pressure drilling equipment.
Solid Flat Boss Straps can also be used as blanking straps for sealing
existing holes in mains after removal of a ferrule.

Our high-quality Bronze Flat Boss Saddle, specifically designed for use with PVC and PE pipes. This saddle is crafted from durable bronze material, ensuring long-lasting performance and resistance to corrosion in various environments.
The flat boss design provides a stable and secure connection point for attaching fittings or accessories to your PVC/PE pipeline system. Its compact and streamlined profile minimizes interference and allows for easy installation in tight spaces.

Model:

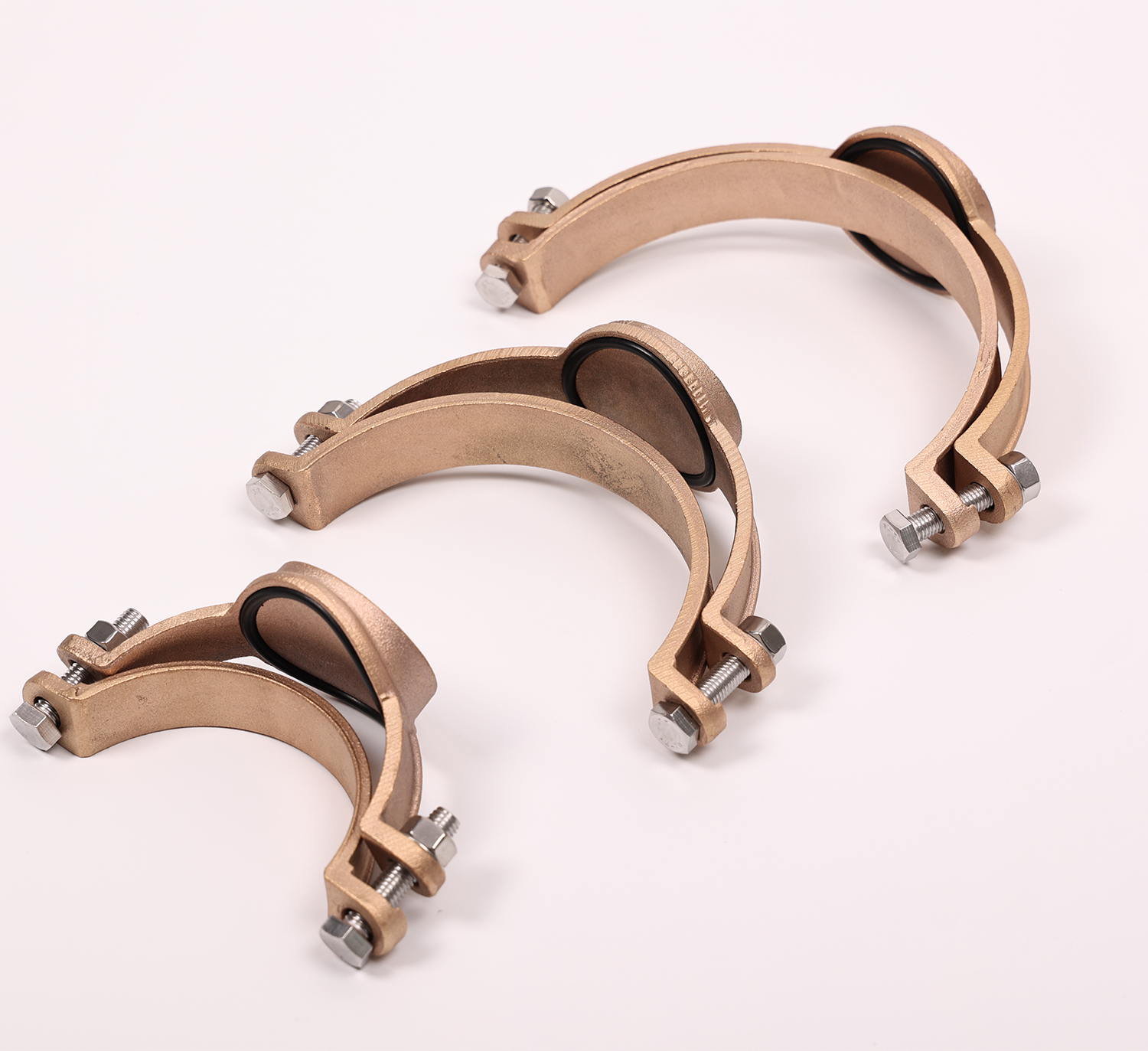

NR-F012A
Brand:
Raising
Unit price:

Quantity:
Availability:





Inquire Add to Basket

Gunmetal Flat boss Saddle Bronze Flat bos saddle Gunmetal Flat bos straps FLAT BOSS SADDLES FOR METRIC PE/PVC PIPE FLAT BOSS SADDLES FOR IMPERIAL PE/PVC PIPE

Technical Standard

Specifications of Bronze Flat boss saddle

Model:NR-F012	Technical Standard
	Material	Gunmetal,bronze C83600,C84400,lead free bronze C89833,C87850
	Working Medium	Water
	Working Pressure	16 bar
	Working Temperature	-20°C to 120°C
	Size Range	Straps size 63/90/110/160/225/315mm
	Connection type	Pushfit/compression/pack joint
	Production method	Casting + machining
	Standard Ref	BS1400 LG2

Premium Bronze Material: Made from high-grade bronze, offering exceptional durability and corrosion resistance.
Compatibility: Specifically engineered for use with PVC and PE pipes, ensuring a reliable and secure fit.
Flat Boss Design: Provides a stable base for connecting additional fittings or accessories.
Easy Installation: Designed for quick and hassle-free installation, minimizing downtime and labor costs.
Versatile Applications: Suitable for a wide range of piping systems, including water supply, irrigation, and industrial applications.
Quick and simple to install
Quick, permanent, leak free connection provided by a tried and tested design.
Extensive range
A range has been developed to enable user to make connections to
almost any type of mains pipe, either under pressure or dry.
Robust and long lasting
Flat Boss Straps are made from corrosion resistant materials
(Gunmetal to BS 1400 LG2) to give years of trouble free service.
Reliable and leak free

Provide maximum thread engagement for leak free connections

suitable for a working pressure up to 20 bar (300 psi).

With its robust construction and precision engineering, our Bronze Flat Boss Saddle is an ideal choice for anyone looking to enhance their PVC/PE piping system. It offers a secure and reliable connection point, ensuring the integrity and performance of your pipeline infrastructure.

Gunmetal straps
