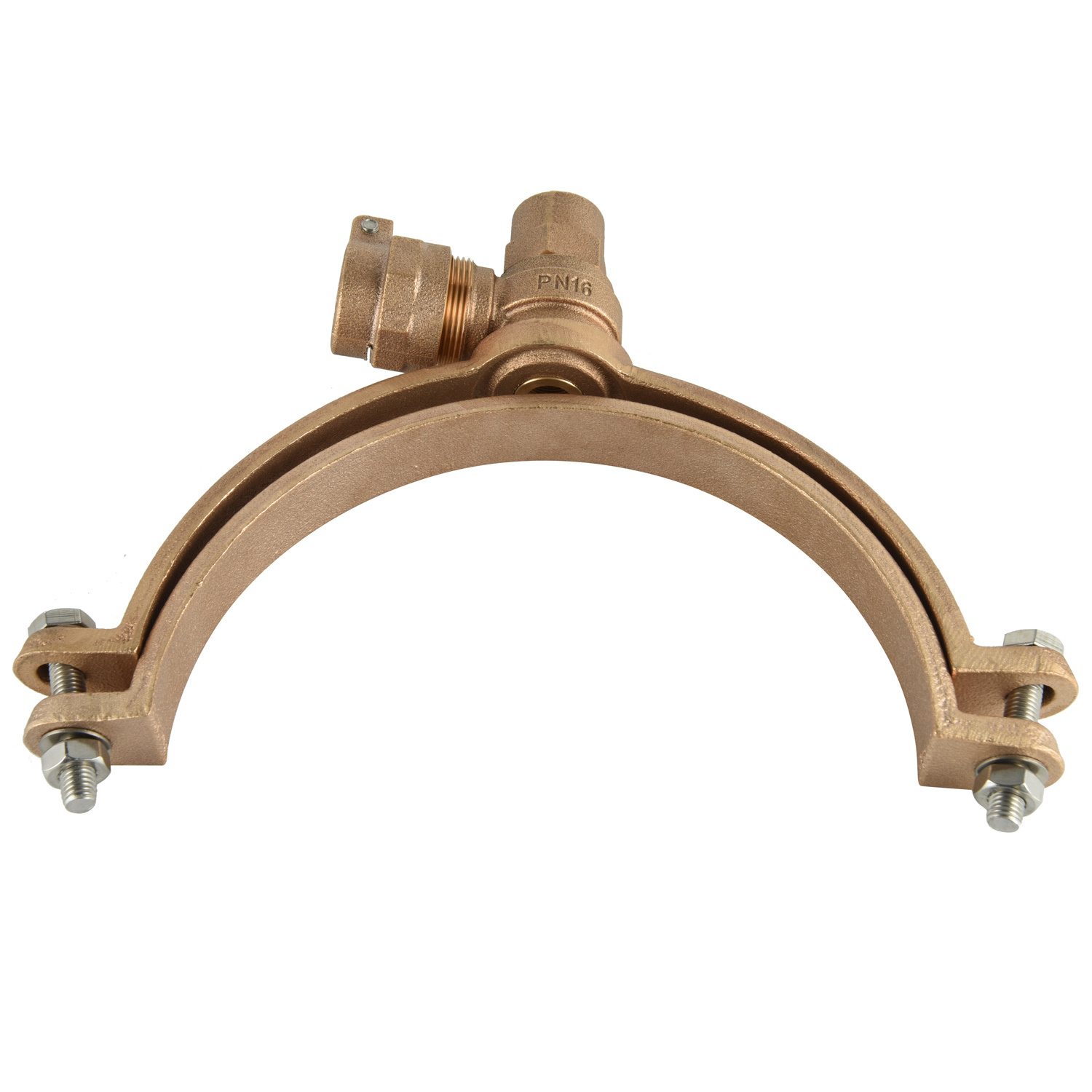

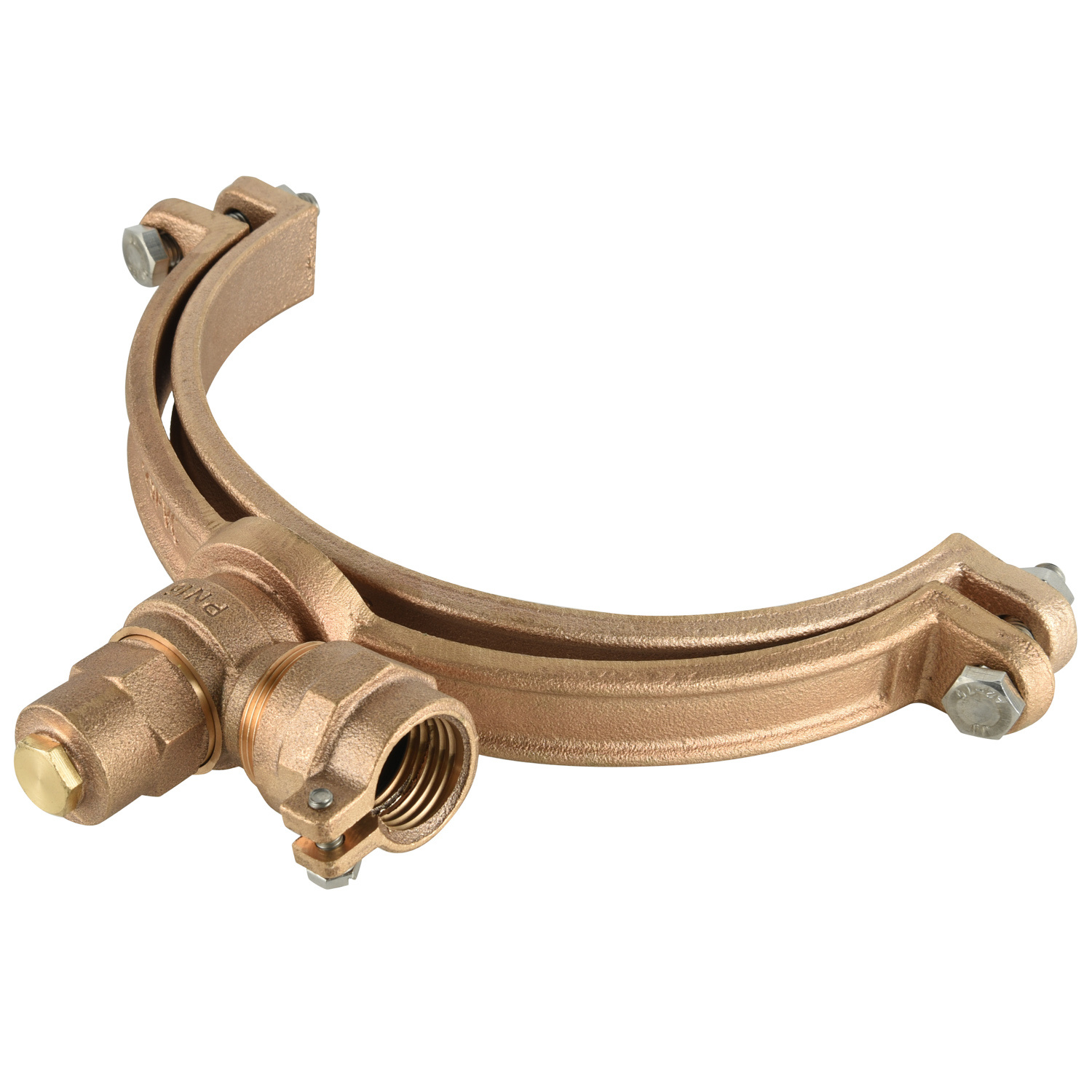

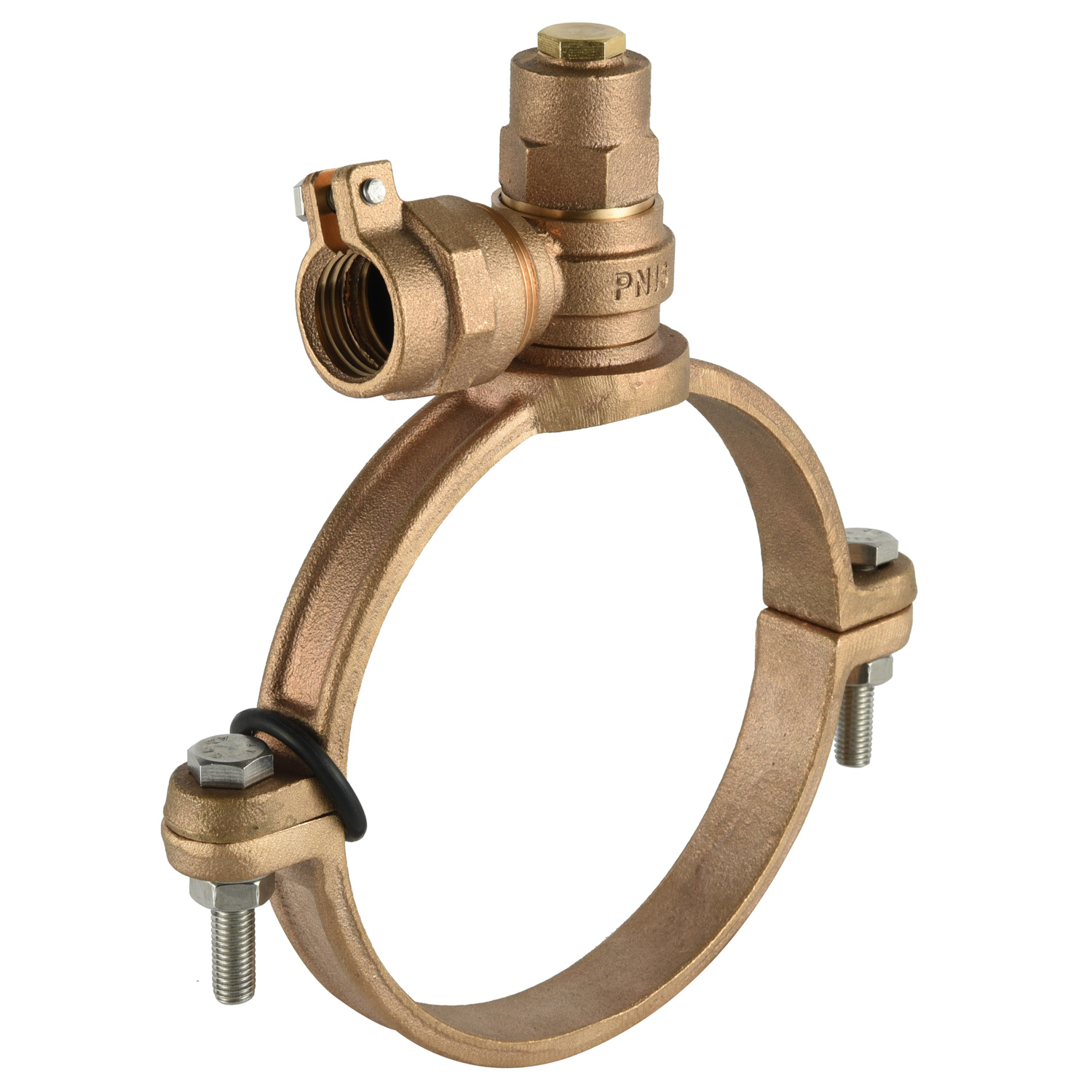

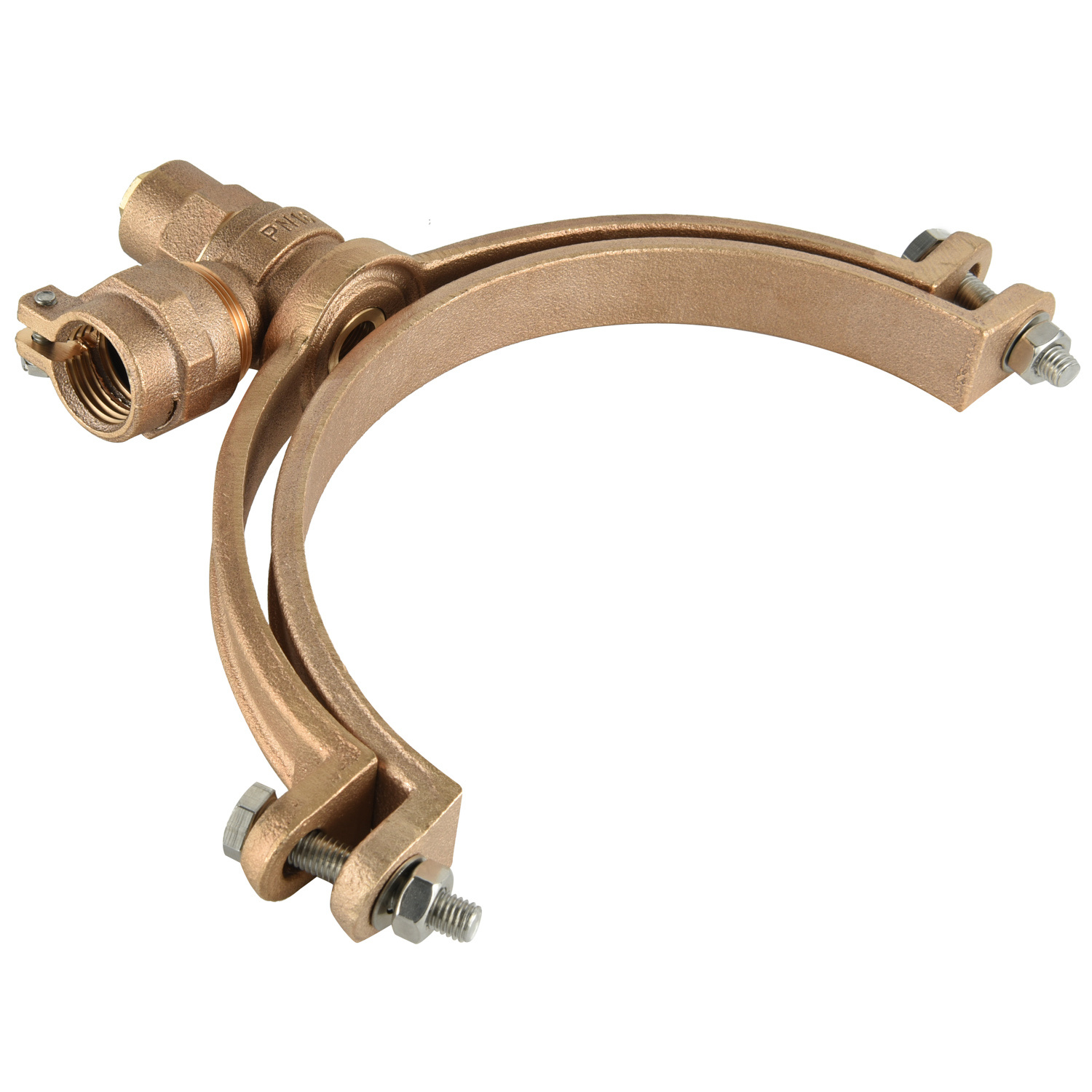

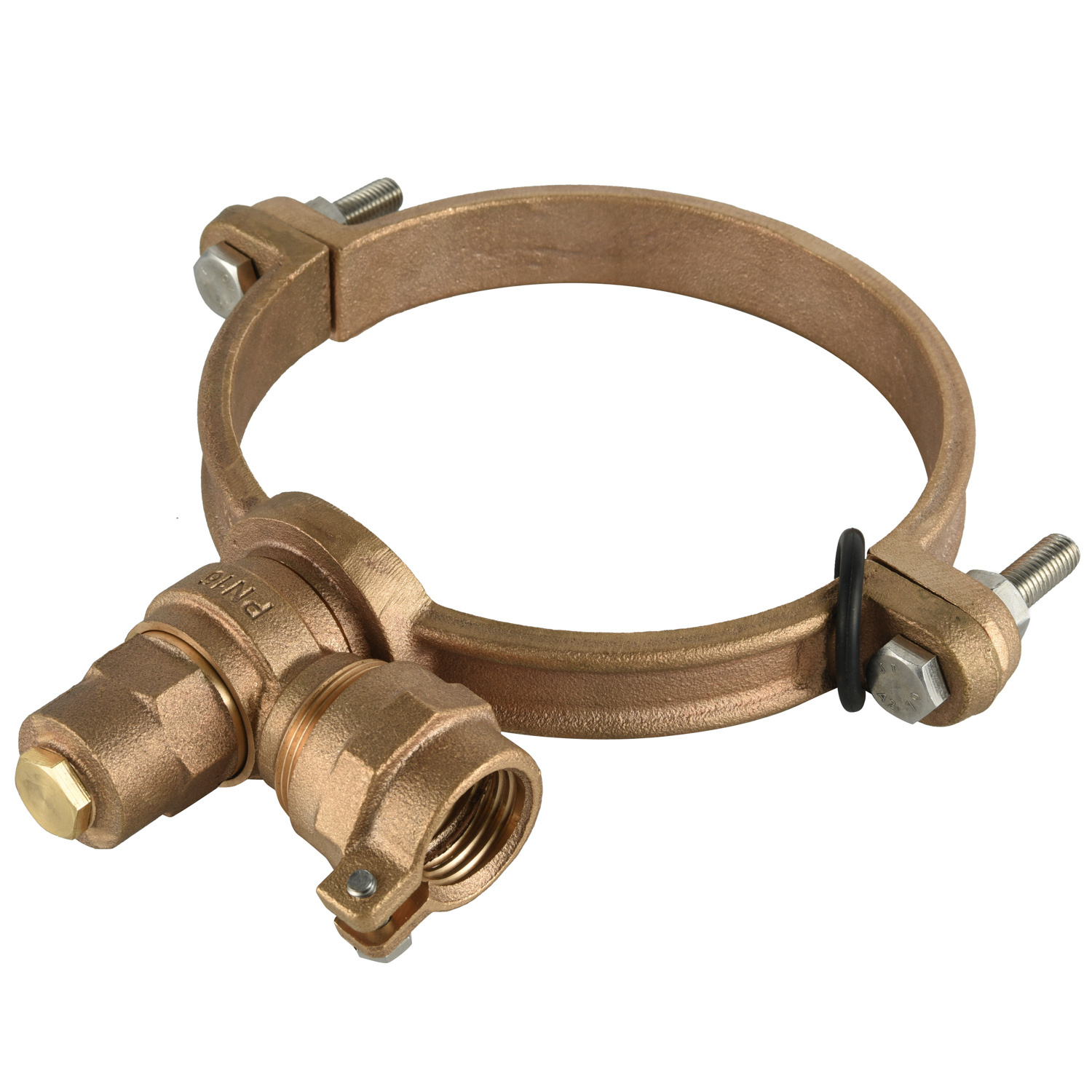

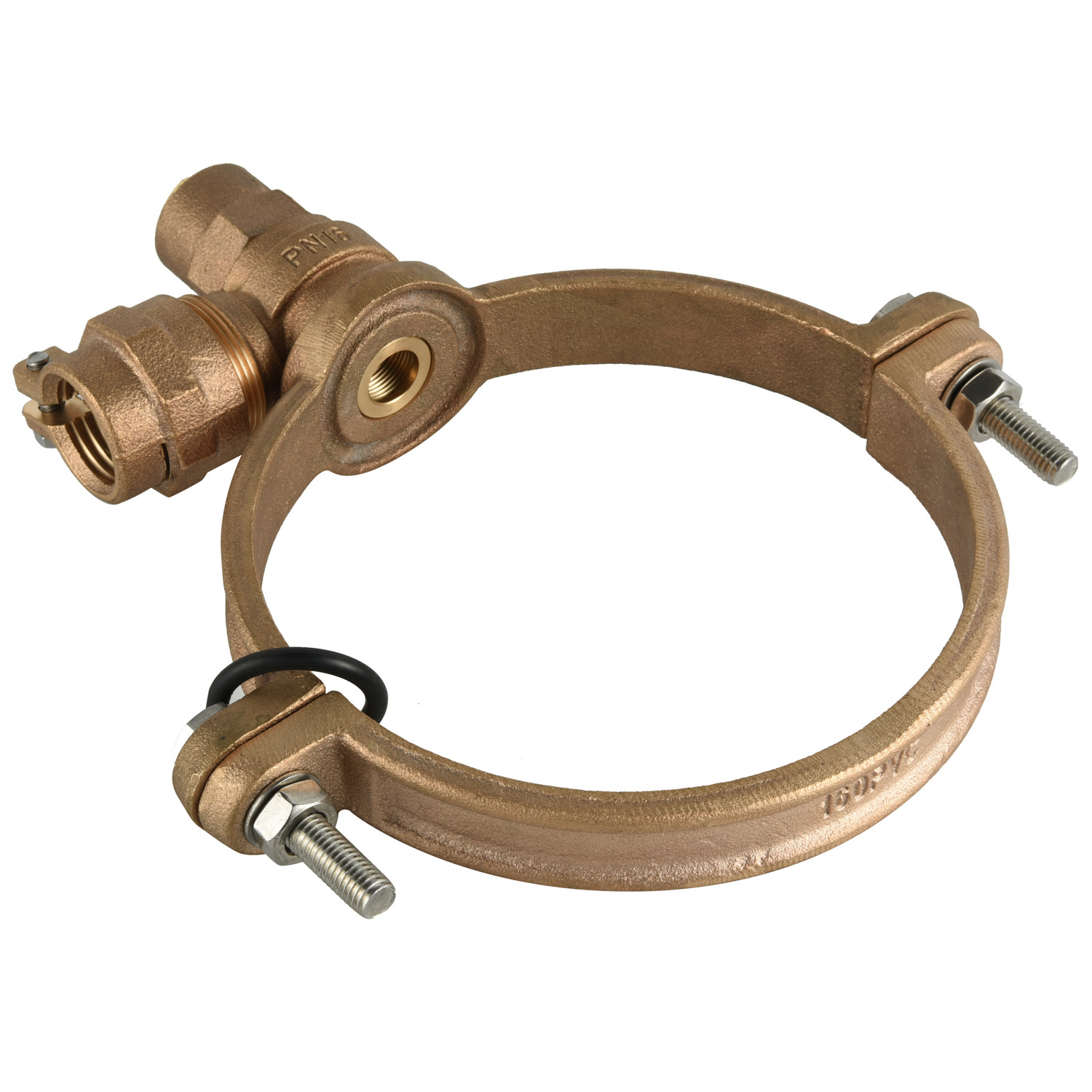

Specifications of Bronze Self-tapping ferrule straps pack joint nut

Model:NR-F007 | Material | Gunmetal,bronze C83600,C84400,lead free bronze C89833,C87850 |
| Working Medium | Water |
| Working Pressure | 16 bar |
| Working Temperature | -20°C to 120°C |
| Size Range | Banjo size:1/2"x20mm.3/4"x25mm,1"x32mm Straps size:63/90/110/160/225/325mm |
| Connection type | Pack joint nut |
| Production method | Casting + machining |
| Standard Ref | BS1400 LG2 |
Advantages of Bronze Self-tapping ferrule straps pack joint nut
Bronze self - tapping ferrule straps with a pack joint nut are specialized components in the field of piping systems.
Material and Construction
Made from bronze, these ferrule straps inherit the remarkable properties of this metal alloy. Bronze is renowned for its corrosion resistance, durability, and strength. It can withstand a wide range of environmental conditions, including moisture, chemicals, and mechanical stress, making it an ideal material for long - lasting and reliable piping connections. The pack joint nut is a crucial part of the assembly. It is designed to work in harmony with the ferrule straps, providing a secure and tight connection.
Function and Installation
Their primary function is to connect pipes or fittings in a pipeline system. The self - tapping feature eliminates the need for pre - drilling holes, which simplifies the installation process. Installers can directly screw the ferrule straps onto the pipes, saving time and effort. When it comes to the pack joint nut, during installation, the pipe is first inserted into the appropriate position within the ferrule straps. Then, the pack joint nut is tightened. As it is tightened, it compresses the ferrule around the pipe, creating a leak - proof and stable connection. This compression action ensures that the pipes are held firmly in place, even under high - pressure or high - flow conditions.
Applications
These bronze self - tapping ferrule straps with pack joint nuts are widely used in various applications. In plumbing systems, they can be used for connecting water supply pipes, both in residential and commercial buildings. They are also suitable for use in industrial piping systems that carry fluids such as chemicals, oil, or gas, provided the media is compatible with the bronze material. Their versatility and reliability make them a popular choice among installers and engineers when it comes to creating efficient and long - lasting piping networks.
