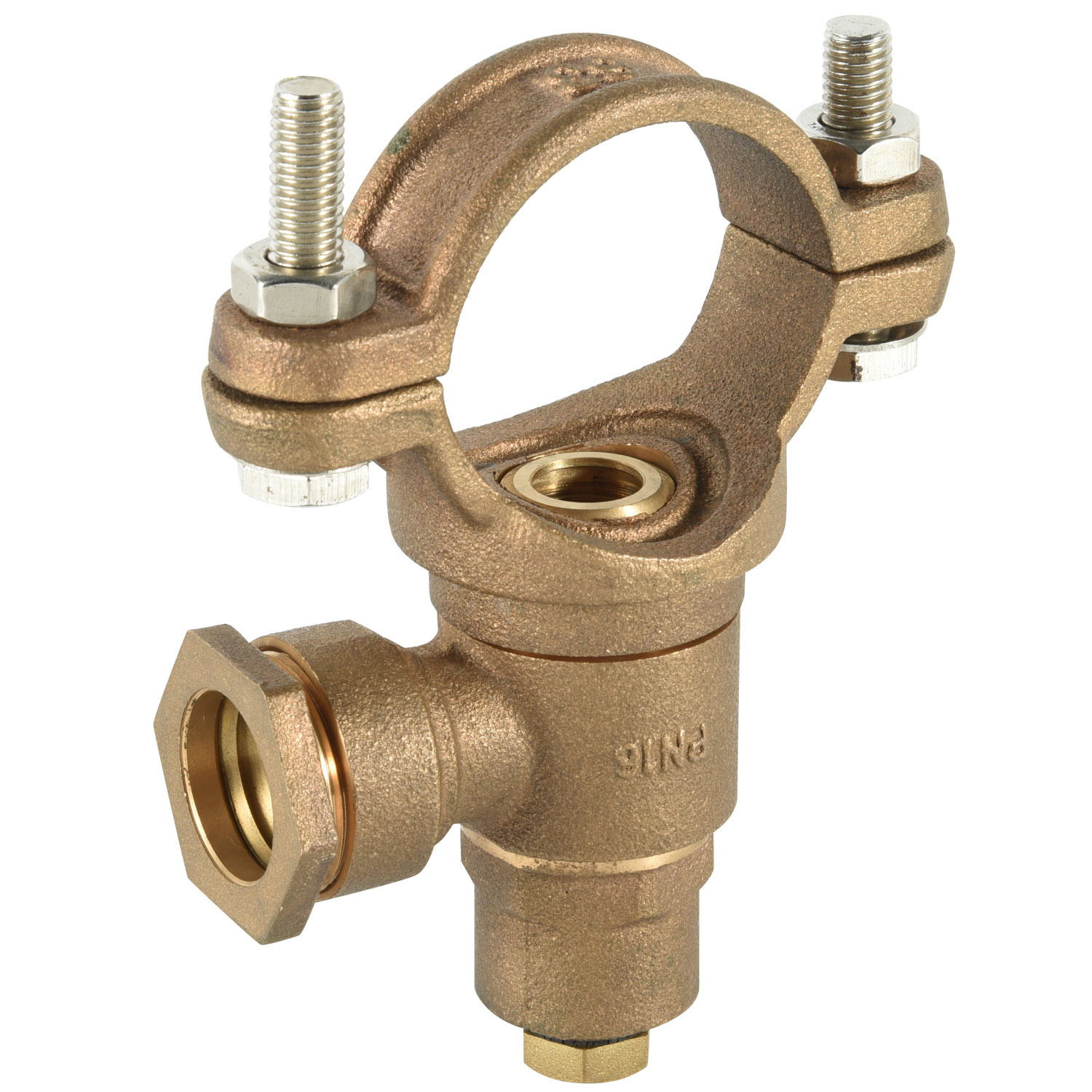

Bronze self-tapping ferrule straps with compression end （NR-F008）

Product name: Bronze self-tapping ferrule straps with compression end （NR-F008）

Our Bronze Self-Tapping Ferrule Straps with compression end with inner cutter is a type of fastening system that utilizes bronze straps equipped with self-tapping ferrules. These straps are designed to create secure, compression end, primarily used in applications requiring high durability and corrosion resistance.

Model:
NR-F008
Brand:
Raising
Unit price:

Quantity:
Availability:





Inquire Add to Basket

Gunmetal ferrule straps with compression connection bronze self-tapping ferrule with compression end bronze self-tapping ferrule straps with compression connection bronze self-tapping ferrule straps compression end bronze self-tapping ferrule straps

Technical Standard

Specifications of Bronze Self-tapping ferrule straps with compression end

Model:NR-F008	Material	Gunmetal,bronze C83600,C84400,lead free bronze C89833,C87850
	Working Medium	Water
	Working Pressure	16 bar
	Working Temperature	-20°C to 120°C
	Size Range	Banjo size:1/2"x20mm.3/4"x25mm,1"x32mm Straps size:63/90/110/160/225/325mm
	Connection type	Thread(BSP.NPT)
	Production method	Casting + machining
	Standard Ref	BS1400 LG2

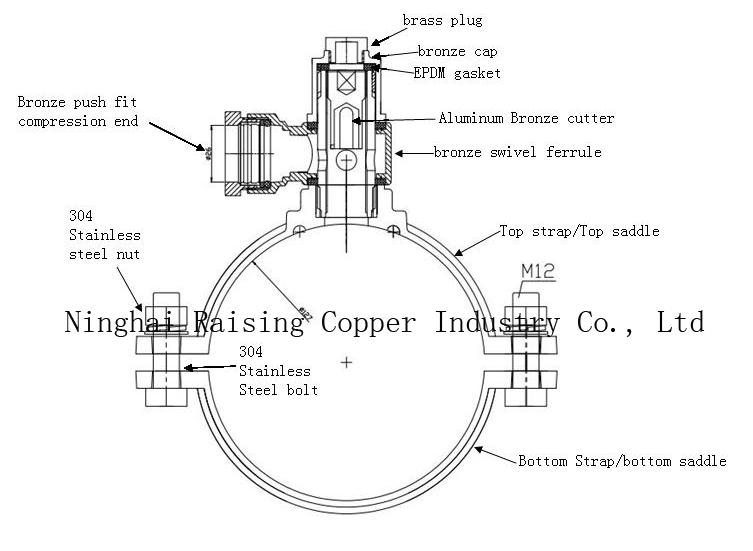

COMPRESSION

Product Advantage:

1. Durability and Corrosion Resistance: Made from high-quality bronze, these straps offer exceptional durability and resistance to corrosion. This ensures long-term performance and reliability, even in harsh environments.

2. Self-Tapping Capability: The self-tapping feature of the ferrule straps with inside cutter allows them to drill a hole on main pipe. This eliminates the need for pre-threaded holes, saving time and simplifying the installation process.

3. Secure compression end: The compression end design provides a secure and stable connection. The straps are tightened to create a compression connection end that resists leakage and ensures the integrity of the connection.

4. Versatility: These straps can be used with a variety of pipe materials and sizes, making them versatile for different applications. They are suitable for both plastic and metal pipes, offering a flexible solution for various piping systems.

5. Ease of Installation: The compression connection end type design simplifies the installation process. The straps can be easily tightened to create a secure connection, reducing the need for complex tools or procedures.

Our Bronze Self-Tapping Ferrule Straps compression connection end Type offer durability, self-tapping capability, secure packed joints, versatility, ease of installation, and cost-effectiveness. These advantages make them an excellent choice for various piping applications.
