NR-L010
Raising
| Quantity: | |
|---|---|

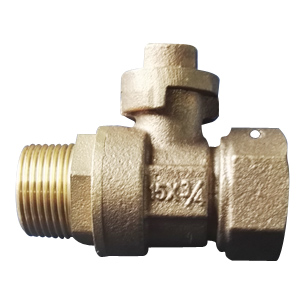

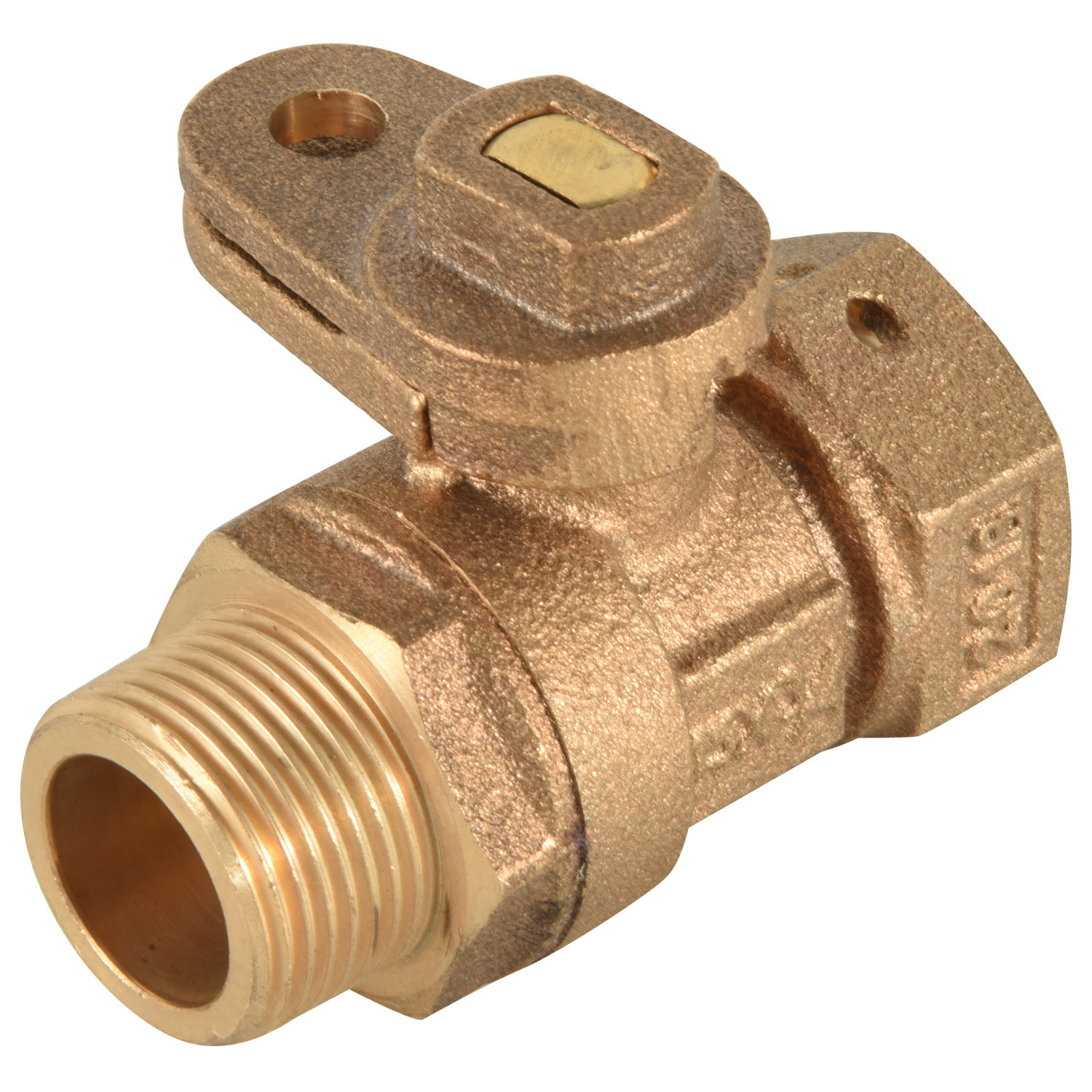

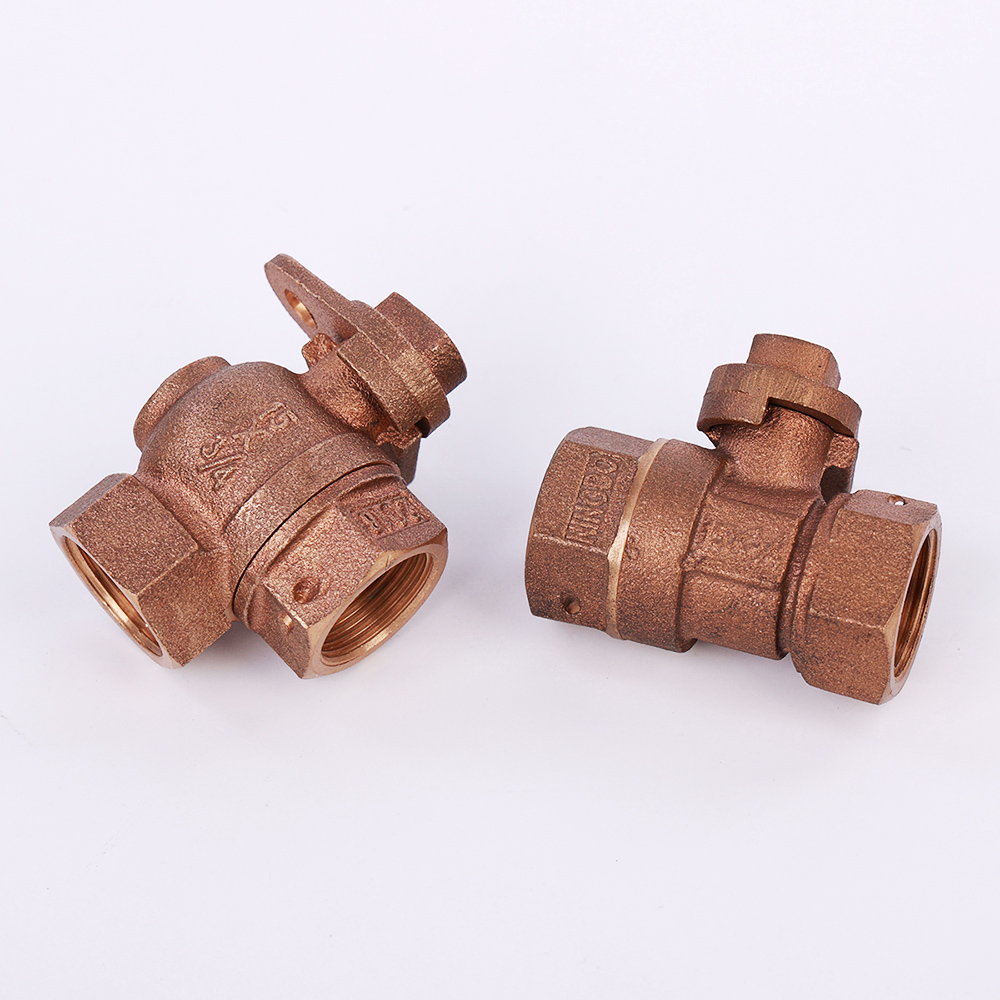

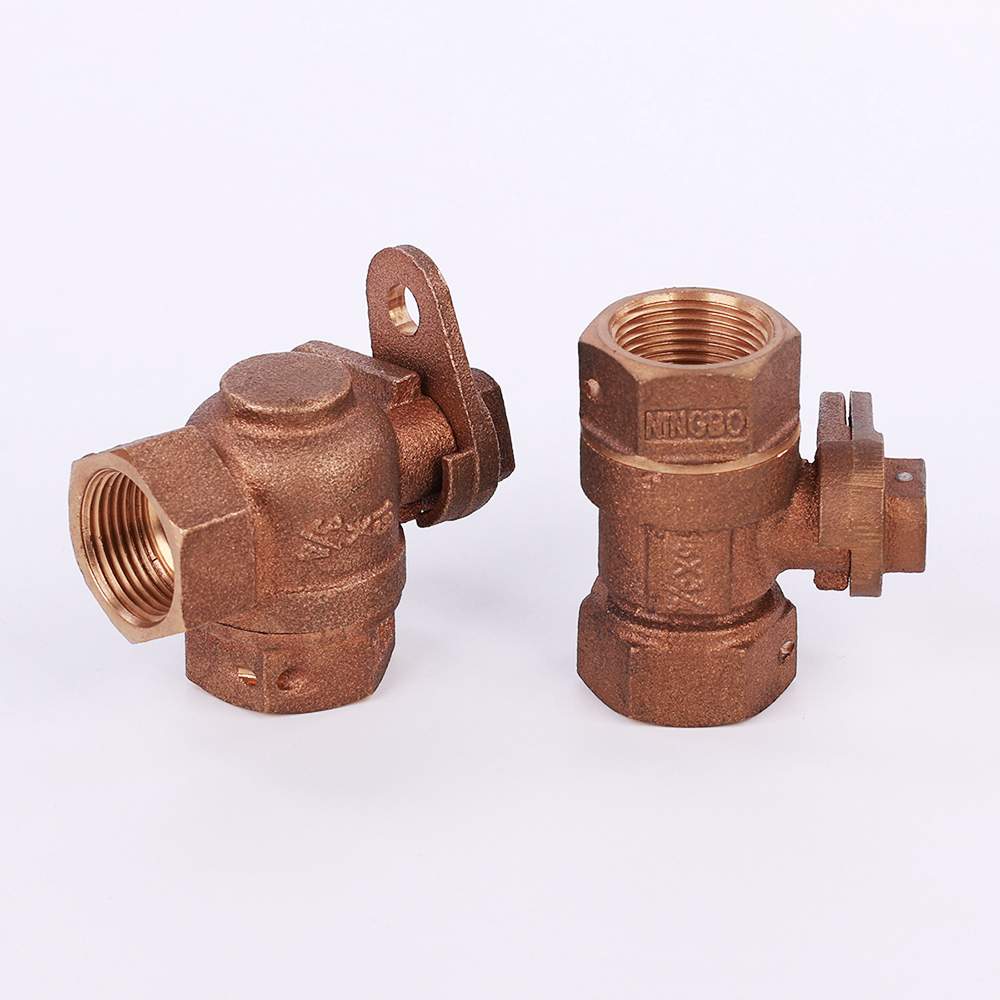

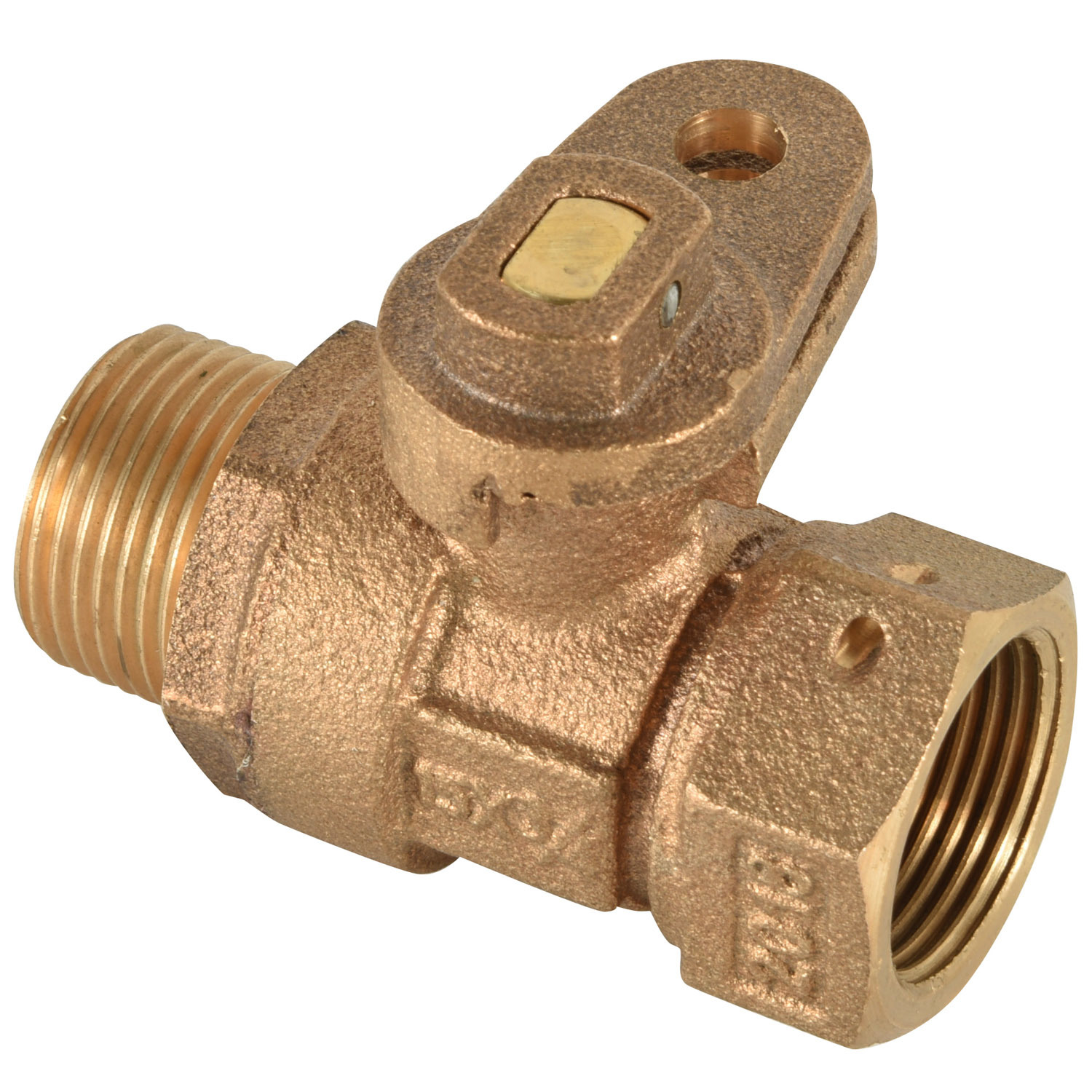

Bronze Lockable Ball Valve Specifications
Model:NR-L010 | Technical Standard | ||||
| Material | Gunmetal,bronze C83600,C84400,lead free bronze C89833,C87850 etc | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | DN15 X 3/4" X 3/4" | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Casting+ machining | ||||
| Standard Ref | EN12165.EN13828 BS21 | ||||
Product Advantage:
Bronze Straight Ball Valve with Lockwing – a heavy-duty valve that lets you control water, oil, or gas flow with a simple 90-degree turn. Made of bronze (rust-resistant and durable), it has a straight design for smooth flow and a "lockwing" lever that locks the valve in the open or closed position to prevent accidental changes.
Key Features:
Tough & Reliable: Bronze body handles high pressure and resists corrosion.
Locking Lever: The lockwing keeps the valve securely open or closed – no accidental bumps or tampering.
Full Flow: Straight design minimizes flow restriction when fully open.
Easy Operation: Turn the lever 90 degrees to start or stop flow instantly.
Common Uses:
Industrial plumbing (water, gas, oil systems).
Marine equipment (saltwater-resistant).
Heating systems, pipelines, or machinery requiring secure flow control.
In short: A no-nonsense valve that’s built to last, locks in place, and gives you total control with a quick flick.
