NR-F006
Raising
| Quantity: | |
|---|---|
Model:NR-F006 | Technical Standard | ||||
| Material | Gunmetal,bronze C83600,C84400,lead free bronze C89833,C87850 | ||||
| Working Medium | Water | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | Banjo size:1/2"x20mm.3/4"x25mm,1"x32mm Straps size:63/90/110/160/225/325mm | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Casting + machining | ||||
| Standard Ref | BS1400 LG2 | ||||
Product Advantage:

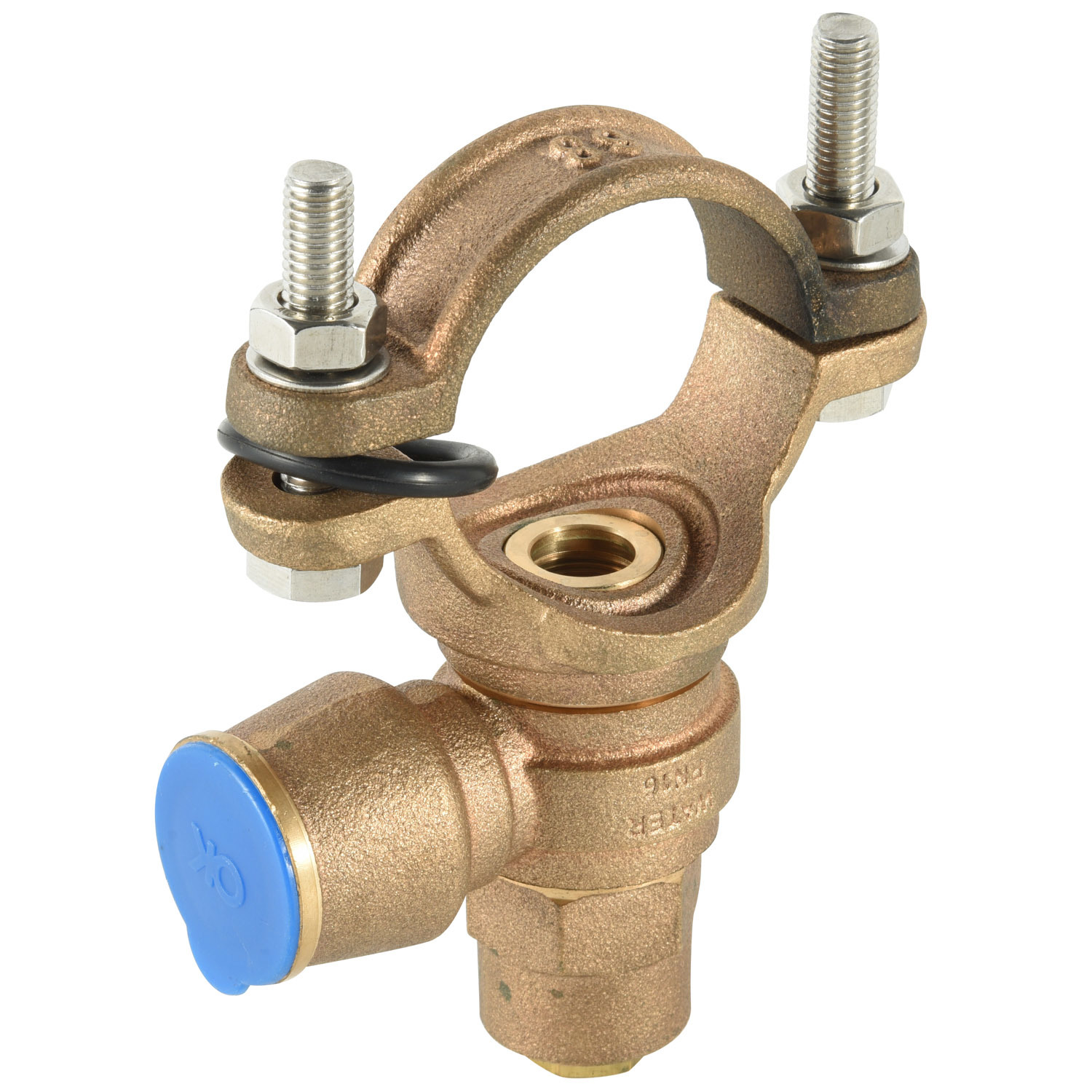

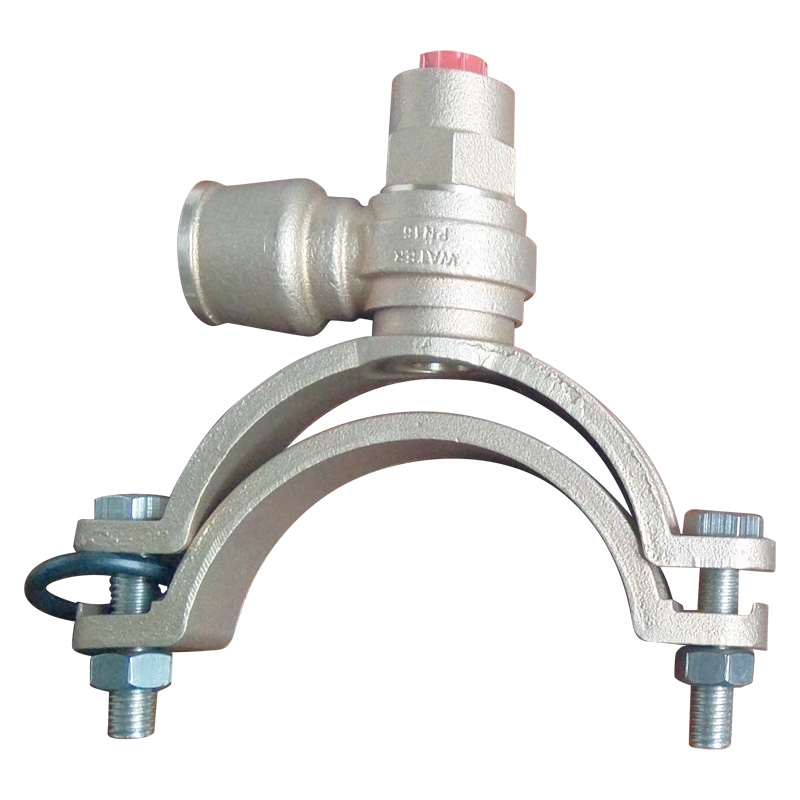

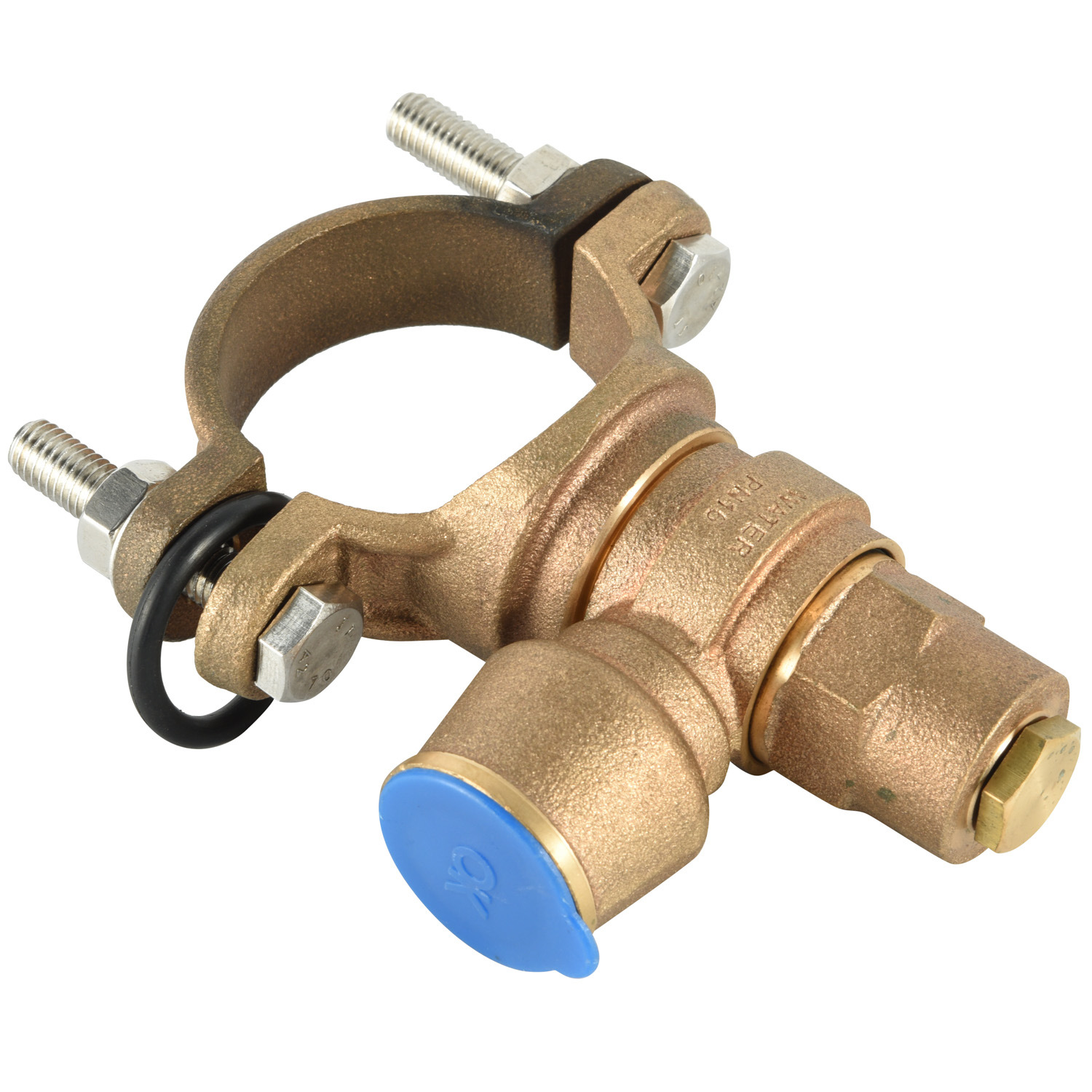

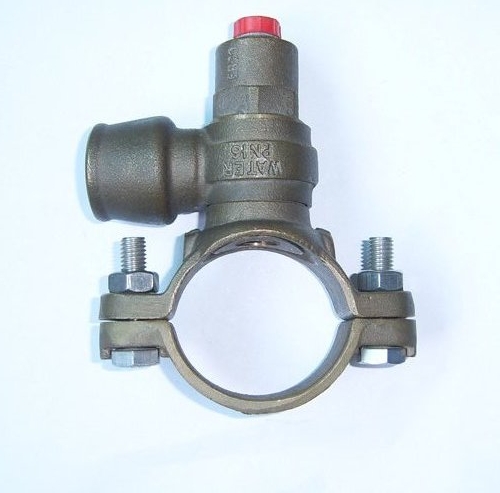

Gunmetal Self Tapping Ferrule Straps for PE, PVC and
AC pipe incorporate an integral ferrule with a self contained cutter,
eliminating the need for drilling machines. Self Tapping Ferrule
Straps are made from gunmetal bronze to BS 1400 LGL making the
product durable and corrosion resistant. The Self Tapping Ferrule
Strap also uses a specially designed cutter, which greatly reduces the
risk of bursting a PVC main or creating a swarf blockage whilst cutting.
The Self Tapping Ferrule Strap is capable of working at pressure up to
18 bar without leakage.
• No Special Equipment or Controlled Conditions Needed
The fitting has an integral cutter and requires only a spanner and
standard ferrule key to install and carry out the drilling operation, dry
or under pressure and in wet and congested trench conditions making
it a viable alternative to electro fusion.
• Integral Cutter
The integral cutter is designed to greatly reduce the risk of fracturing
pipe during the drilling procedure. Its design also reduces the chance
of swarf blockage whilst tapping by retaining the polyethylene/PVC
slug. The cutter also provides a shut off facility once the tapping has been made
