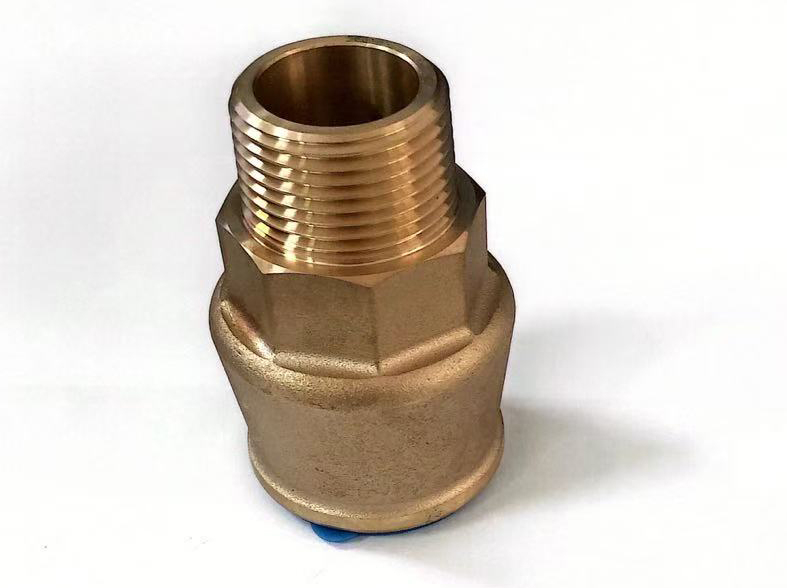

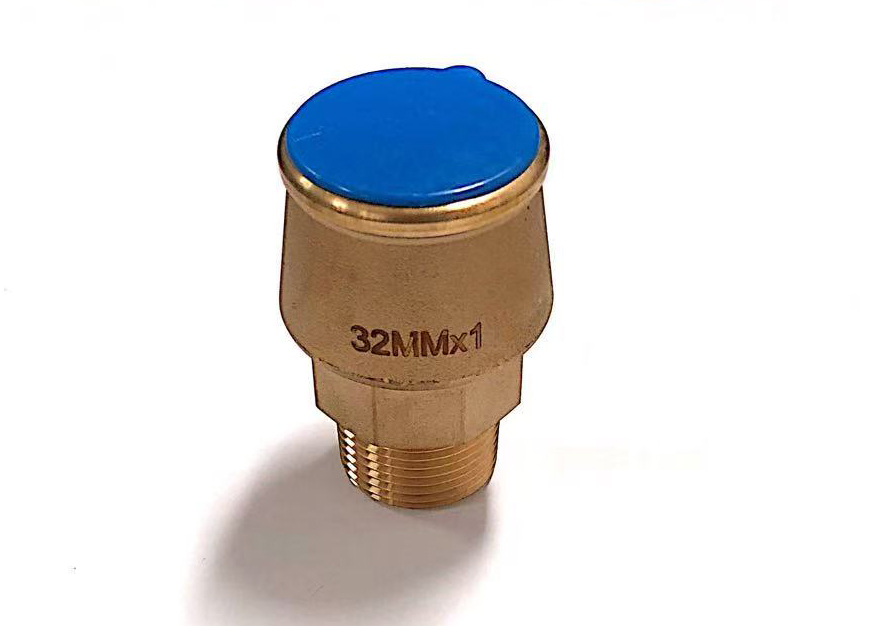

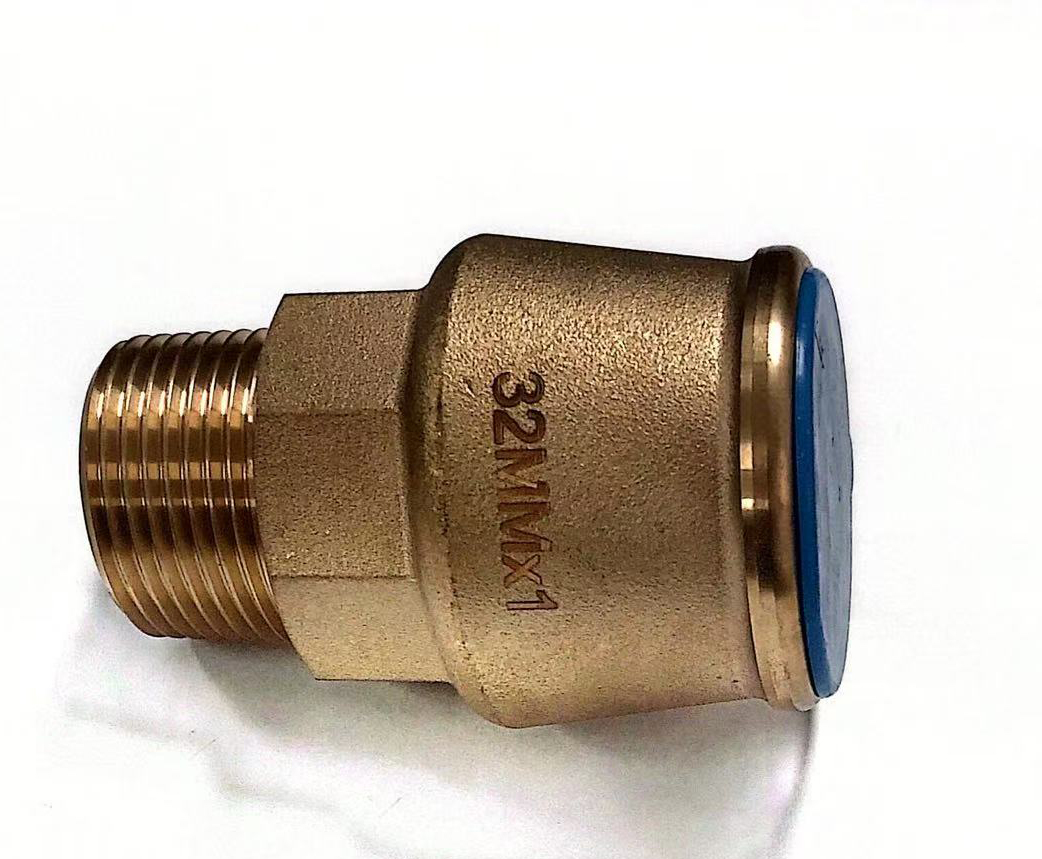

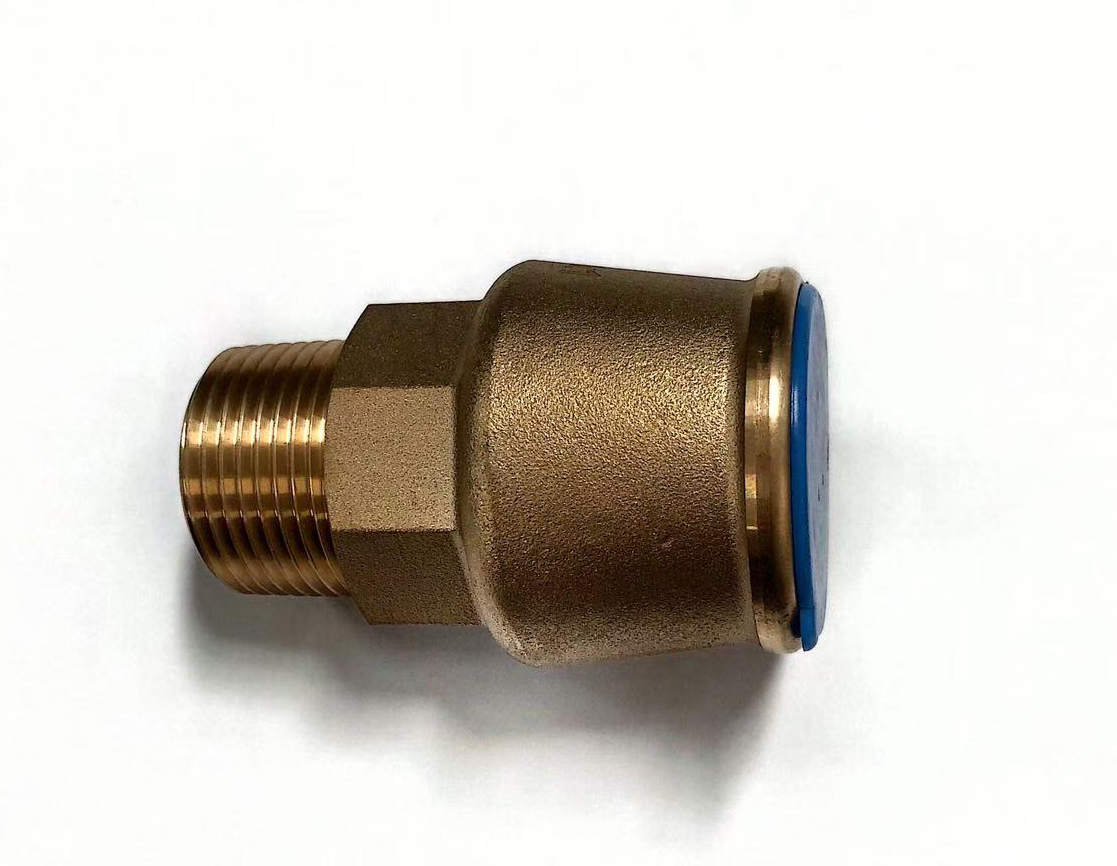

Gunmetal pushfit male adaptor connect with PE pipe（NR-F015）

Product name: Bronze male adaptor pushfit connection end（NR-F015）
Our Bronze adaptor Pushfit Type is an innovative and efficient piping solution designed for quick and secure connections. Crafted from high-quality bronze, these straps offer durability and corrosion resistance, making them suitable for a wide range of applications and environments.
The pushfit design allows for easy installation without the need for complex tools or extensive labor. Simply push the adaptor onto the pipe and tighten it to create a secure and leak-proof connection.
These banjos are ideal for use with a variety of pipe materials, including plastic and metal pipes. They provide a reliable and strong connection that can withstand high pressures and temperatures, ensuring the integrity and safety of your piping system.

Model:
NR-F015
Brand:
Raising
Unit price:

Quantity:
Availability:





Inquire Add to Basket

Gunmetal male adaptor bronze male adaptor for PE pipe Brozne pushfit adaptor connect with PE pipe Gunmetal quick coupling

Technical Standard

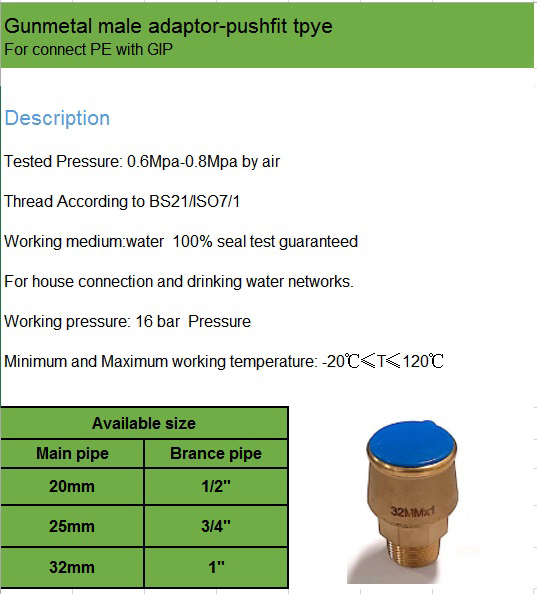

Specifications of Bronze male adaptor pushfit connection

A bronze adaptor push - fit connection is a type of plumbing or piping connection component.

20mm,25mm and 32 mm Push Fit Gunmetal adaptor

Bronze/gunmetal pushfit adaptor connect with PE pipe
Pushfit adaptor made of cast gunmetal to BS1400 LG2 cast,with plastic grip ring,EPDM rubber O ring seal , push fit connection for HDPE pipe.Aceta

Material:

Bronze can be C83600,LG2, B62 and C84400,etc.

Testing Pressure:100% tested with 0.6MPa - 0.8MPa by air.

Simple and quick installation
Technical specification:
working pressure: 16bar (1.6mpa)

tested pressure: 24bars (2.4mpa)

we are in a position to accept order against customer's samples, specify design, specification.
