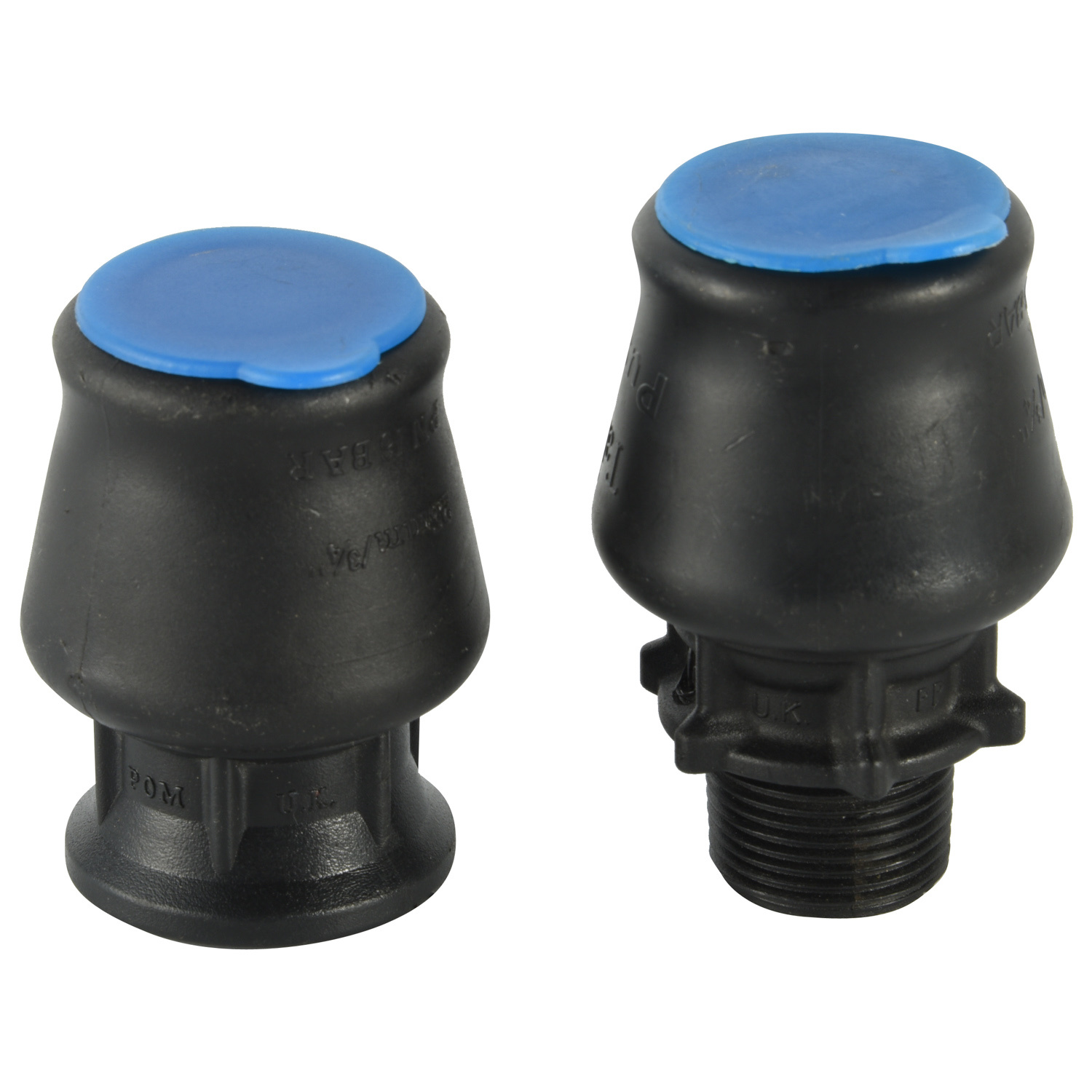

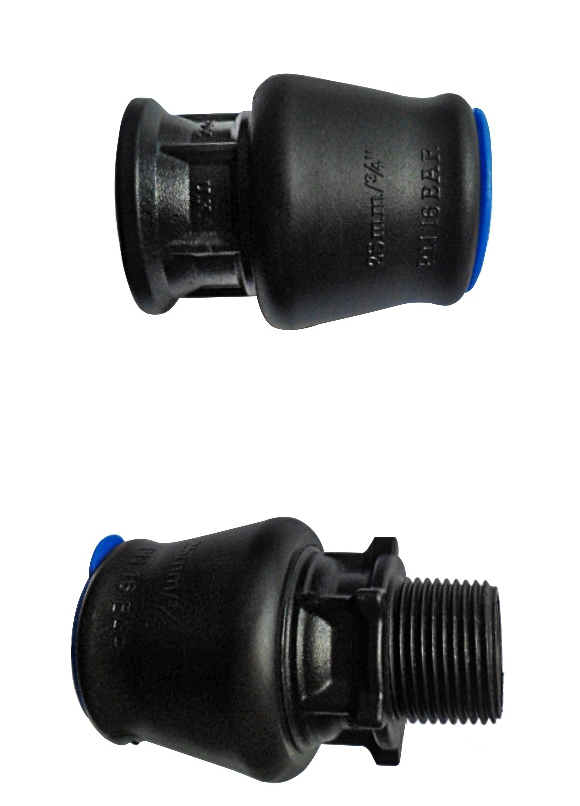

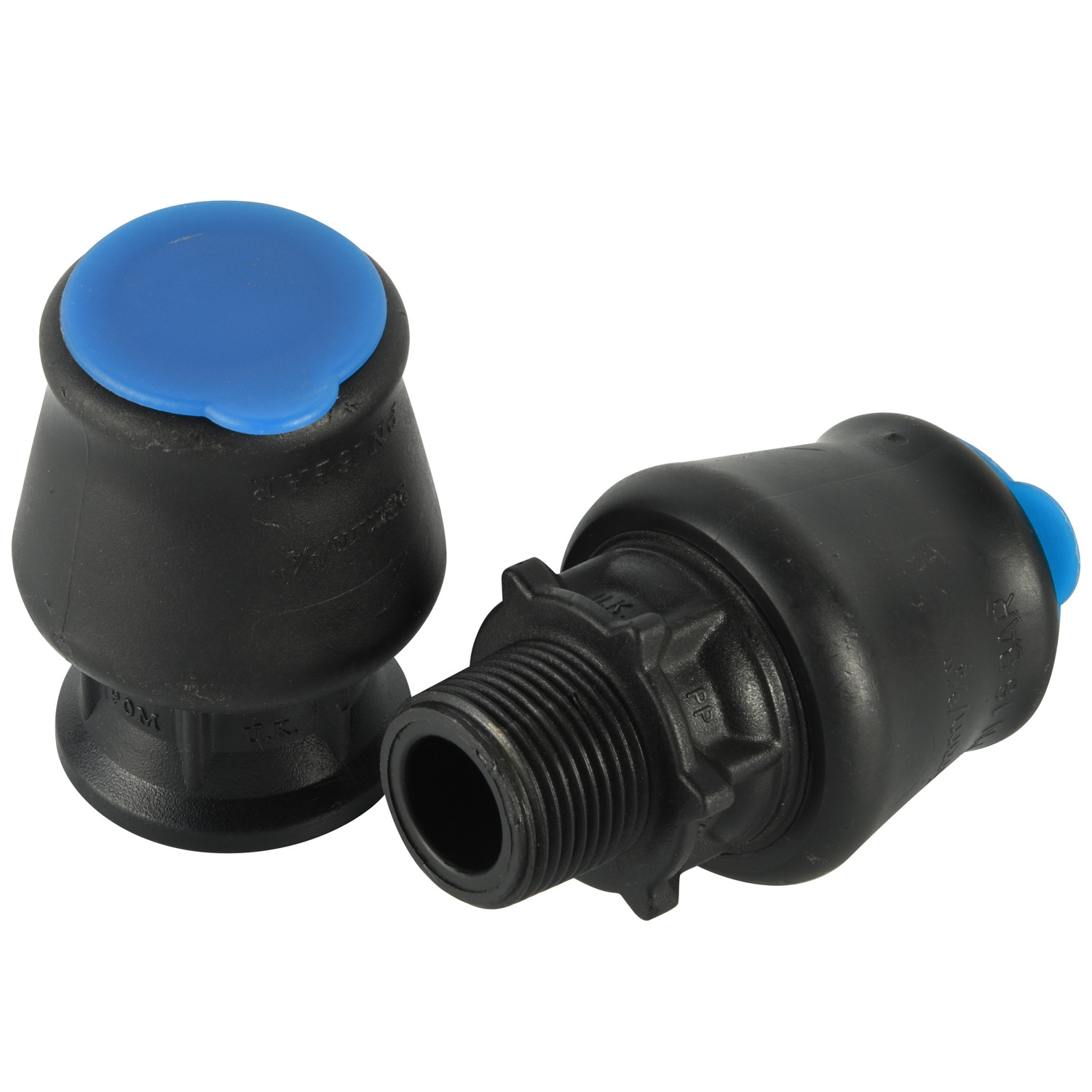

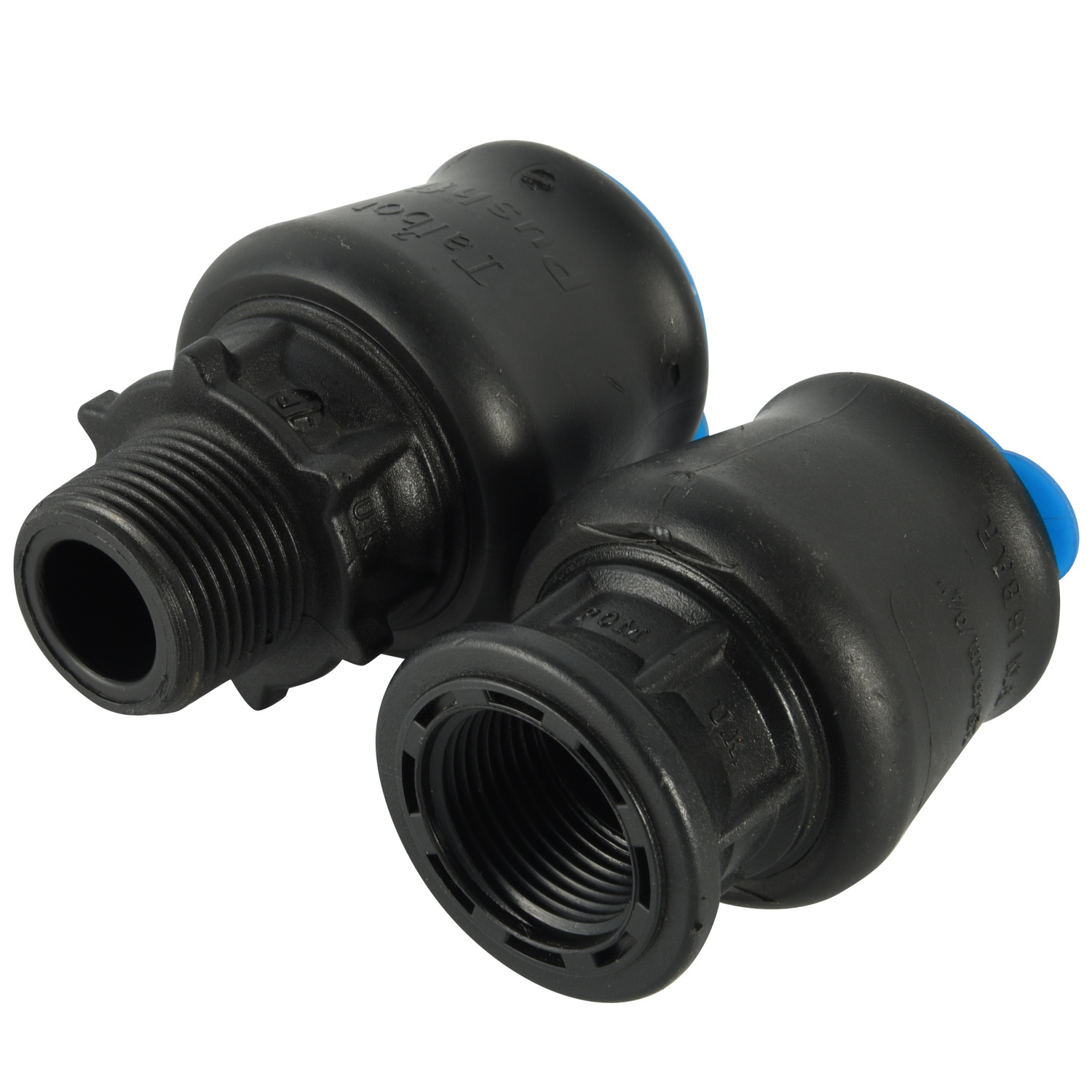

Plastic pushfit male and female adaptor for PE pipe NR-P002

Our Pushfit fittings are quick and easy to use, with no nuts to loose or leave undone. Simply push the pipe into the fitting, The grip and seal on the pipe increases with pressure and tensile load so that the pipe will burst or neck before the fitting will fail.All materials used with our pushfit fitting can contact with potable water .

Model:
NR-P002
Brand:
Raising
Unit price:

Quantity:
Availability:





Inquire Add to Basket

Plastic pushfit male adaptor Plastic pushfit female connector Plastic pushfit male coupling Plastic pushfit straight female pushfit connector

Technical Standard

Specifications of Plastic pushfit adaptor for PE pipe

Model:NR-P002	Technical Standard
	Material	Plastic
	Working Medium	Water
	Working Pressure	16 bar
	Working Temperature	-20°C to 120°C
	Size Range	1/2" x20mm,3/4"x25mm
	Connection type	Pushfit type
	Production method	Pressure Casting + machining
	Standard Ref	ISO3458,3459,3501,3503

Advantages of Pushfit male and female adaptor

The connections grip and seal on the pipe increases with water pressure and tensile load so that the pipe will burst or neck before the connection will fail.

Pushfit connects to metric PE pipes

and their imperial equivalents including heavy gauge and most normal gauge sizes as well as lead pipe.

Pushfit fittings are manufactured from high performance materials for resistance to distortion and corrosion and for strong threaded connections.
