NR-P001
Raising
| Quantity: | |
|---|---|

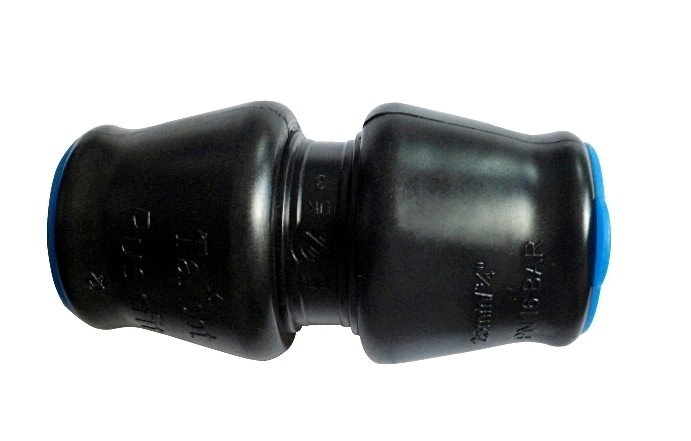

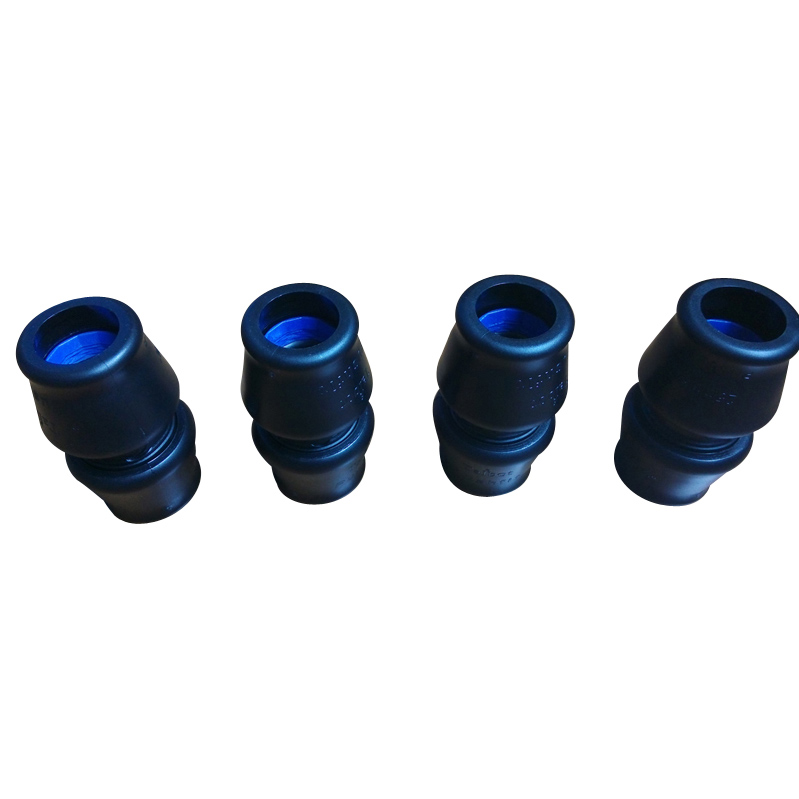

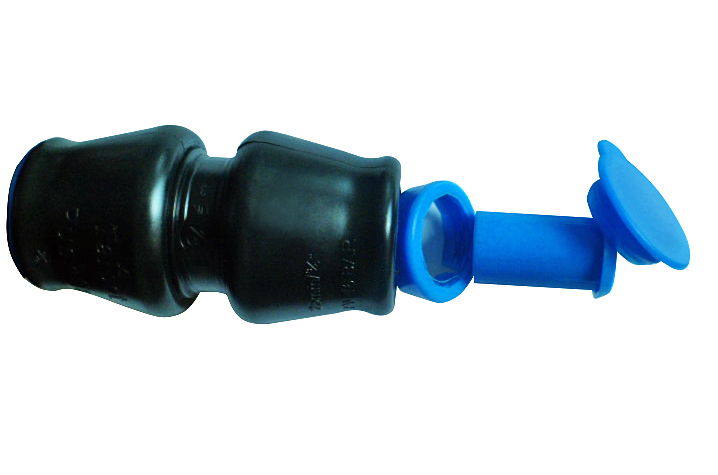

Specifications of Plastic pushfit adaptor for PE pipe
Model:NR-P001 | Technical Standard | ||||
| Material | Plastic | ||||
| Working Medium | Water | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | 20 x20mm,25x25mm | ||||
| Connection type | Pushfit type | ||||
| Production method | Pressure Casting + machining | ||||
| Standard Ref | ISO3458,3459,3501,3503 | ||||
Design and Structure
It features a unique push-fit design that allows for easy installation without the need for special tools or complex procedures. The connector typically consists of a body made from high-quality materials such as brass or stainless steel, ensuring durability and resistance to corrosion.

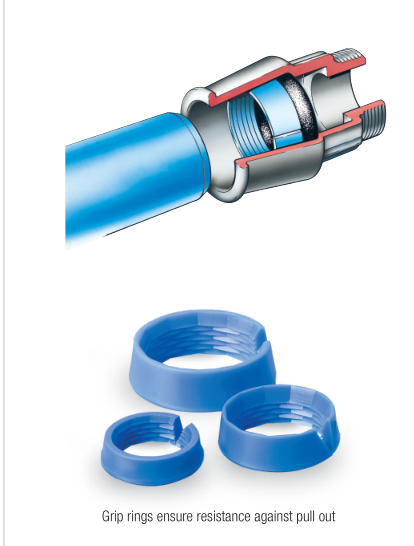

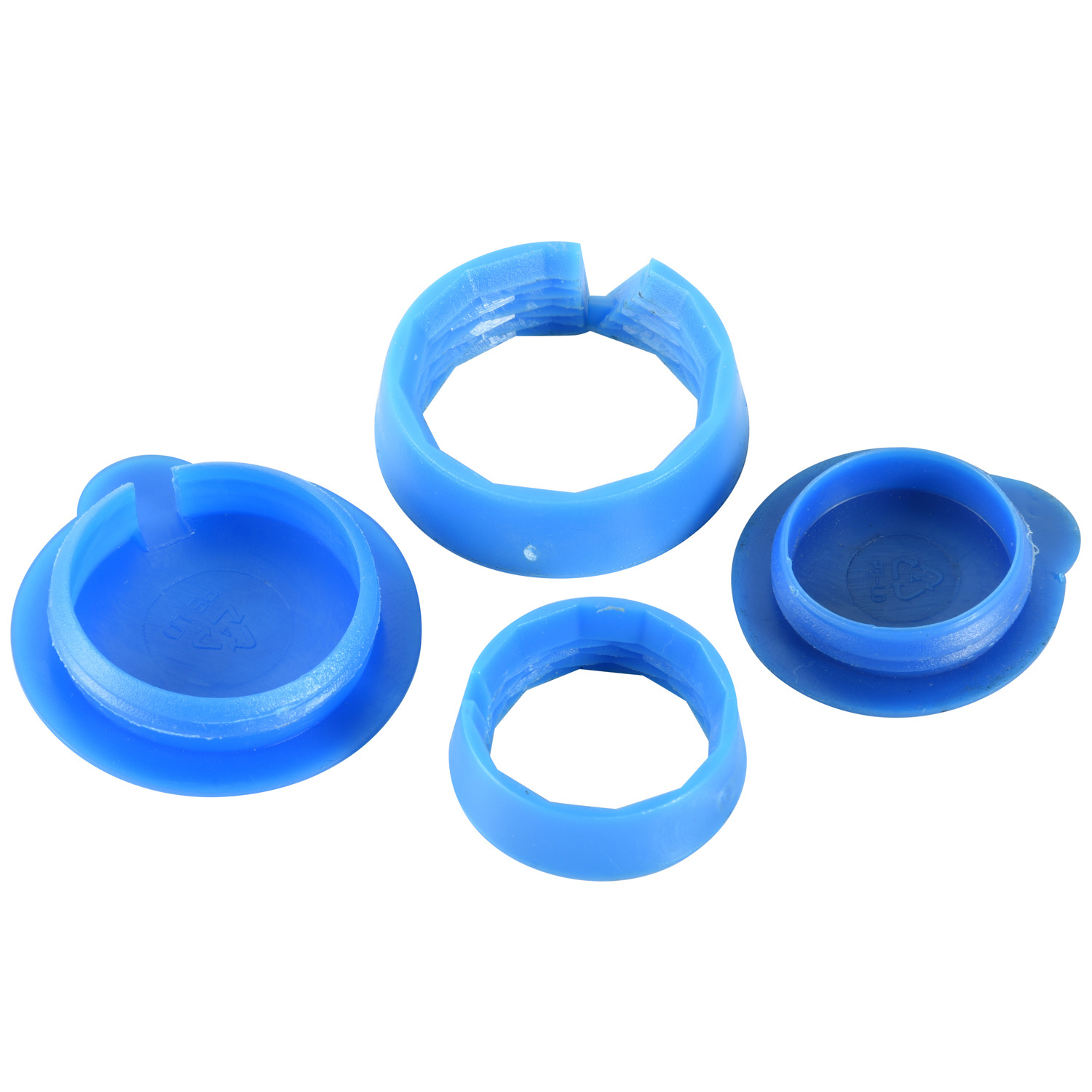

Inside the connector, there is a precision-engineered gripping mechanism and an O-ring or gasket. The gripping mechanism is designed to firmly hold the pipe in place, while the O-ring provides a tight seal to prevent any leakage.
Function and Performance
The pushfit operation is straightforward. Simply insert the pipe into the connector until it clicks into place, and the connector's internal components will automatically grip the pipe and create a seal. This design enables rapid installation, significantly reducing installation time and labor costs compared to traditional connection methods.
The Talbot pushfit connector offers excellent pressure resistance, capable of withstanding high-pressure applications in various plumbing and piping systems. It maintains a reliable and stable connection even under extreme temperature conditions and frequent pressure fluctuations.
Versatility
It is highly versatile and can be used with a wide range of pipe materials, including copper, PEX, and plastic pipes. This makes it suitable for various applications such as in residential and commercial plumbing systems, heating systems, and even some industrial fluid transfer applications.
Available in different sizes and configurations to meet different piping requirements, providing flexibility in system design and installation.
In summary, the Talbot pushfit connector is a top-of-the-line connection solution that combines ease of use, reliability, and versatility, making it an ideal choice for professionals and DIY enthusiasts alike in the plumbing and piping industry.
