In the realm of fluid control systems, valves play a pivotal role in regulating the flow and pressure of liquids and gases. Selecting the appropriate valve is crucial for ensuring system efficiency, safety, and longevity. Among the myriad of valve types available, stop valves and gate valves are commonly used in various applications. Understanding the distinctions between these two types is essential for engineers, technicians, and professionals in the field. This article delves into the fundamental differences between stop valves and gate valves, providing a comprehensive analysis to aid in informed decision-making.
For those involved in the installation and maintenance of water supply systems, recognizing the operational nuances of different valves can significantly impact performance outcomes.

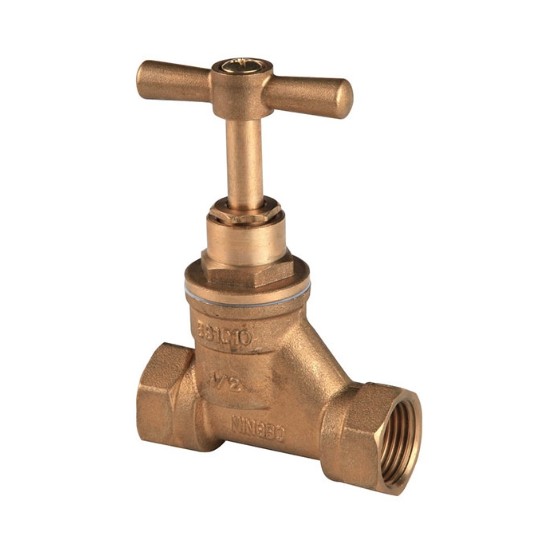

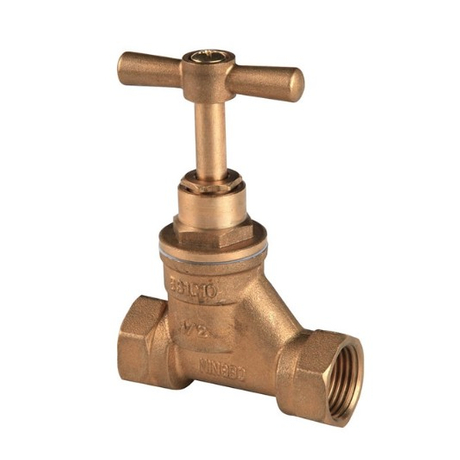

Stop valves, also known as globe valves, are designed to start, stop, and regulate the flow of fluid within a pipeline. The unique construction of a stop valve allows it to throttle flow with precision, making it ideal for applications requiring frequent adjustment. The valve operates by moving a disc or plug against the flow stream, thereby controlling the passage of fluid.
The internal structure of a stop valve consists of a movable disc and a stationary ring seat in a generally spherical body. When the valve handle is turned, the disc moves perpendicular to the flow, either allowing fluid to pass or obstructing it. This perpendicular movement provides a high degree of control over the flow rate, enabling precise regulation.
Stop valves are often constructed from durable materials such as brass, which offers excellent corrosion resistance and longevity. Using a brass valve enhances the valve's performance in various environmental conditions.
Due to their ability to regulate flow, stop valves are commonly used in applications where throttling is necessary. These include domestic water supply systems, fuel oil systems, and fluid power systems. The precise control afforded by stop valves makes them suitable for fine-tuning flow rates and pressures within a system.
Industries that demand high accuracy in fluid control often rely on stop valves. For instance, in chemical processing plants, the ability to adjust flow rates is critical for maintaining reaction conditions. Similarly, in HVAC systems, stop valves help regulate temperature by controlling the flow of heating or cooling fluids.

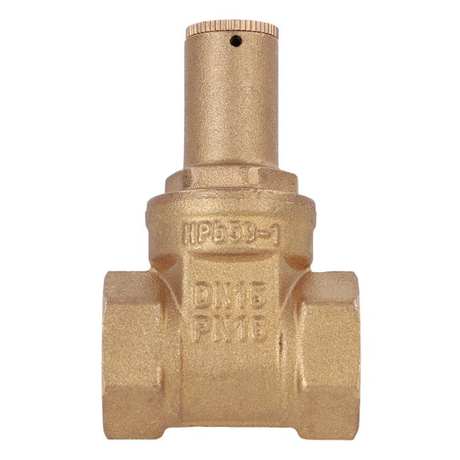

Gate valves, on the other hand, are primarily designed to start or stop the flow of fluid, without the capability to regulate or throttle it effectively. The gate valve operates by lifting a rectangular or circular gate out of the fluid path. This design minimizes pressure drop across the valve when fully open, making it suitable for applications requiring unobstructed flow.
The gate valve's mechanism involves a gate (or wedge) that moves up and down in response to the rotation of a threaded stem connected to the valve handle. When the handle is turned, the gate either blocks the flow by sitting in the closed position or allows full flow by retracting into the open position. This mechanism is not designed for flow regulation but for isolation purposes.
Gate valves are typically used in systems where the valve remains either fully open or fully closed for extended periods. The materials used in gate valve construction vary, but brass is a common choice due to its durability and resistance to corrosion, making it suitable for both industrial and residential applications.
Gate valves are widely utilized in applications where a straight-line flow of fluid and minimum restriction is desired. They are commonly found in water distribution systems, wastewater treatment plants, and process plants handling viscous fluids. The ability of gate valves to provide a tight seal when closed makes them ideal for isolation purposes.
In the oil and gas industry, gate valves are essential for controlling the flow of crude oil and natural gas. Similarly, in power plants, they are used to manage the flow of steam and feedwater. The robustness of gate valves allows them to function effectively under high-pressure and high-temperature conditions.
Understanding the differences between stop valves and gate valves requires a comparative examination of their operational characteristics, performance under various conditions, maintenance needs, and cost considerations.
The primary operational difference lies in flow control capabilities. Stop valves are designed for throttling and can regulate flow to varying degrees. In contrast, gate valves are unsuitable for throttling due to the potential for gate damage when partially open, leading to vibration and erosion.
Additionally, the opening and closing speed differs between the two valves. Stop valves require fewer turns to operate, providing quicker flow adjustments. Gate valves, involving a longer stem travel, necessitate more turns to fully open or close, which can be a consideration in emergency situations.
In terms of pressure and temperature handling, both valves exhibit different strengths. Gate valves generally perform well under high-pressure conditions due to their design, which allows the gate to withstand substantial force when closed. Stop valves, while capable, may not handle extreme pressures as effectively.
When dealing with viscous fluids or fluids containing particulates, gate valves may be more susceptible to jamming or sealing issues. The linear movement of the gate can trap debris, whereas the design of stop valves allows better handling of such fluids.
Maintenance requirements differ significantly between the two valve types. Stop valves, with their intricate throttling mechanisms, may require more frequent inspection and servicing to ensure optimal performance. The potential for seat and disc wear due to flow regulation necessitates regular maintenance.
Gate valves, being simpler in operation, generally have lower maintenance demands. However, the lack of precise flow control can lead to issues if the valve is misused for throttling purposes. Ensuring that gate valves are used appropriately can mitigate unnecessary maintenance.
From a cost perspective, gate valves are typically more economical than stop valves of equivalent size and material. The simpler design and manufacturing process contribute to lower expenses. However, when considering the total cost of ownership, including maintenance and operational efficiency, stop valves may offer better long-term value for applications requiring flow regulation.
Investing in quality valves from reputable manufacturers, such as a brass valve manufacturer, ensures reliability and durability, potentially offsetting initial cost differences through extended service life and reduced downtime.
Selecting between a stop valve and a gate valve hinges on several factors, including the need for flow regulation, system pressure and temperature, fluid characteristics, and installation environment.
Flow Control Requirements: If precise flow regulation is necessary, a stop valve is the appropriate choice. For applications requiring full open or close positions without flow throttling, a gate valve is suitable.
Pressure and Temperature Conditions: For systems operating under high pressure or temperature, gate valves may offer better performance due to their robust design. However, ensure the valve material is compatible with the operating environment.
Fluid Characteristics: Consider the type of fluid—whether it is clean, contains particulates, or is highly viscous. Stop valves may handle dirty fluids better due to their design.
Space Constraints: Stop valves generally have a shorter face-to-face dimension, which can be advantageous in confined spaces.
Operational Speed: If rapid operation is required, the quicker response of a stop valve may be beneficial.
In municipal water supply systems, gate valves are often used for isolating sections of the network due to their ability to provide tight shutoff and handle high pressures. Conversely, in industrial process control, where modulation of flow is essential, stop valves are preferred for their throttling capabilities.
For irrigation systems requiring directional control of water flow, a three way brass valve might be implemented to efficiently manage distribution, offering both durability and versatility.
Consulting with valve specialists or manufacturers can provide valuable insights specific to your application. They can offer guidance on material selection, valve sizing, and compatibility with existing systems. Leveraging the expertise of professionals ensures optimal valve performance and system integrity.
In summary, the choice between a stop valve and a gate valve is contingent upon the specific requirements of the application. Stop valves offer precise flow control suitable for throttling, whereas gate valves provide reliable isolation with minimal pressure loss when fully open. Understanding the operational characteristics, advantages, and limitations of each valve type is essential for making informed decisions.
Considering factors such as flow control needs, pressure conditions, and maintenance implications will guide you toward the appropriate selection. Partnering with a reputable sprinkler brass valve supplier ensures access to quality products that meet industry standards.
Ultimately, the right valve enhances system performance, safety, and longevity, underscoring the importance of a thorough understanding of valve functions and differences.
