Spec of Brass ball valve with lockable handle
| Technical Standard | ||||
| Material | Brass CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | From 1/2" to 2" | ||||
| Connection type | Thread(BSP.NPT)，Solder (Copper to copper) | ||||
| Production method | Forging + machining | ||||
| Standard Ref | EN12165.EN13828 BS21 | ||||

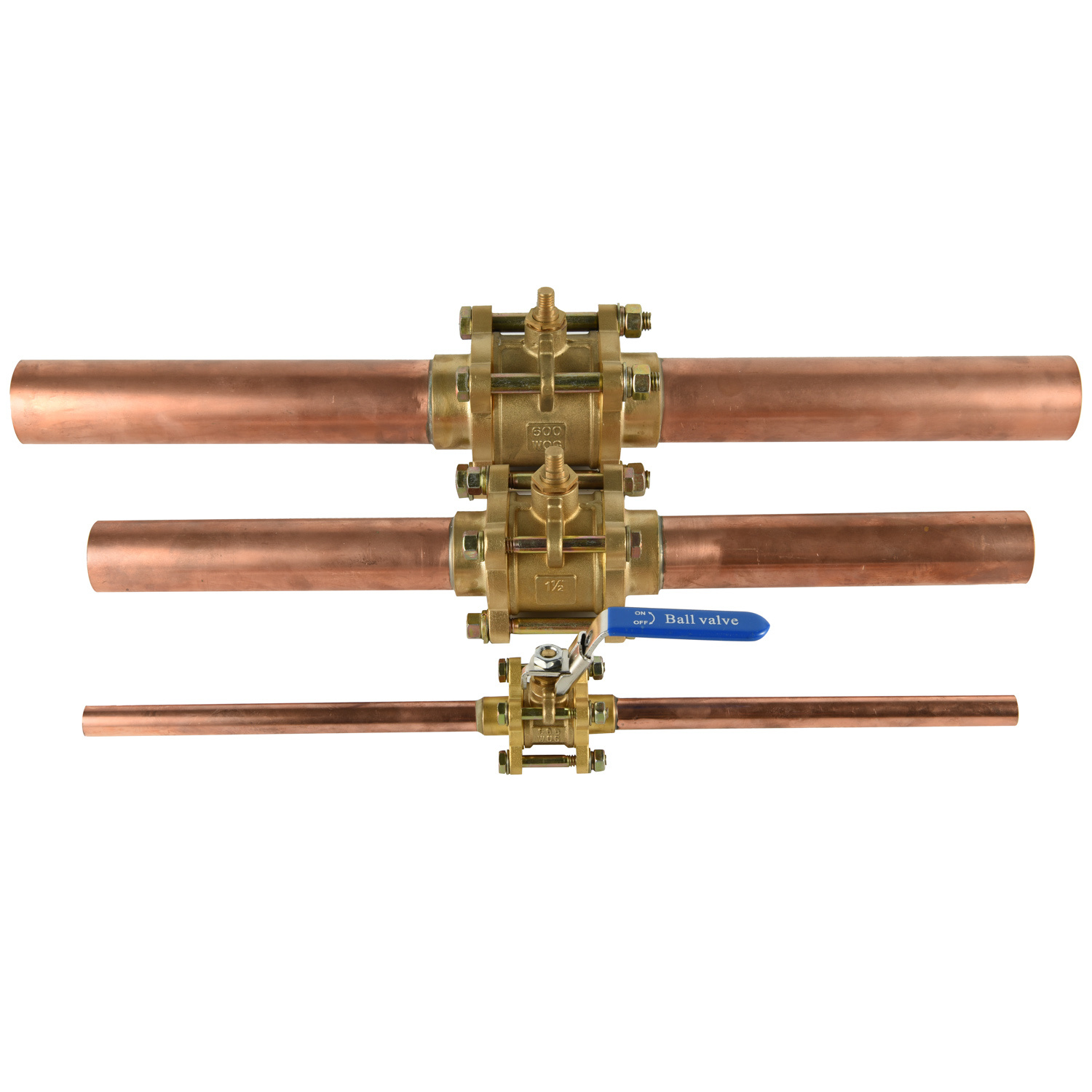

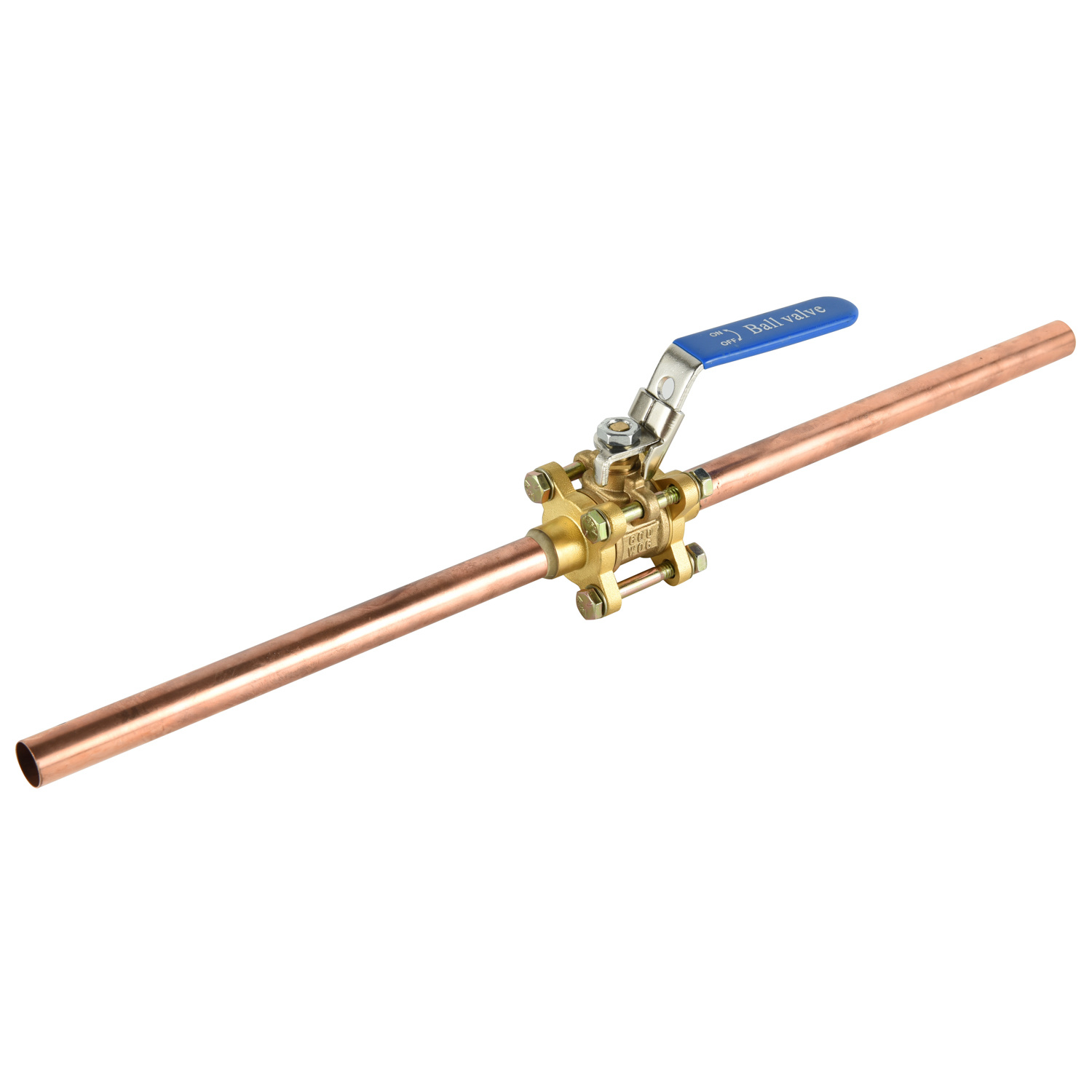

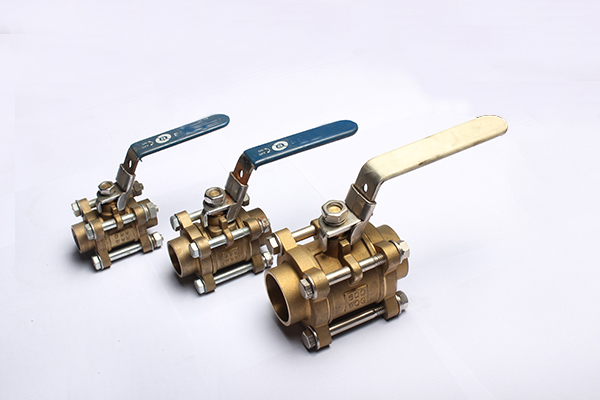

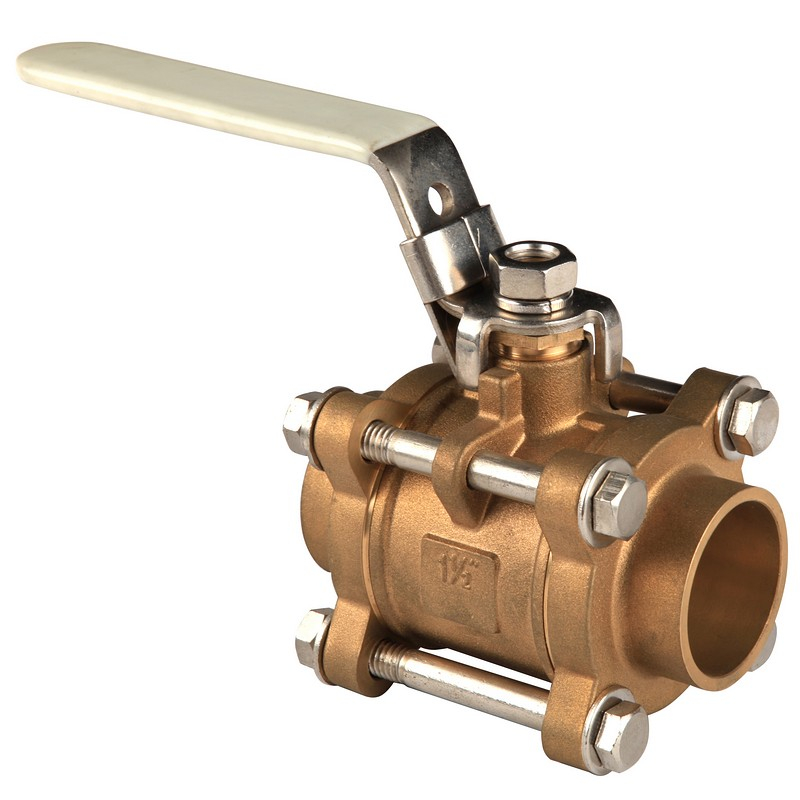

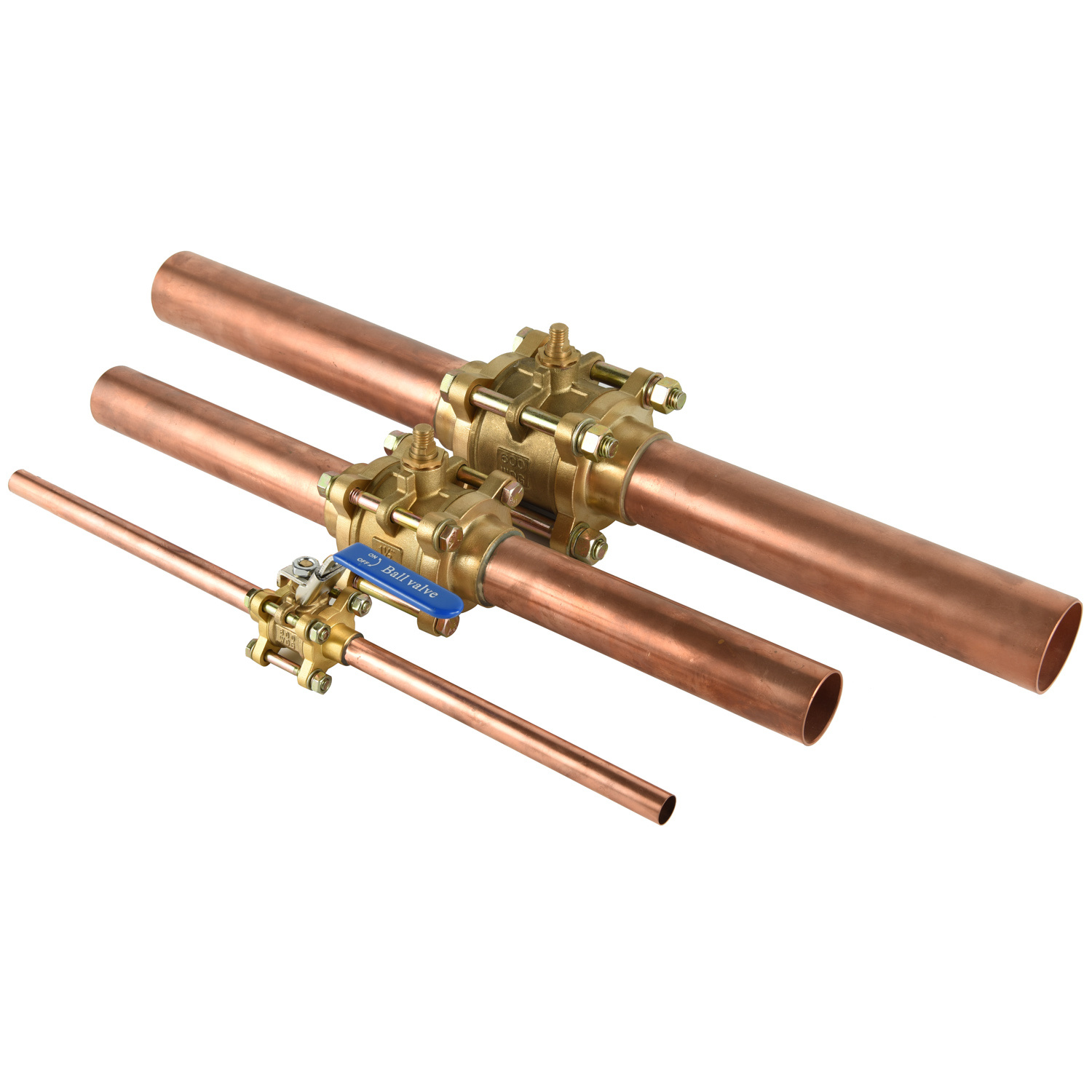

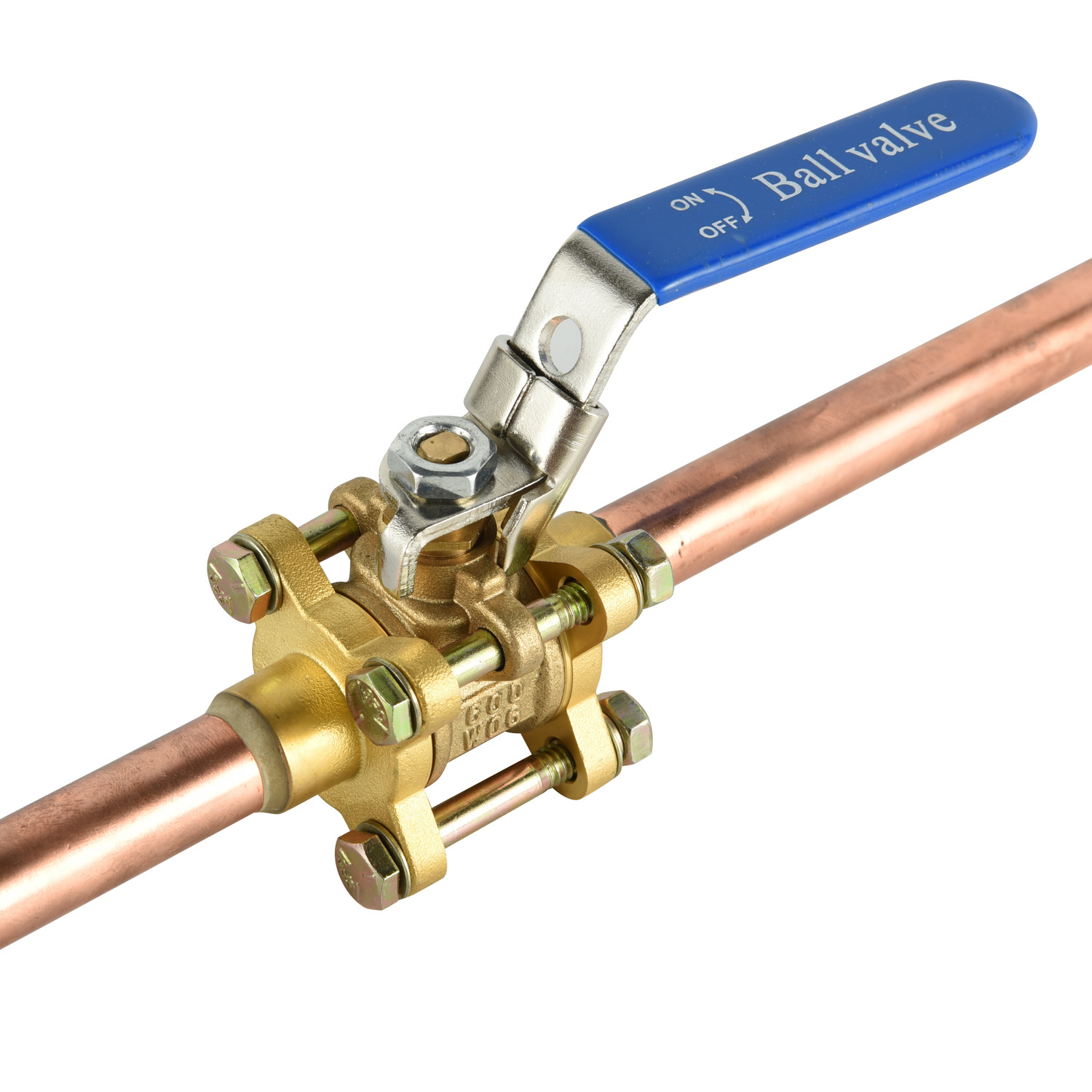

The 3-Piece Brass Ball Valve with Lockable Handle NR-L018 is Raising’s specialized solution for medical gas systems—designed for hospitals, clinics, and pharmaceutical facilities. Its 3-piece construction allows easy disassembly for maintenance, while the lockable handle secures critical gas flow (e.g., oxygen, nitrogen). Made from medical-grade brass (CW617N, HPB59-1, lead-free options), it meets EN12165/EN13828/BS21 standards, operates at 16 bar (-20°C to 120°C), and comes in sizes 1/2" to 2" with thread (BSP/NPT) or solder (copper-to-copper) connections. It balances precision, safety, and durability—essential for medical environments where gas control can impact patient care.
Unlike 1-piece or 2-piece valves, the NR-L018’s 3-piece design lets you disassemble the body without removing the entire valve from the pipe. This is critical for medical facilities, where downtime for gas systems must be minimized—technicians can clean or replace internal parts quickly, ensuring continuous gas supply.
The lockable handle prevents unauthorized adjustments to gas flow, which is vital for patient safety. For example, in an ICU, locking the oxygen valve ensures consistent delivery to patients, avoiding accidental shutoffs or flow changes that could compromise care.
The brass alloys used meet strict medical standards, with lead-free options (C46500, CW511L) available for gas purity. This prevents harmful substances from leaching into medical gases, ensuring compliance with healthcare regulations (e.g., FDA, EU MDR).
The quarter-turn ball mechanism provides exact flow regulation—critical for gases like oxygen, where precise dosages are required for treatment. This reduces the risk of over/under-supply, supporting accurate patient care.
With thread (BSP/NPT) and solder options, the NR-L018 integrates into existing medical gas pipelines. Solder connections are ideal for copper medical piping, ensuring a permanent, leak-proof seal that meets healthcare safety standards.
In operating rooms, ICUs, and general wards, the NR-L018 controls oxygen, nitrogen, and other medical gases. Its lockable handle and compliance with standards ensure patient safety, while the 3-piece design simplifies maintenance during off-hours.
Smaller healthcare facilities (e.g., dental clinics, urgent care centers) use the NR-L018 for dental air or oxygen delivery. It is easy to install, requires minimal maintenance, and fits compact spaces—aligning with clinic workflows.
Pharmaceutical plants use the valve to control gases in drug production (e.g., nitrogen for packaging). Its medical-grade material ensures gas purity, preventing contamination of medications and meeting GMP (Good Manufacturing Practice) standards.
For companies producing or storing medical gases (e.g., oxygen tanks), the NR-L018 regulates gas flow in distribution lines. Its durability and pressure resistance ensure safe, consistent delivery to healthcare clients.
Yes, it complies with EN12165, EN13828, and BS21—standards for medical gas equipment. Lead-free options further align with global healthcare regulations for patient safety.
3-piece valves allow disassembly for maintenance without removing the valve from the pipe. This cuts downtime, which is critical for medical facilities where gas systems cannot be offline for long.
Model:NR-L018
