NR-L007
Raising
| Quantity: | |
|---|---|

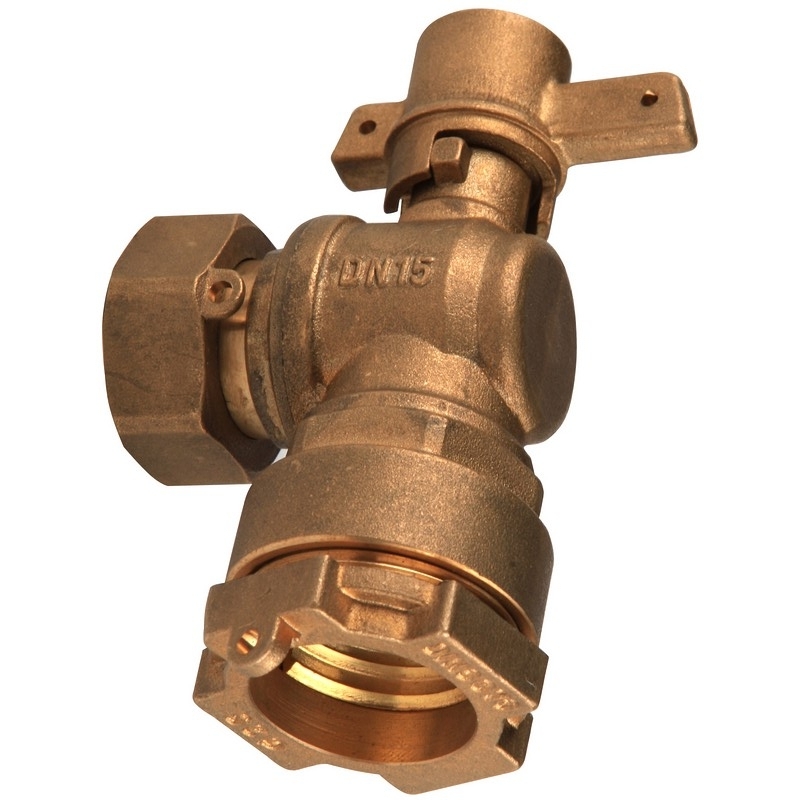

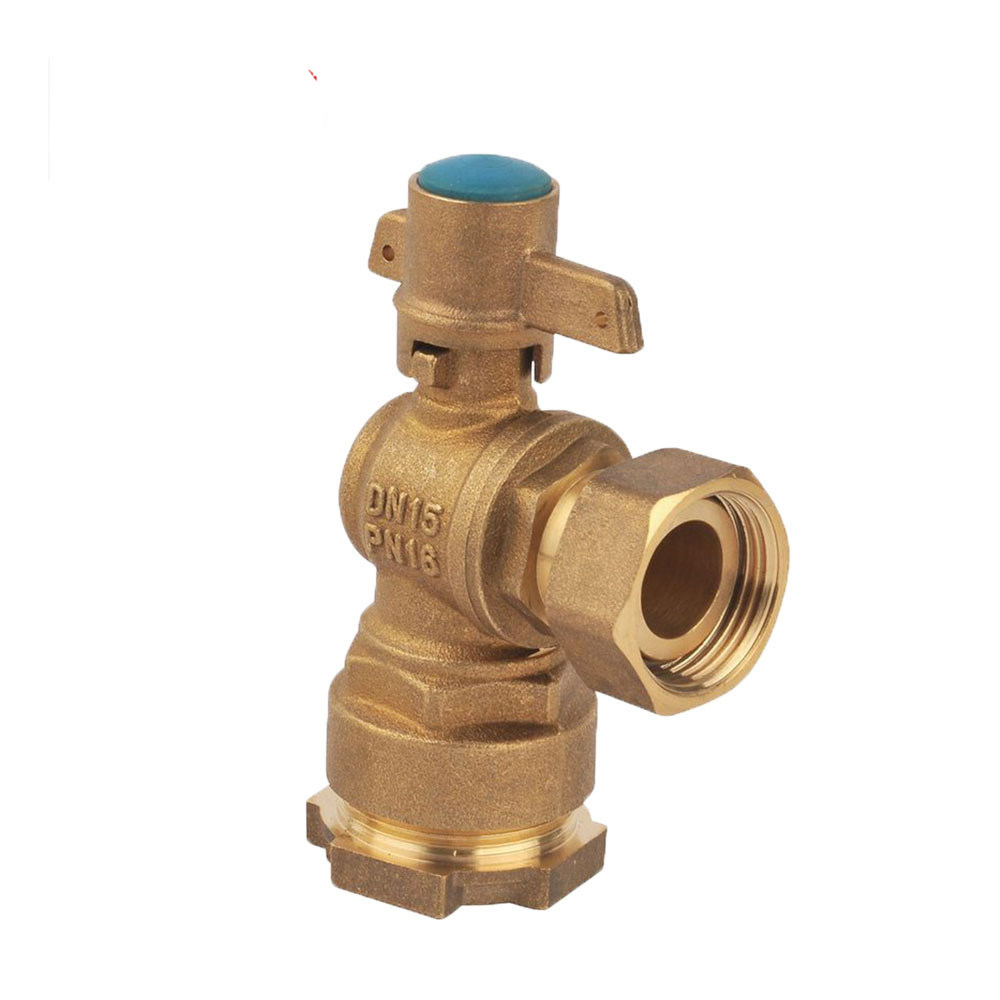

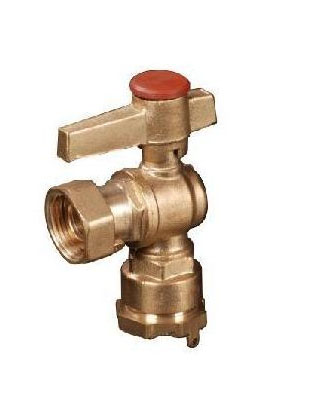

Spec of Brass angle lockable ball valve with Compression end
Model:NR-L007 | Technical Standard | ||||
| Material | Brass CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | DN15x3/4"x20mm DN15x3/4"x25mm,DN15 x 3/4" x 32mm,DN20 x 1" x 25mm,DN20 x 1" x 32mm,DN32 x 1-1/2"x40mm,DN40 x 2" x50mm | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Forging + machining | ||||
| Standard Ref | EN12165.EN13828 BS21 | ||||
Product Advantage:
Premium Brass Build: The valve is constructed from high - quality brass, which not only offers exceptional resistance to corrosion from water and common chemicals in plumbing systems but also has good thermal conductivity. This thermal property helps in maintaining the integrity of the valve in systems with temperature variations, such as hot - water heating systems. The brass material also has a long - lasting finish that resists tarnishing and degradation over time.
Angular Configuration: The angle design of the valve provides a space - saving solution for plumbing layouts. It enables a 90 - degree change in fluid direction, which is ideal for tight spaces or when a more compact pipe arrangement is needed. This design can also help in reducing the overall length of the piping system, minimizing pressure drops and improving the efficiency of fluid flow.
Ball Valve Operation: The ball valve mechanism ensures rapid and reliable flow control. The quarter - turn operation of the handle is intuitive and convenient, allowing for quick shut - off in case of emergencies or for routine maintenance. The spherical shape of the internal ball provides a large flow area when open, facilitating high - volume fluid passage with low resistance.

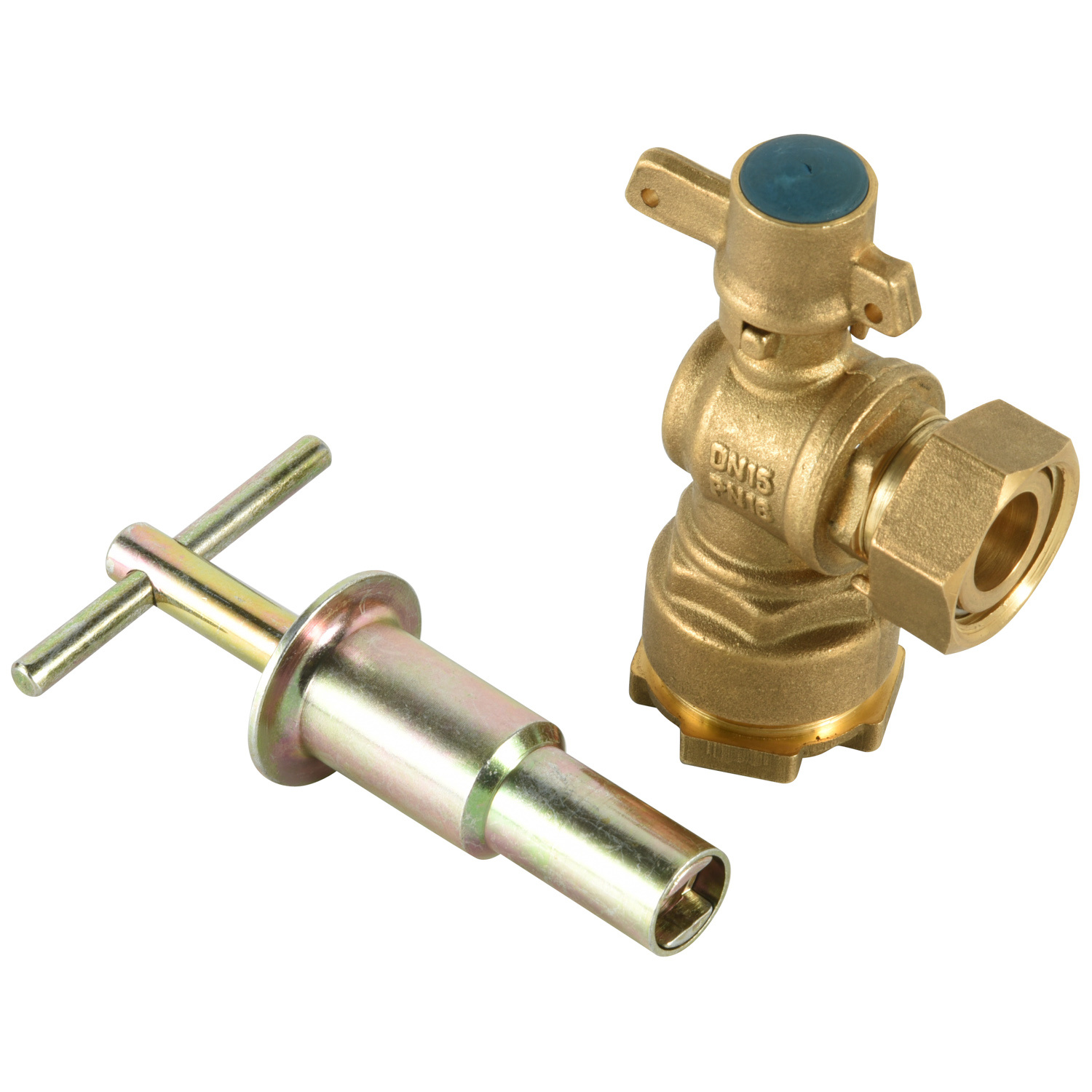

Enhanced Security: The lockable aspect of the valve provides an added layer of security. In multi - user or public settings, it prevents unauthorized individuals from altering the flow of water, protecting against accidental or malicious disruptions to the plumbing system. The locking mechanism is robust and tamper - resistant, ensuring the valve remains in the desired open or closed state as per the system's requirements.
Tool - Free Installation: The compression end connection allows for a tool - free installation process. This is a significant advantage for both professional plumbers and DIY enthusiasts. It reduces installation time and effort, as there is no need for soldering equipment or complex threading tools. The compression fitting securely grips the pipe, creating a leak - proof seal with just a simple tightening of the nut.
Pipe Compatibility and Flexibility: It is compatible with a wide range of pipe materials and sizes within a certain specification. This flexibility makes it suitable for various plumbing projects, whether it's for new installations, renovations, or repairs. The ability to connect different types of pipes, such as copper and plastic, offers greater design and implementation options for plumbing systems.
