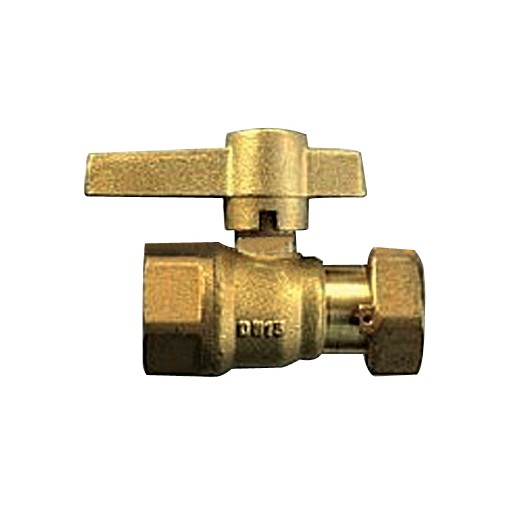

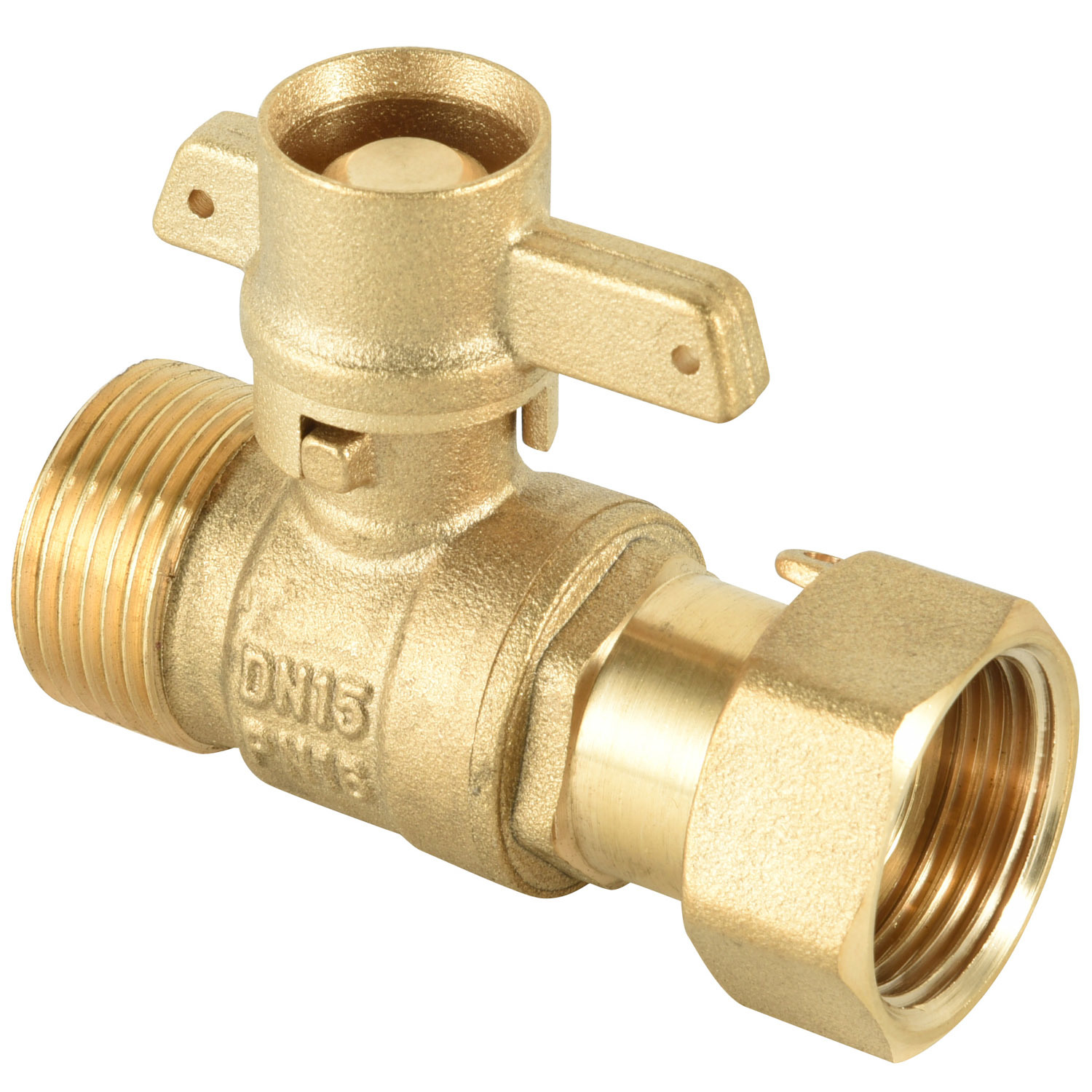

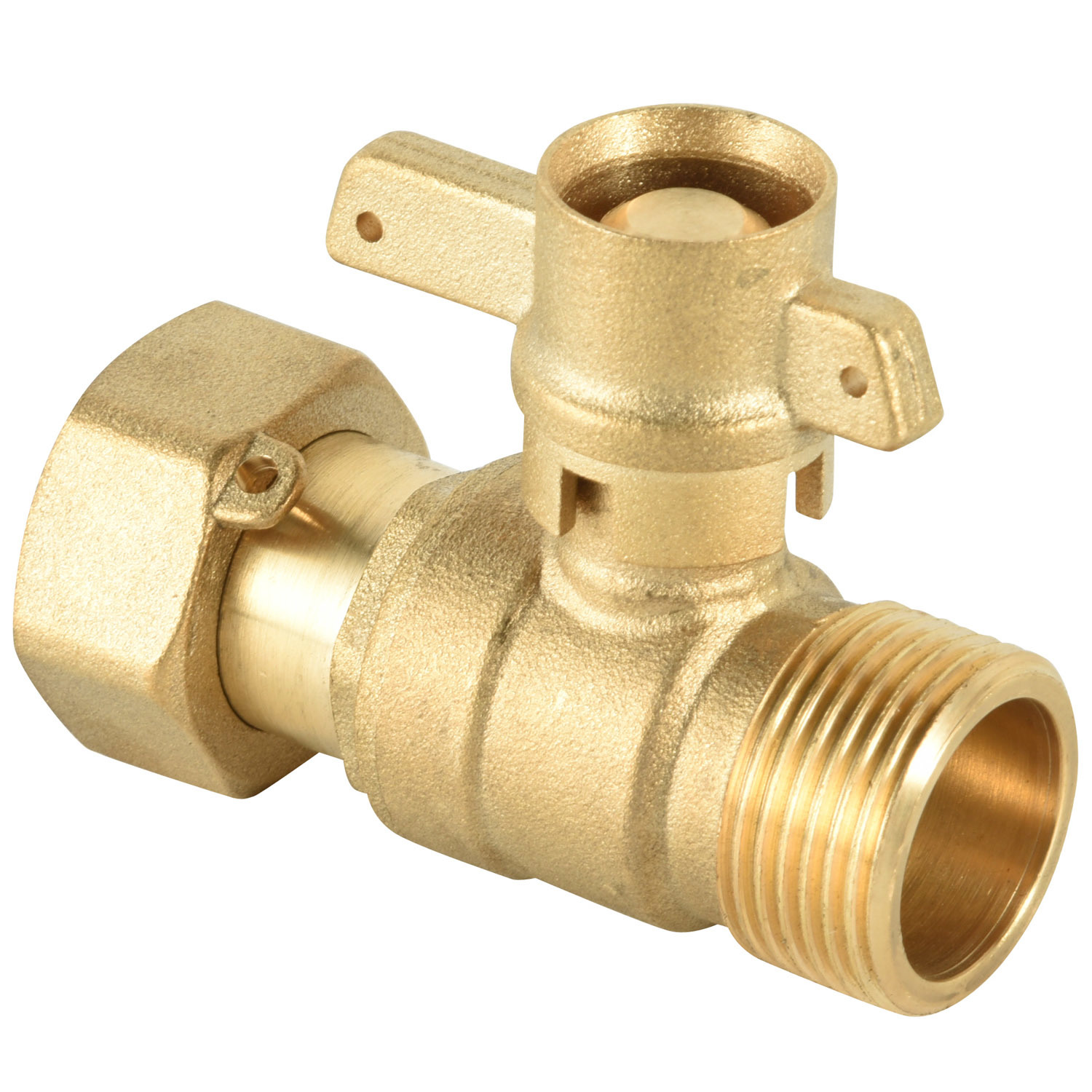

Spec of Brass straight lockable ball valve
Model: NR-L013 | Technical Standard | ||||
| Material | Brass CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | DN15X3/4"X20MM,DN15X3/4"X25MM, DN15X3/4"X32MM, | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Forging + machining | ||||
| Standard Ref | EN12165.EN13828 BS21 | ||||
The Brass Straight Lockable Ball Valve NR-L013 by Raising, a leading product from Ninghai Raising Copper Industry Co., Ltd., is a high-performance fluid control device engineered for reliability and security in diverse applications. Designed with a straight flow path and an advanced locking mechanism, this valve ensures precise control over fluid flow while preventing unauthorized operation—once locked, it can only be opened with a specialized key. Crafted from high-grade brass, it combines durability, corrosion resistance, and leak-tight performance, making it a top choice for both residential and industrial fluid management systems.
Constructed from premium brass alloys—including options like CW617N, HPB59-1, and lead-free variants such as C46500—the NR-L013 valve is built to withstand harsh conditions. Its robust material composition resists rust, oxidation, and chemical erosion, ensuring a long service life even in demanding environments. This durability minimizes replacement costs and reduces maintenance frequency, making it a cost-effective choice for long-term use.
A standout feature of the Brass Straight Lockable Ball Valve NR-L013 is its integrated locking system. This mechanism adds an extra layer of safety by restricting access to authorized personnel only; once engaged, the valve cannot be operated without a specialized key. This prevents accidental adjustments, tampering, or unauthorized shut-offs, making it ideal for applications where fluid control security is critical—such as public utilities, industrial facilities, or multi-tenant buildings.
The straight flow path of the NR-L013 minimizes pressure drop, ensuring smooth and efficient fluid movement. This design optimizes system performance by reducing energy loss, which is particularly beneficial in high-flow applications like irrigation systems, industrial pipelines, or commercial plumbing. Whether handling water or non-corrosive liquids, the valve maintains consistent flow rates without compromising on shut-off tightness.
Designed for user convenience, the Brass Straight Lockable Ball Valve NR-L013 features standard threaded connections (BSP, NPT) that fit seamlessly with most existing plumbing systems. Its compact size allows for installation in tight spaces, while the smooth ball rotation ensures effortless operation. Maintenance is simplified by the valve’s robust construction—no frequent part replacements are needed, saving time and resources for both installers and end-users.
With a range of brass materials available—including lead-free variants like C46500—the NR-L013 meets diverse regulatory and application requirements. Lead-free options are ideal for potable water systems, ensuring compliance with health standards, while other alloys like DZR offer enhanced resistance to dezincification, making them suitable for aggressive water conditions.
The Brass Straight Lockable Ball Valve NR-L013 is a versatile solution for numerous industries and scenarios, thanks to its combination of security, durability, and efficiency:
· Residential & Commercial Plumbing: Perfect for controlling water flow in homes, apartments, and offices. The lockable feature prevents tampering with water supply to individual units, making it useful for landlords or property managers.
· Industrial Pipelines: Suitable for non-corrosive liquid handling in manufacturing facilities, where secure flow control is essential to prevent downtime or accidents.
· Irrigation Systems: Ensures precise water distribution in agricultural or landscaping setups, with the locking mechanism preventing unauthorized adjustments that could waste water or damage crops.
· Electric Power Sector: Used in cooling water systems for power generation equipment, where reliable shut-off and resistance to temperature fluctuations (-20°C to 120°C) are critical.
· Oil & Gas Auxiliary Systems: Ideal for non-corrosive fluid lines in upstream or downstream operations, providing secure flow control to maintain system integrity.
· Fire Fighting Systems: Supports safe and controlled water flow in fire suppression networks, where the lockable feature ensures valves remain in the correct position until needed.
Whether for daily use in homes or critical operations in industrial settings, the NR-L013 Brass Straight Lockable Ball Valve delivers consistent performance, security, and value—making it a trusted choice for fluid control needs worldwide.
