NR-L035
Raising
| Quantity: | |
|---|---|

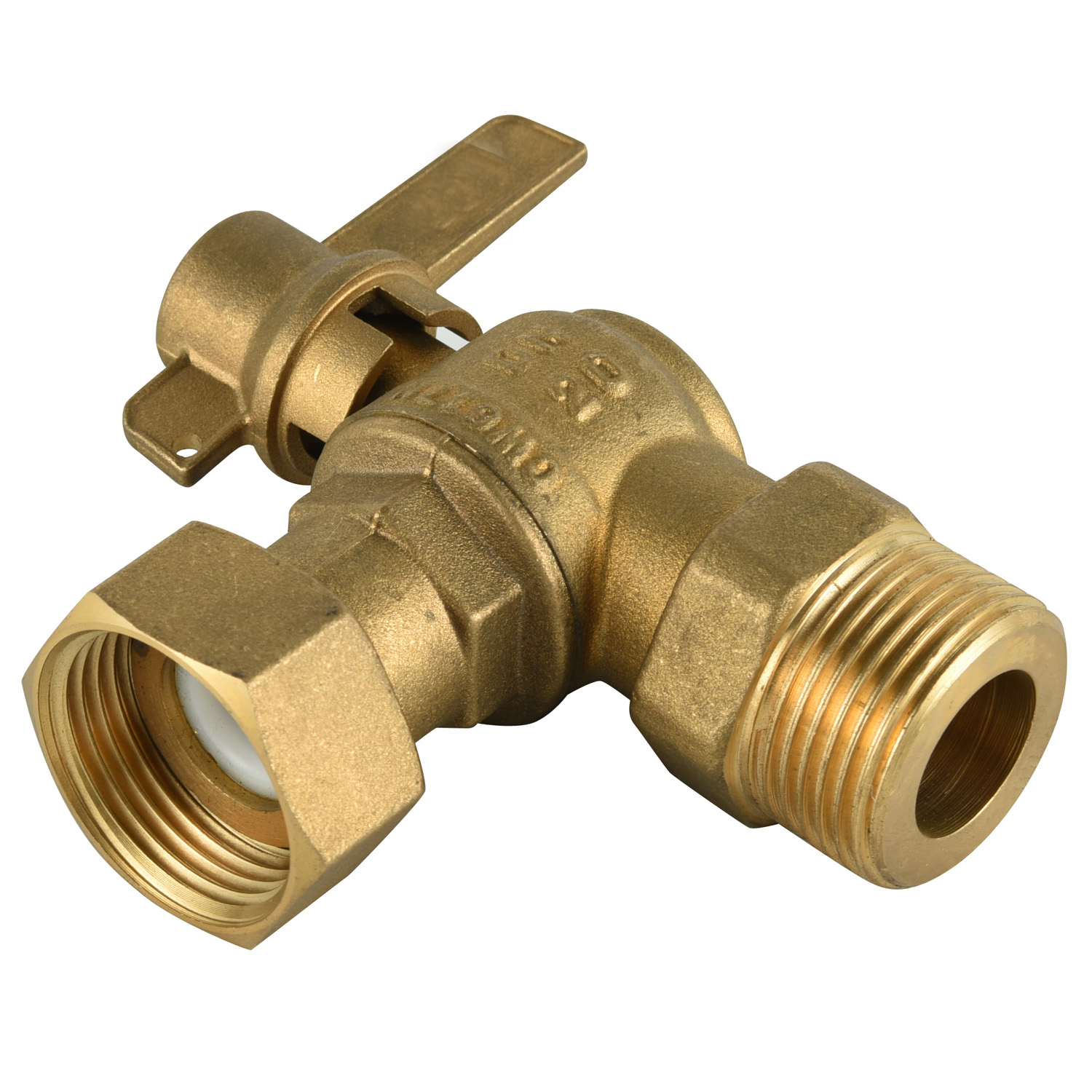

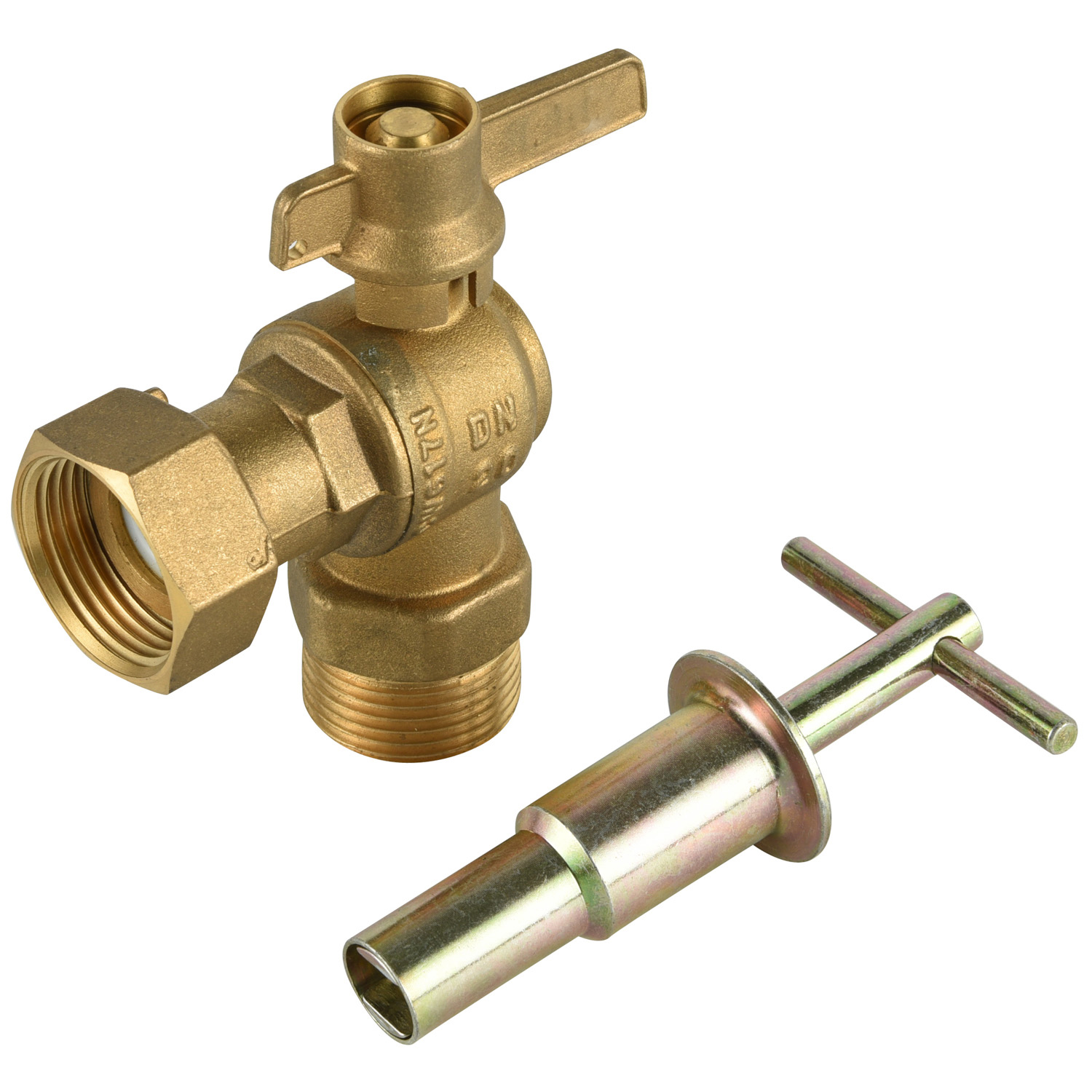

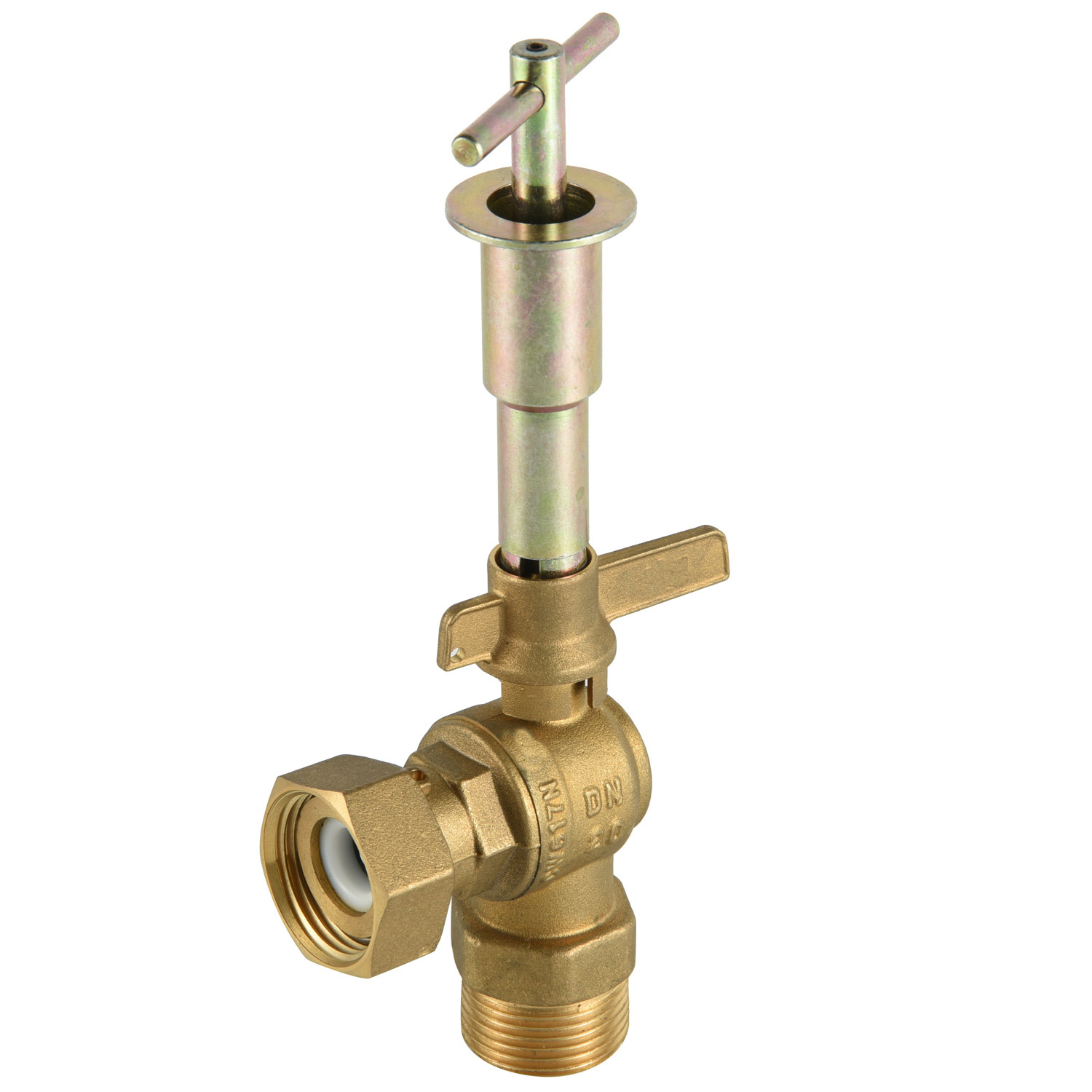

Spec of Brass angle Lockable Ball Valve with check valve
Model:NR-L035 | Technical Standard | ||||
| Material | Brass CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | DN15X3/4"X1/2",DN15X3/4"X3/4" | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Forging + machining | ||||
| Standard Ref | EN12165.EN13828 BS21 | ||||
key advantages of Brass angle brass lockable ball valve with non-return valve
Constructed from Brass: Ensures durability, corrosion resistance, and a long service life.
· Angle Design: Allows for easier installation in tight spaces and improves the overall layout of your piping system.
· Lockable Ball Valve: Provides secure flow control, preventing unauthorized access or tampering. The locking mechanism can be easily engaged or disengaged as needed.
· Non-Return Valve (Check Valve): Automatically prevents backflow of fluids, helping to maintain system integrity and prevent contamination.
· Smooth Operation: The ball valve operates smoothly with minimal effort, thanks to its precision-engineered components.
· Versatile Applications: Suitable for use with water, air, oil, and other compatible fluids in a wide range of applications, including plumbing, HVAC systems, irrigation systems, and more.
