NR-L006
Raising
| Quantity: | |
|---|---|

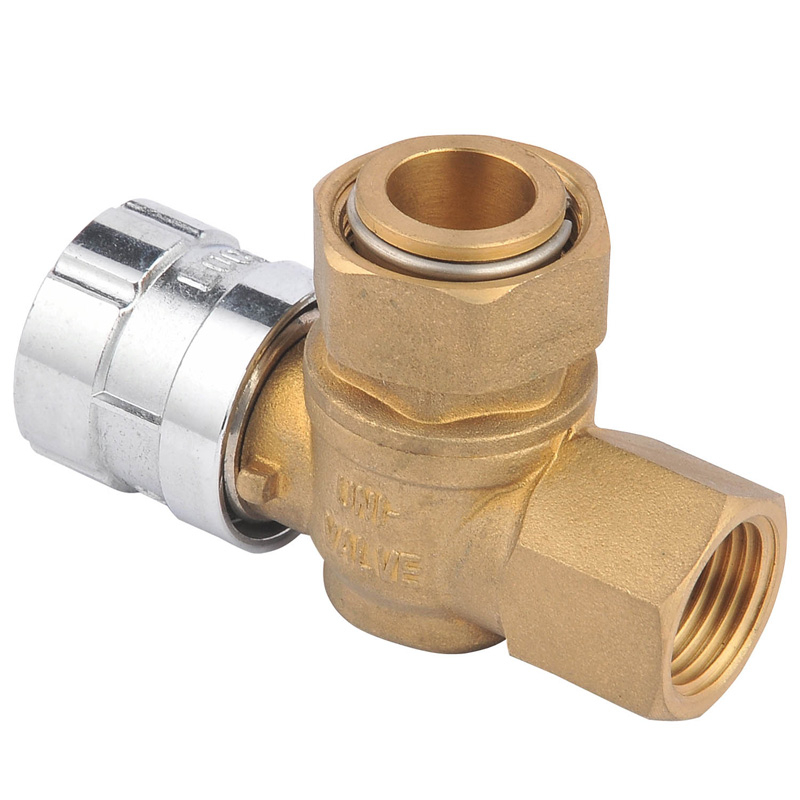

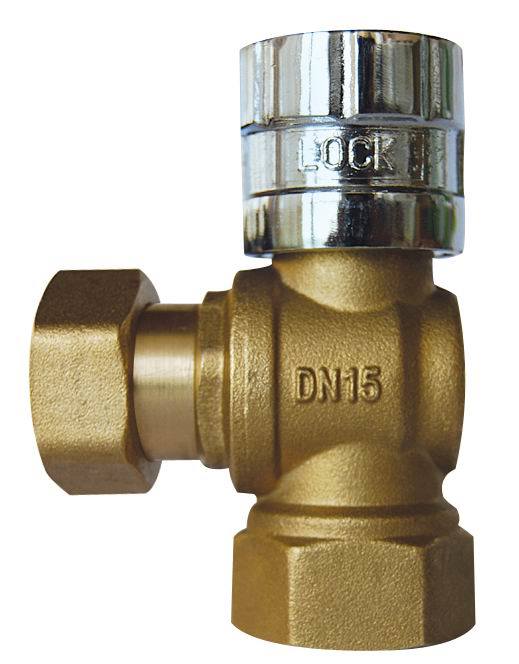

Spec of Brass angle magnetic Lockable Ball Valve
Model:NR-L006 | Material | Brass CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc | |||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | DN15x3/4"x1/2" DN15x3/4"x3/4" | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Forging + machining | ||||
| Standard Ref | EN12165.EN13828 BS21 | ||||
Brass Construction: The valve body is made of brass, which offers excellent corrosion - resistance. This makes it suitable for use in a variety of water - based systems, including potable water supply, heating, and cooling systems. Brass also has good mechanical strength, allowing the valve to withstand high - pressure conditions without deforming or leaking over time.
Angle Design: The angle configuration of the valve is a key feature. It is designed to change the direction of the fluid flow by 90 degrees. This is useful in plumbing and piping systems where space is limited or where a change in the flow path is required without the need for additional elbows or fittings, reducing the overall installation space and potential for leakage at multiple connection points.
Ball Valve Mechanism: It utilizes a ball valve mechanism. The ball inside the valve has a hole through its center. A quarter - turn of the handle rotates the ball. When the hole is aligned with the flow path, the valve is open, enabling fluid to flow through with minimal resistance. When the ball is rotated 90 degrees, the hole is perpendicular to the flow path, providing a tight seal and stopping the fluid flow completely. This design allows for quick and easy on - off control.
Lockable Feature: The "lockable" aspect of the valve is crucial for security and control. It prevents unauthorized opening or closing of the valve. This is particularly important in applications such as public water supply systems, commercial buildings, or any situation where access to the valve needs to be restricted. The lock can be a simple key - operated mechanism or a more advanced locking system, ensuring that only authorized personnel can operate the valve.
Magnetic Feature: The magnetic element in the valve is often used in conjunction with the lockable feature. In some designs, a magnetic key is required to unlock and operate the valve. This adds an extra layer of security as non - magnetic objects will not be able to manipulate the lock. It also helps in preventing tampering, as the magnetic key is usually a specialized tool that is not easily replicated.
Connection Compatibility: The valve is likely to have standard threaded or flanged connections, making it compatible with a wide range of pipes and fittings. This allows for easy integration into existing or new piping systems, whether in residential, commercial, or industrial settings.
Installation Ease: Its design and connection types make it relatively easy to install. The valve can be installed in various orientations depending on the system requirements, and the angle design may even simplify the overall piping layout in some cases.
