NR-L032
Raising
| Quantity: | |
|---|---|
Model:NR-L032 | Technical Standard | ||||
| Material | CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | From 1/2" to 2" | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Forging + machining | ||||
| Standard Ref | EN12165.EN13828 BS21 | ||||

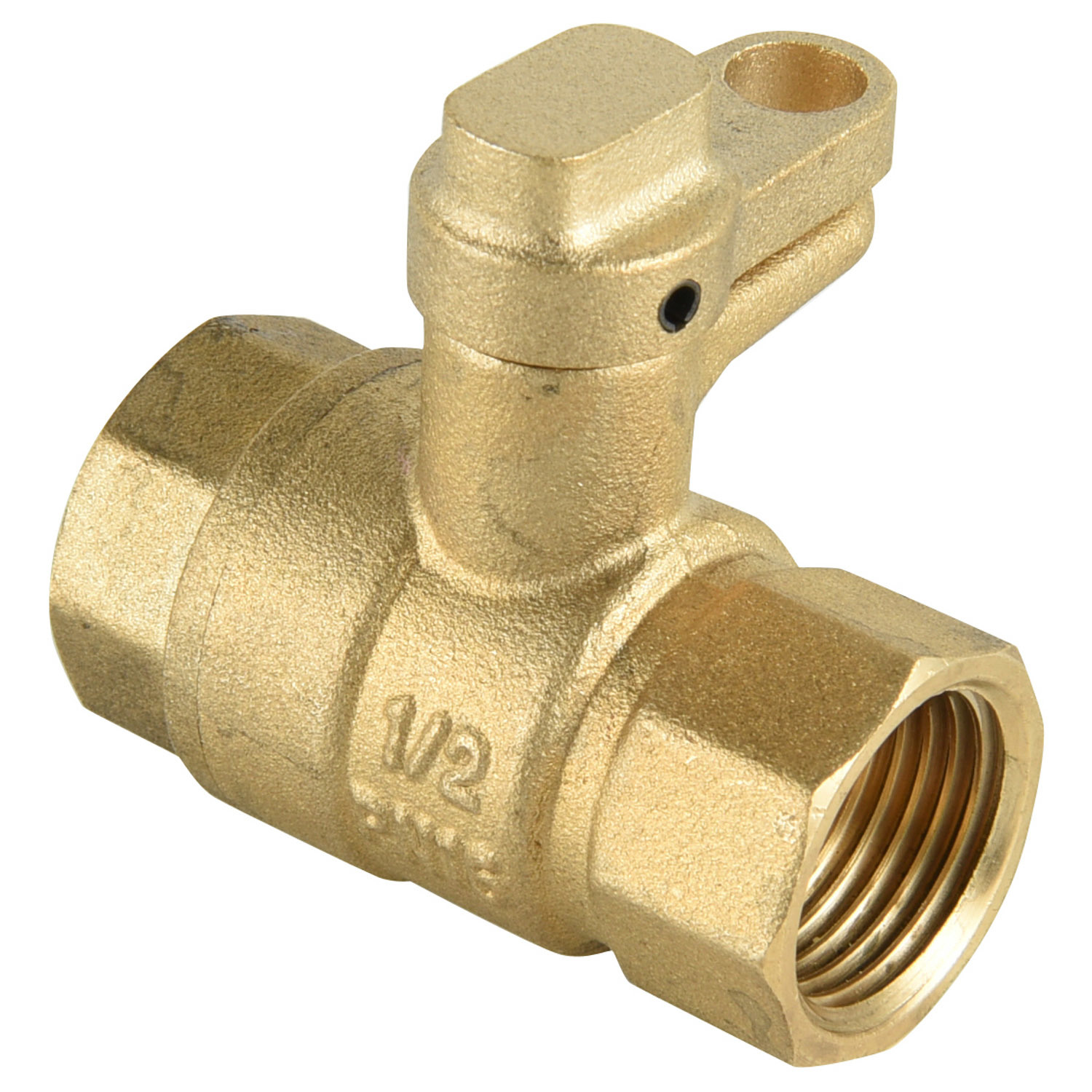

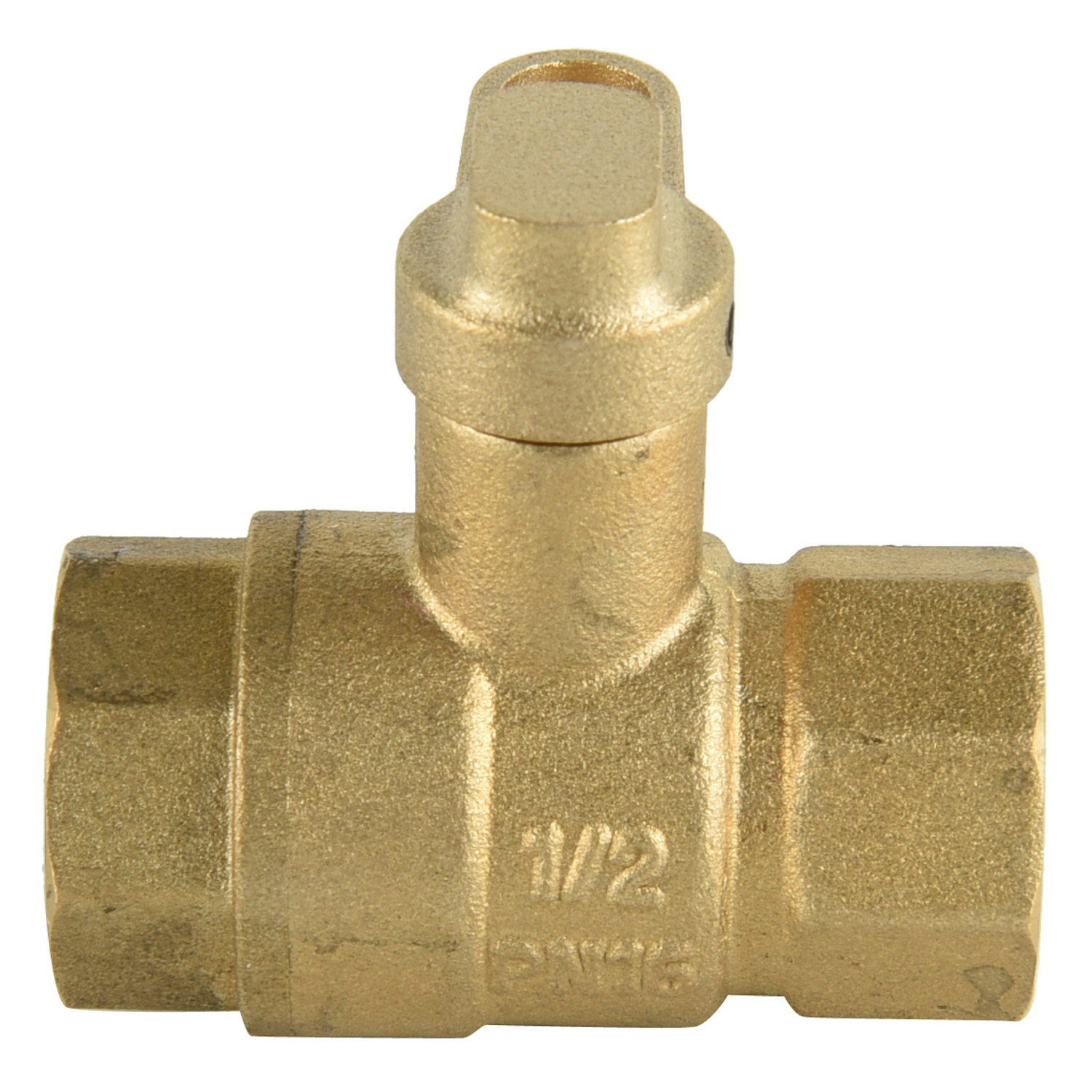

This is a brass ball valve that comes with a lock - wing specifically for a padlock. It's made of brass, which gives it good durability and resistance to corrosion, so it can be used in a variety of plumbing and fluid - control situations.
The Brass Ball Valve with Lock Wing (Model: NR-L032) by Raising is a premium fluid control solution engineered for both security and usability. Crafted from high-grade brass materials—including CW617N, HPB59-1, DZR CW602N, and lead-free brass C46500/CW511L—it delivers exceptional durability and corrosion resistance, making it suitable for long-term use in diverse plumbing and industrial settings. Its defining feature is the integrated lock wing mechanism, which accepts a standard padlock to secure the valve in either open or closed positions, preventing unauthorized adjustments or tampering. Compliant with international standards (EN12165, EN13828, BS21), this valve operates reliably under 16 bar working pressure and a temperature range of -20°C to 120°C, handling water and non-corrosive liquids with ease. Available in sizes from 1/2" to 2" with BSP/NPT thread connections, it balances versatility with security, ideal for systems where fluid flow integrity is critical.
The valve’s unique lock wing structure features a dedicated slot for padlocks, allowing users to lock the handle in their desired position (open or closed). This eliminates the risk of accidental adjustments by staff or unauthorized access—critical for industrial process control or residential water supply security during extended absences.
Made from corrosion-resistant brass alloys (including lead-free options), the valve withstands harsh conditions such as moisture, chemicals in non-corrosive liquids, and temperature fluctuations. The forging + machining production method ensures a tight, leak-free structure, reducing maintenance needs and extending service life.
With size options ranging from 1/2" to 2", the NR-L032 fits most standard piping systems. Its BSP/NPT thread connections enable easy integration into existing plumbing setups, whether for residential water lines, industrial fluid loops, or commercial HVAC systems.
Operating at 16 bar working pressure and -20°C to 120°C, the valve maintains consistent flow control without leaks or malfunctions. This stability makes it suitable for both indoor and outdoor applications, from home plumbing to light industrial use.
• Process Control: Secures valves in manufacturing lines to prevent unintended flow changes, ensuring compliance with production standards and safety protocols.
• Facility Management: Locks water or HVAC lines in commercial buildings (e.g., malls, offices) during maintenance or off-hours, avoiding water waste or system damage.
• Home Maintenance: Locks the main water supply when homeowners are away (e.g., vacations, long trips) to prevent flooding from unexpected leaks.
• Rental Properties: Enables landlords to control water access for vacant units, ensuring no unauthorized use while the property is unoccupied.
• Municipal Water Lines: Used in small-scale municipal setups (e.g., neighborhood water meters) to prevent tampering with public water supply lines.
• Irrigation Systems: Secures valves in garden or agricultural irrigation loops to maintain consistent water distribution and prevent theft of water resources.
Yes. The lock wing mechanism is designed to secure the handle in either position, giving users full control over when and how fluid flows through the system.
Absolutely. The valve offers lead-free brass options (C46500, CW511L) that meet global lead-free standards, making it safe for potable water systems in homes, schools, and commercial buildings.
Most standard padlocks (e.g., keyed, combination) with a shackle diameter of up to 8mm will fit the lock wing slot. For optimal security, we recommend using a weather-resistant padlock for outdoor installations.
No. The BSP/NPT thread connections are compatible with standard plumbing tools. Simply thread the valve into the existing piping—no specialized equipment is needed.
