NR-I007
Raising
| Quantity: | |
|---|---|

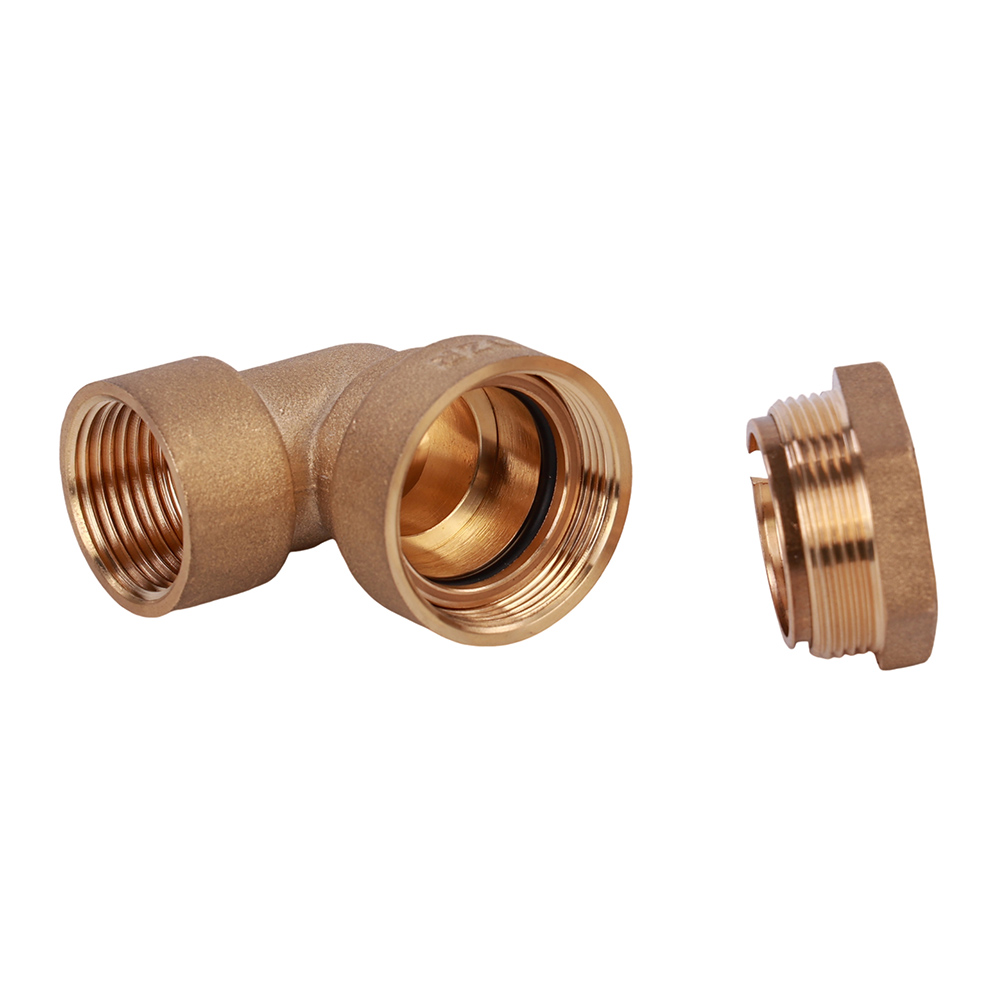

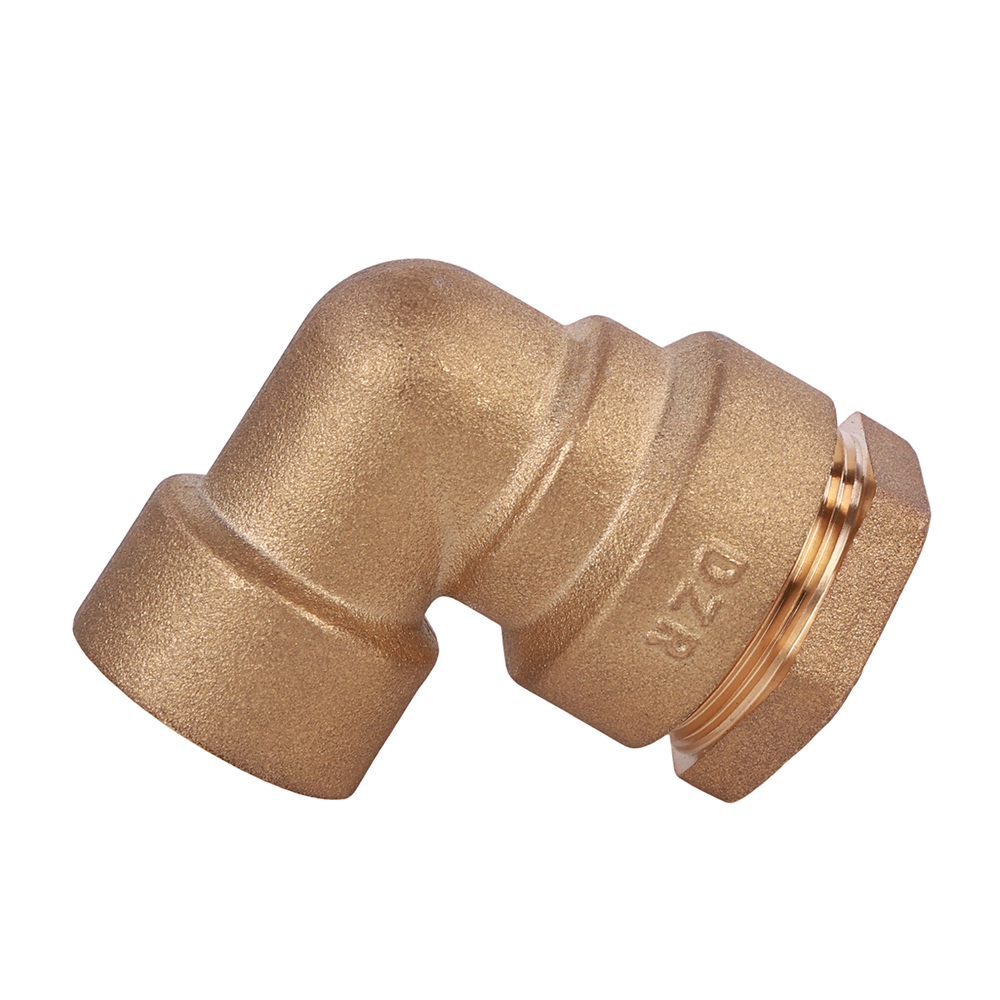

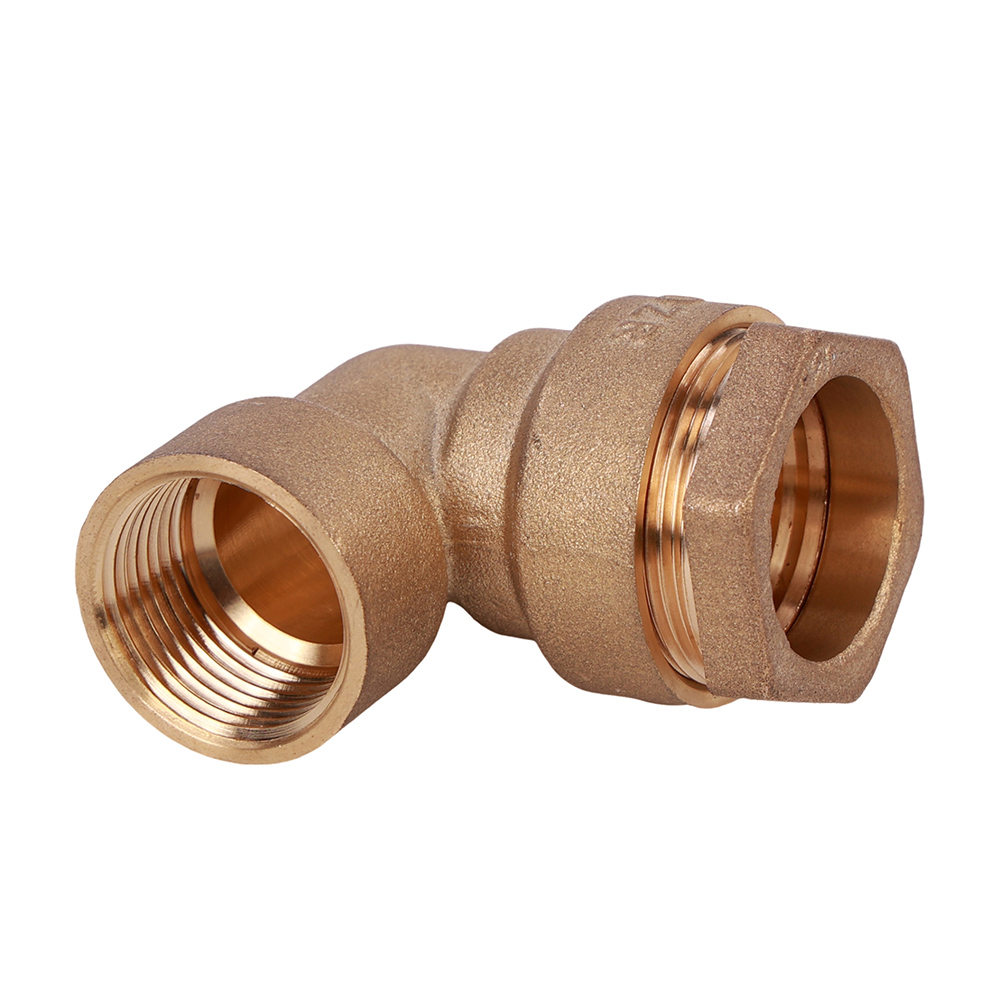

Technical Chart of Brass elbow compression adaptor for PE pipe
| Technical Standard | ||||
| Material | Brass CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | 1/2" x20mm,3/4"x25mm,1"x32mm | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Forging + machining | ||||
| Standard Ref | BS or ISO Standard | ||||
Advantages of Brass compression coupling
· Versatile Angle: Available in various angles (such as 45°, 90°, or other custom angles) to accommodate different piping configurations and layouts.
· Easy Installation: The compression fitting design eliminates the need for complex installation methods such as soldering, welding, or threading. Simply slide the PE pipe into the compression sleeve, thread the nut onto the fitting, and tighten until secure.
· Leak-Proof Connection: The compression mechanism creates a tight seal around the PE pipe, preventing leaks and ensuring reliable performance.
· Corrosion Resistance: Brass's natural corrosion resistance makes this adaptor suitable for use in a variety of environments, including those with high humidity or exposure to chemicals.
Applications
· Residential and Commercial Plumbing: Ideal for connecting PE pipes in water supply systems, irrigation systems, and other fluid transfer applications in both residential and commercial settings.
· Industrial Use: Suitable for industrial applications where durability and reliability are critical, such as in oil, gas, and chemical processing facilities.
Installation Tips
· Ensure the PE pipe is clean and free of debris before installation.
· Use a suitable pipe cutter or saw to trim the PE pipe to the desired length.
· Slide the PE pipe into the compression sleeve of the elbow adaptor.
· Thread the compression nut onto the end of the adaptor and tighten it securely using a wrench or pliers.
· Check the connection for tightness and leaks by applying pressure to the system and inspecting for any signs of leakage.
In summary, a brass elbow compression adaptor for PE pipe is a versatile and reliable fitting that offers a secure and leak-proof connection at an angle. Its high-quality brass construction, easy installation process, and corrosion resistance make it ideal for a wide range of plumbing and fluid transfer applications.
Model:NR-I007
