NR-L053
Raising
| Quantity: | |
|---|---|

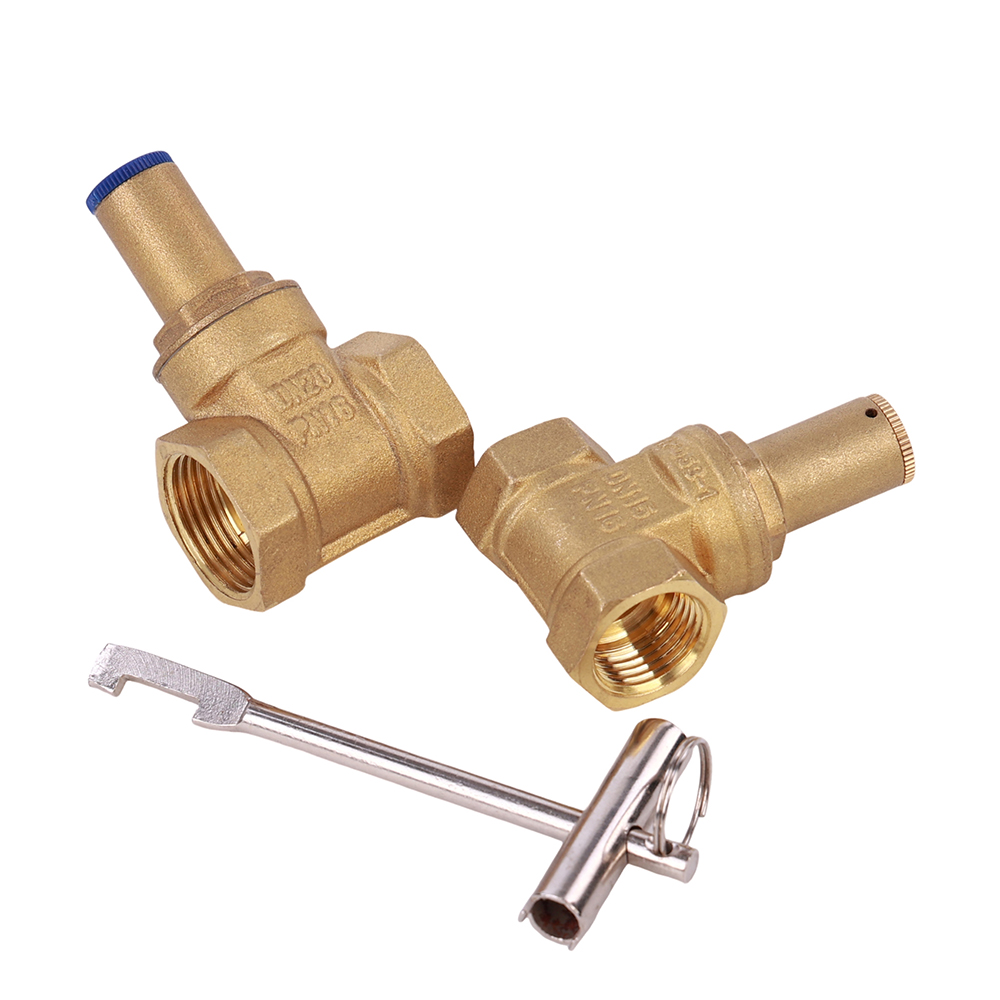

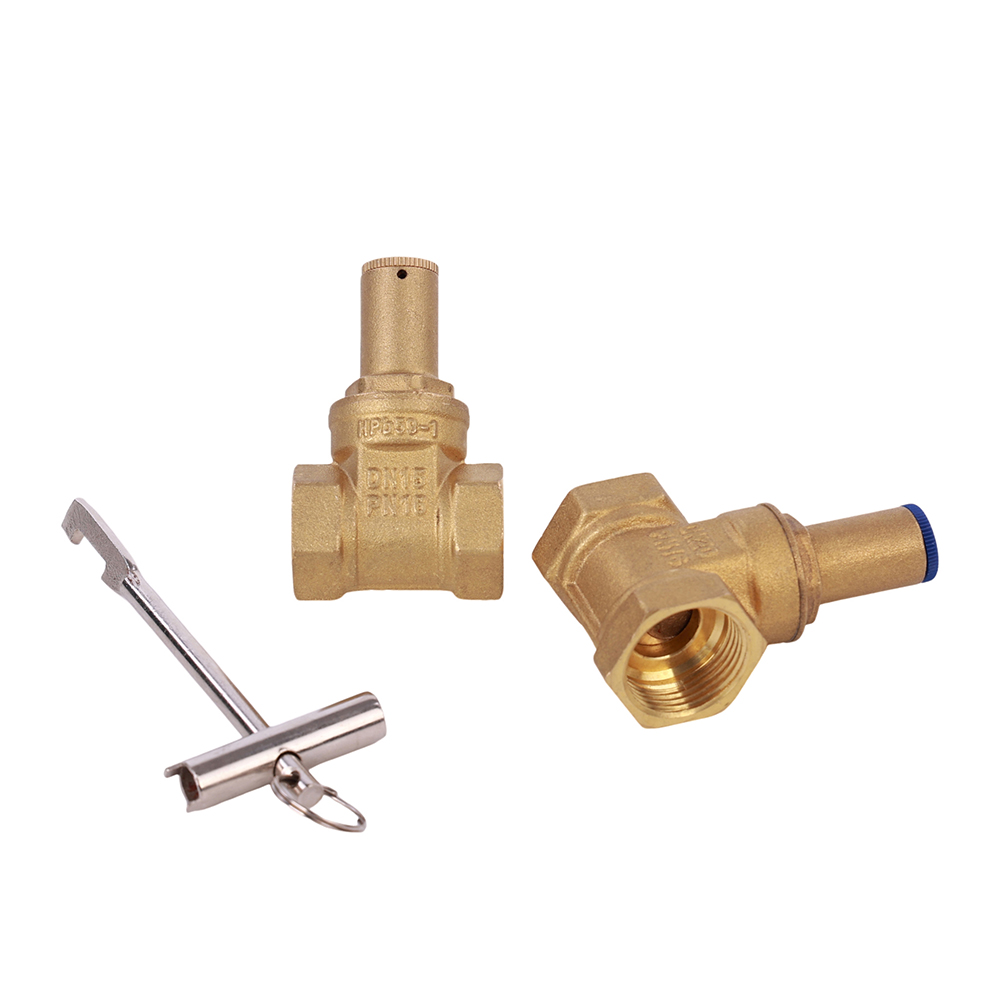

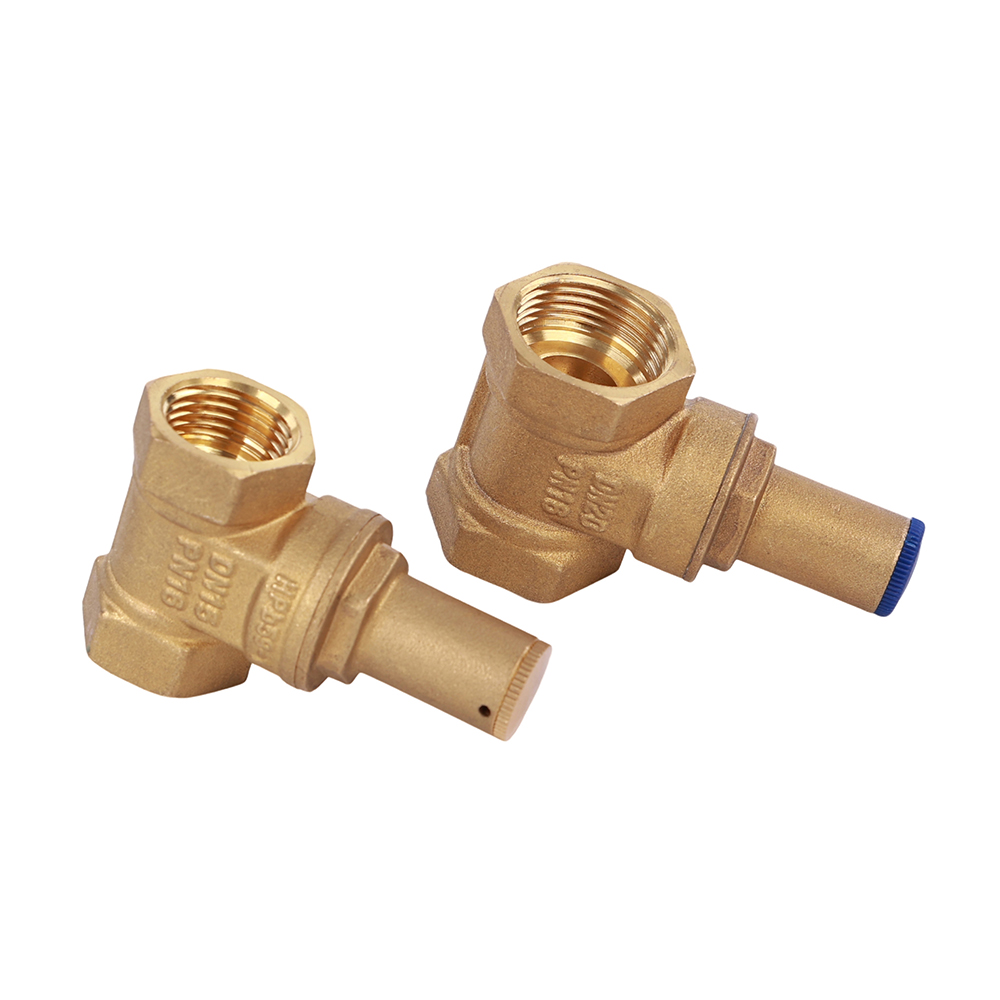

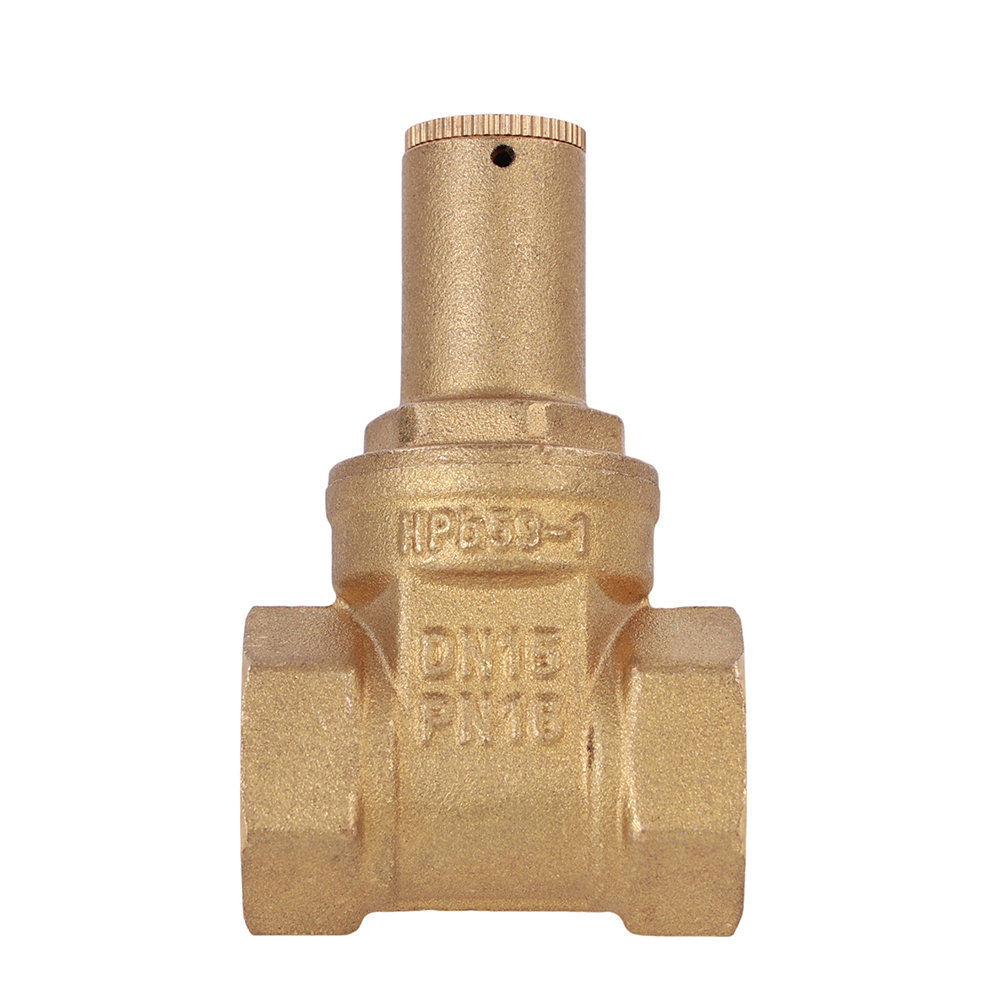

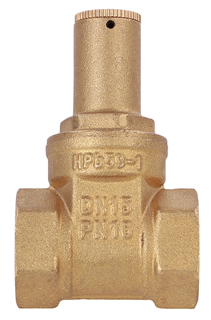

Spec of Brass lockable gate valve
Model:NR-L053 | Technical Standard | ||||
| Material | Brass CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | from 1/2" to 2" | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Forging + machining | ||||
| Standard Ref | BS 5154 | ||||
Key Features Brass lockable gate valve
1. Material and Construction:
The valve body, disc, and bonnet are all made of forged brass, providing strength and durability.
Available materials include CW617N, CW614, CW602N, and ASTM C37700, ensuring compatibility with a variety of fluids and systems.
2. Lockable Feature:
The valve is equipped with a lockable mechanism, allowing users to securely lock the valve in either the open or closed position.
This feature is ideal for applications where unauthorized access or tampering needs to be prevented.
3. Size and Connection:
Available in sizes ranging from 1/2" to 2", making it suitable for a wide range of piping systems.
The valve has threaded connections, compatible with BSPT, NPT, and ISO 228/1 standards, ensuring easy installation and compatibility with various piping systems.
4. Working Conditions:
Designed for use with water, oil, and gas, the valve can handle ordinary pressures and temperatures.
Working pressure ratings include PN20, PN25, 200WOG, and 250WOG.
5. Manual Operation:
The valve is manually operated, making it easy to use and control.
The actuator is designed for smooth and reliable operation, even in harsh conditions.
6. Quality Assurance:
Manufactured by experienced and ISO-certified factories, the Brass Lockable Gate Valve is subject to strict quality control measures.
The valve comes with a warranty period, ensuring customer satisfaction and peace of mind.
Customization options are available to meet specific customer requirements. This includes different size options, material choices, and pressure ratings.
Our Brass Lockable Gate Valve is a versatile and reliable valve that offers superior performance and durability. With its lockable mechanism, threaded connections, and wide range of sizes and materials, it is an ideal choice for various industrial and commercial applications. Contact us today for more information and to place your order.
5. Visual Indication of Position: The valve's handle provides a clear visual indication of its position, making it easy to quickly identify whether the valve is open or closed. This can be particularly useful in environments where multiple valves are in use.
These functional advantages make the Brass Lockable Ball Valve an excellent choice for a wide range of industrial and household applications, where durability, security, and efficient fluid control are essential.
