NR-L031
Raising
| Quantity: | |
|---|---|

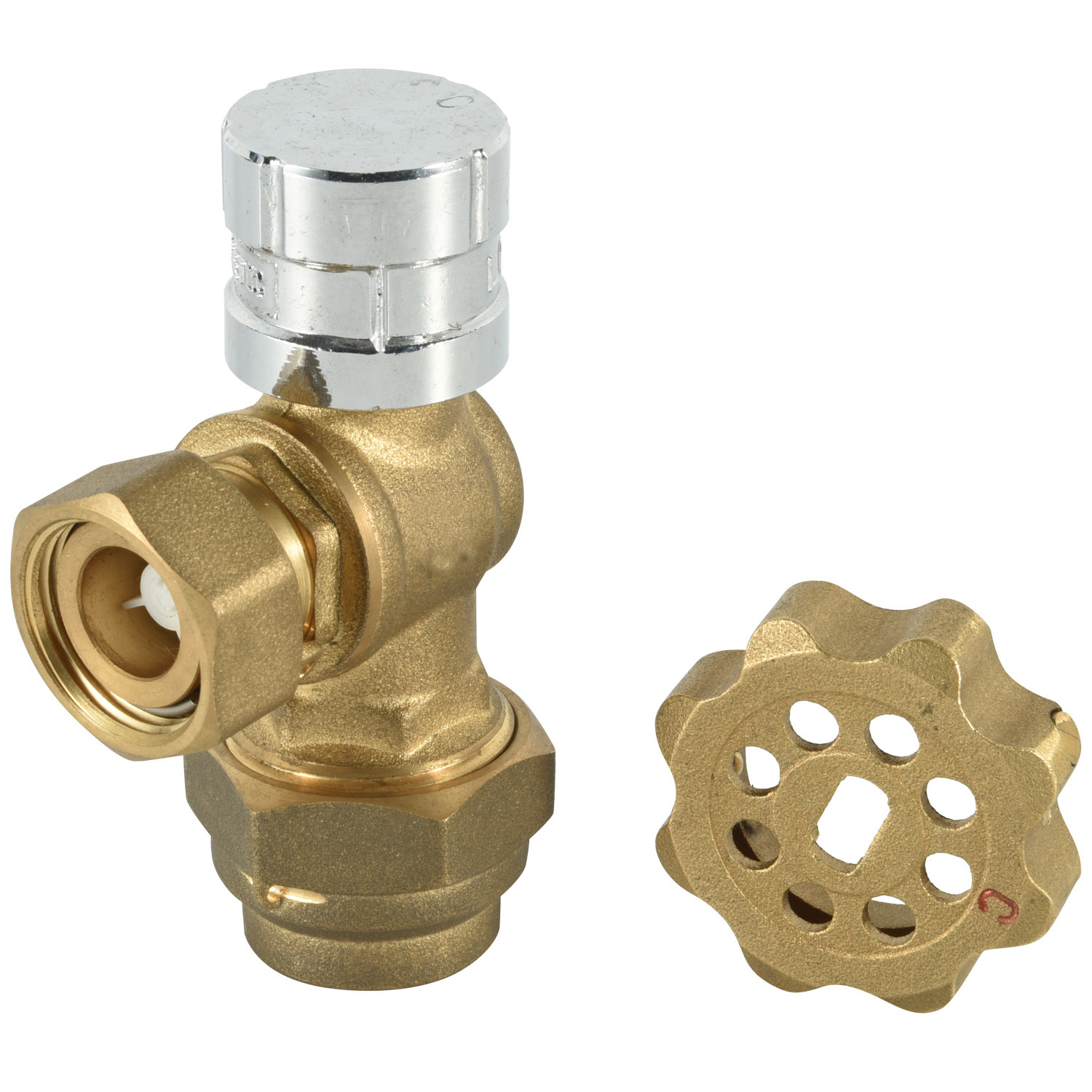

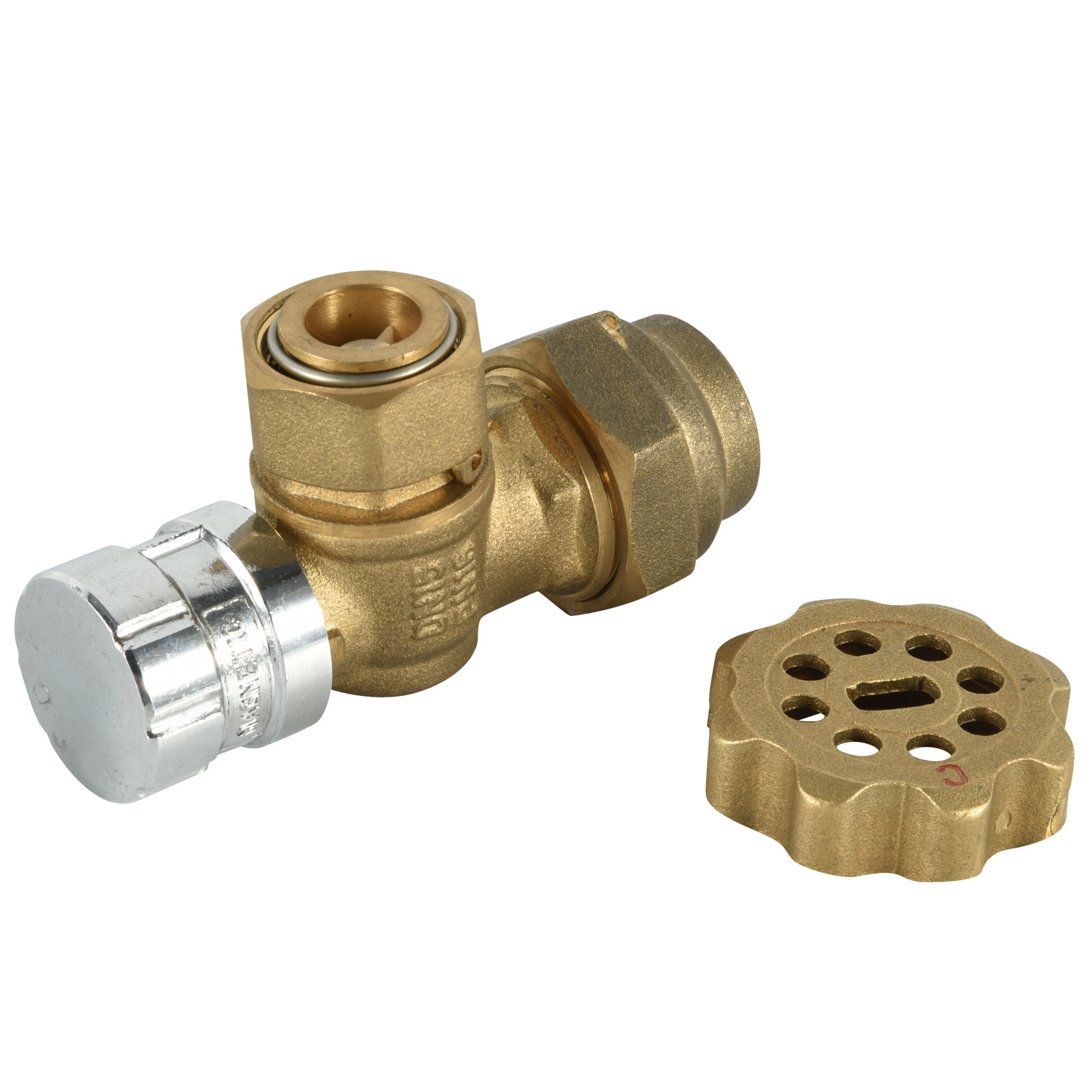

Brass magnetic lockable ball valve with check valve
Model:NR-L031 | Technical Standard | ||||
| Material | CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | DN15X3/4"X20MM,DN15X3/4"X25MM | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Forging + machining | ||||
| Standard Ref | EN12165.EN13828 BS21 | ||||
Brass Magnetic Lockable Ball Valve and check valve with Compression End boasts several key advantages:
Durable Brass Construction:
Crafted from high-quality brass, our valve ensures robust performance and corrosion resistance, making it suitable for use in harsh environments.
Magnetic Locking Mechanism:
A unique magnetic locking feature allows for secure positioning of the valve in either the open or closed position, preventing accidental manipulation and ensuring fluid control integrity.
Integrated Check Valve:
The incorporated check valve ensures that fluid flows in one direction only, preventing backflow and maintaining system efficiency. This dual functionality eliminates the need for separate valves, simplifying installation and reducing costs.
Smooth Ball Valve Operation:
The ball valve component features a smooth, quarter-turn operation for easy and quick opening and closing, minimizing downtime and enhancing operational efficiency.
Wide Range of Applications:
Suitable for use in irrigation systems, plumbing, HVAC systems, fire protection, and other industrial fluid control applications. The versatile design caters to various pressures and temperatures, making it a go-to solution for diverse needs.
