NR-L030
Raising
| Quantity: | |
|---|---|

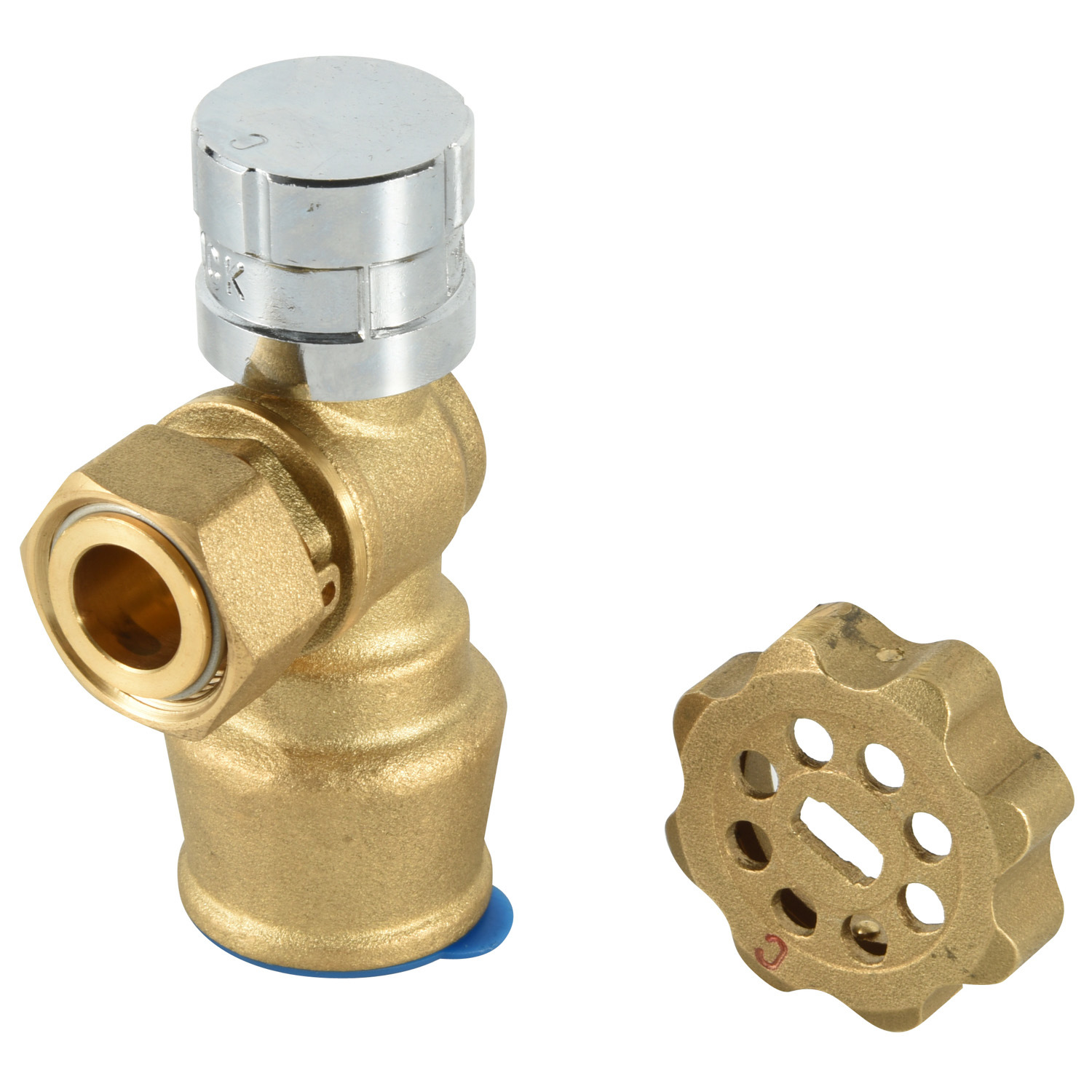

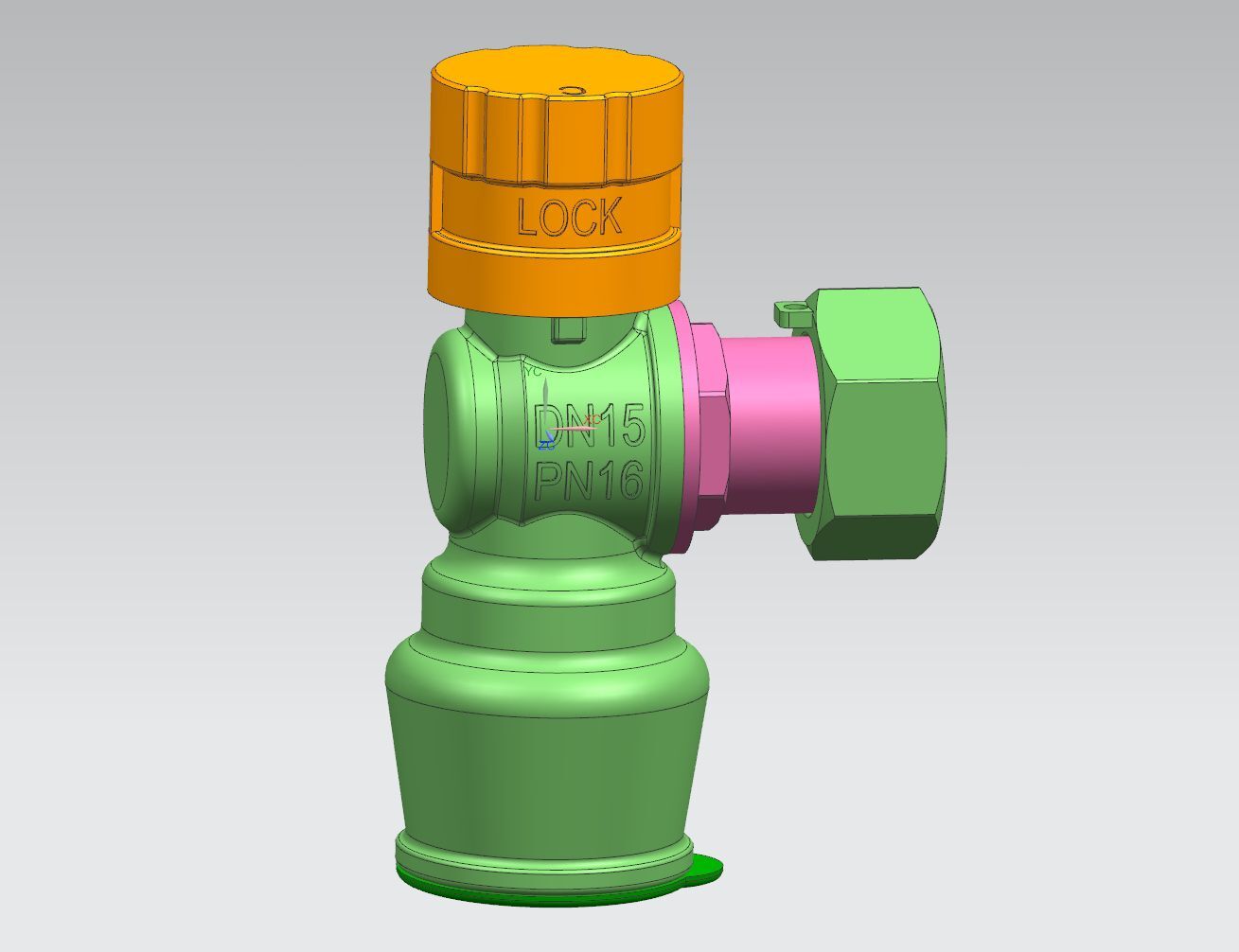

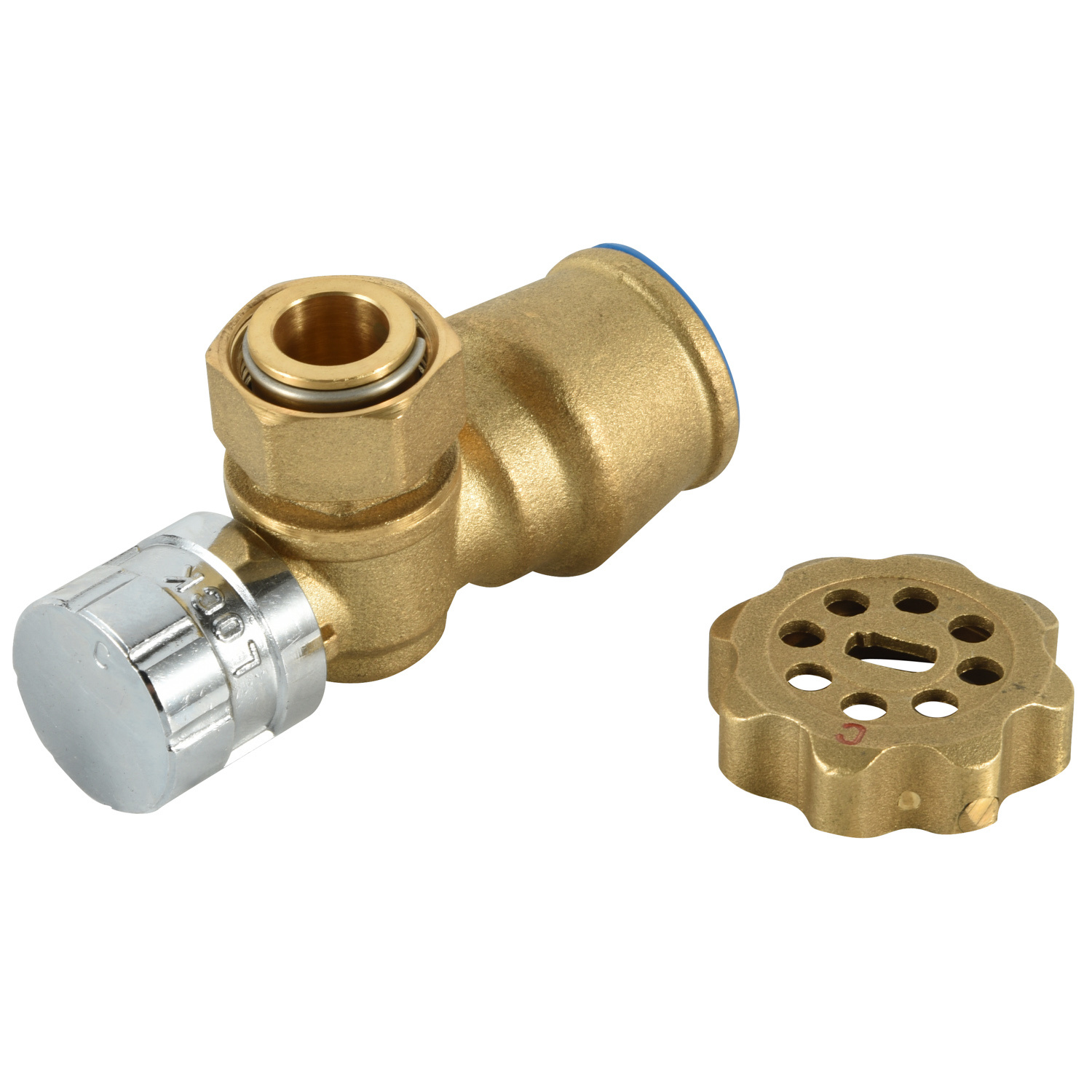

Spec of Brass angle magnetic Lockable Ball Valve with pushfit end
Model:NR-L030 | Technical Standard | ||||
| Material | CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | DN15X3/4"X20MM,DN15X3/4"X25MM, | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Forging + machining | ||||
| Standard Ref | EN12165.EN13828 BS21 | ||||
The Brass Magnetic Lockable Ball Valve with Pushfit End NR-L030, designed by Raising Valve, is a secure and user-friendly fluid control solution for applications requiring anti-tampering protection. Made from high-grade brass (CW617N, HPB59-1, DZR CW602N, lead-free C46500/CW511L), this valve offers durability and corrosion resistance—suitable for water and non-corrosive liquids. It operates at 16 bar working pressure and -20℃ to 120℃, ensuring stability in residential, commercial, and industrial settings. The magnetic locking mechanism prevents unauthorized access, while the pushfit end enables tool-free installation. Available in sizes DN15X3/4"X20MM and DN15X3/4"X25MM with BSP/NPT threads, it complies with EN12165, EN13828, and BS21 standards—guaranteeing reliability for water meters, HVAC, and industrial piping.
A unique feature, the magnetic lock requires a special magnetic key to unlock—preventing unauthorized tampering, water theft, or accidental adjustments. Unlike mechanical locks, magnetic locks are tamper-proof (no visible screws or pins to pick) and operate smoothly. The valve can be locked in the open position to prevent meter removal (critical for utility companies) or closed position for maintenance.
Brass offers exceptional corrosion resistance, pressure tolerance, and wear resistance—even in harsh conditions (e.g., industrial coolants or residential hot water). Lead-free brass variants meet potable water standards, making it safe for drinking water lines. DZR brass options provide extra protection against outdoor corrosion (e.g., for outdoor water meters).
The pushfit end eliminates threading, soldering, or special tools—users simply insert the pipe into the valve until it clicks. This cuts installation time by up to 60% compared to traditional valves, making it ideal for projects with tight deadlines (e.g., utility meter retrofits or commercial building plumbing). The pushfit design also ensures a leak-tight seal, minimizing water waste.
The valve works with water and non-corrosive liquids (e.g., oil, coolant, mild detergents), expanding its use beyond plumbing to industrial fluid control. It operates safely in temperatures from -20℃ to 120℃, making it suitable for cold water (e.g., irrigation) and hot water (e.g., HVAC) systems.
Utility companies use the NR-L030 to secure water meters, preventing tampering or meter removal (which causes revenue loss). The magnetic lock ensures only authorized personnel can adjust the valve, and the pushfit end speeds up meter installation across neighborhoods.
In offices, hotels, or malls, the valve regulates water flow to heating/cooling units. The magnetic lock prevents unauthorized adjustments (e.g., by tenants) that could disrupt temperature control, and the brass body resists corrosion from HVAC fluids.
In light manufacturing or food processing, the valve controls non-corrosive fluids (e.g., sanitizers, coolants). The leak-tight pushfit seal prevents fluid waste, and the magnetic lock ensures only trained staff can modify flow—maintaining operational safety.
Homeowners use the valve in potable water lines (e.g., under sinks, behind water heaters) or outdoor spigots. The lead-free brass option is safe for drinking water, and the magnetic lock prevents children or guests from accidentally turning off water supply.
Contact Raising’s customer support with your valve model and purchase proof. Raising provides replacement magnetic keys for authorized users (e.g., homeowners, utility companies) to avoid valve damage.
Yes, the pushfit end is compatible with PEX, PE, and copper pipes. Ensure the pipe is cut straight and free of burrs for a secure seal.
No, the lock uses a specialized magnetic frequency—only the matching Raising key can unlock it. Household magnets (e.g., fridge magnets) will not affect the lock.
Yes, choose the DZR brass variant for outdoor use—it resists corrosion from rain, humidity, and soil moisture. Ensure the valve is protected from direct sunlight (to prevent seal degradation) and freezing (drain if temperatures drop below -20℃).
Raising offers a 2-year warranty against manufacturing defects. The warranty covers the brass body and magnetic lock but excludes damage from improper installation or tampering.
