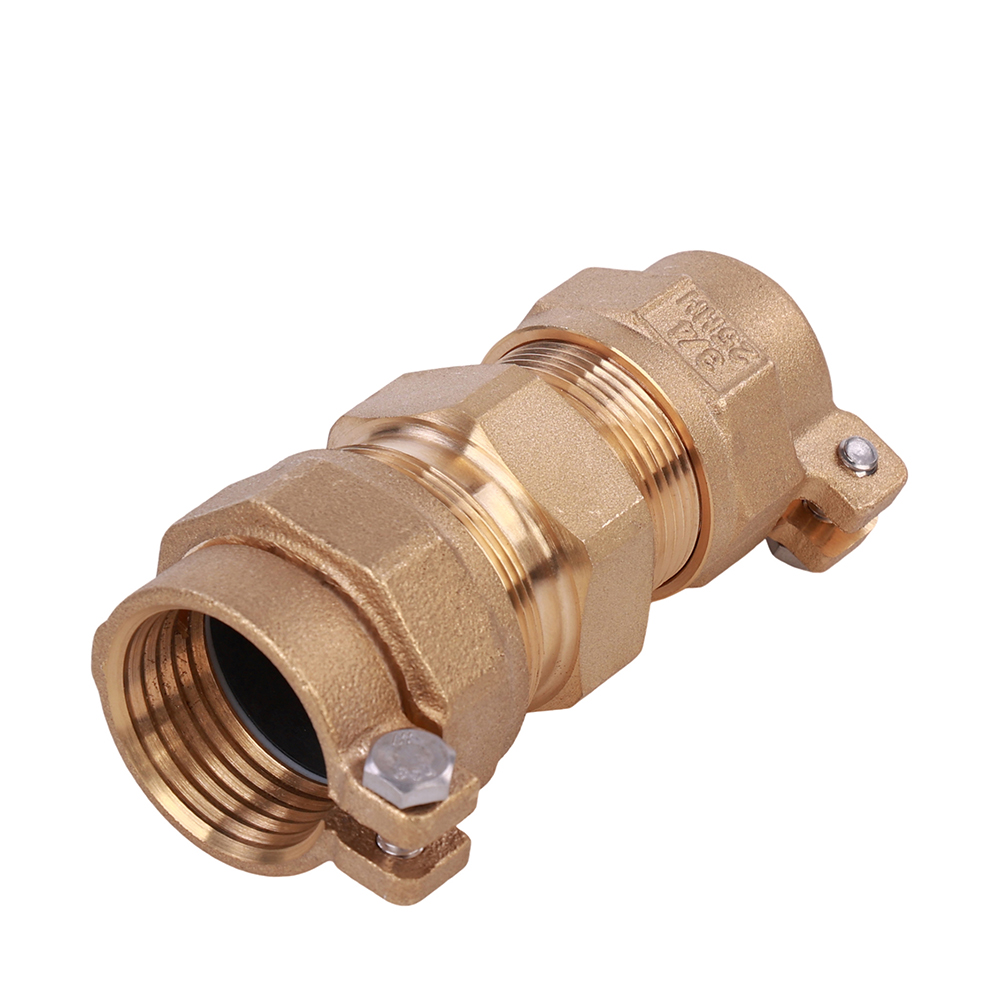

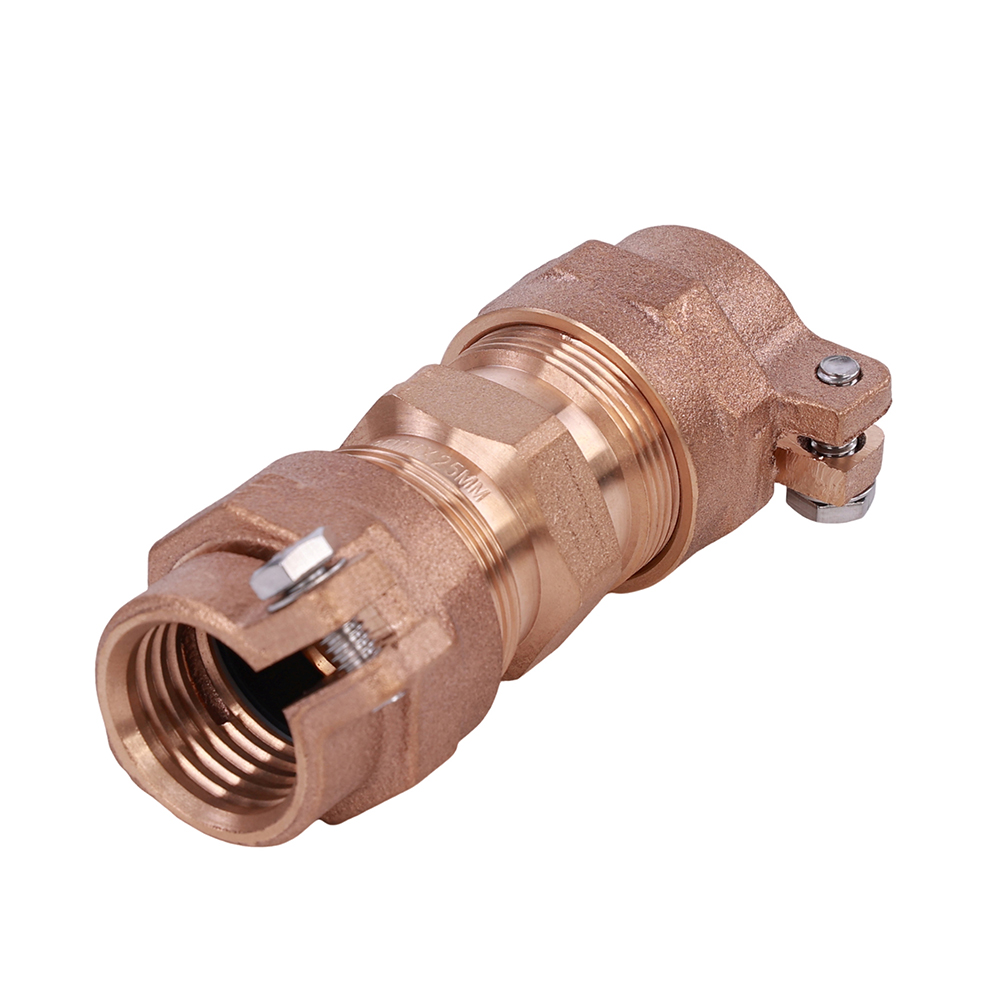

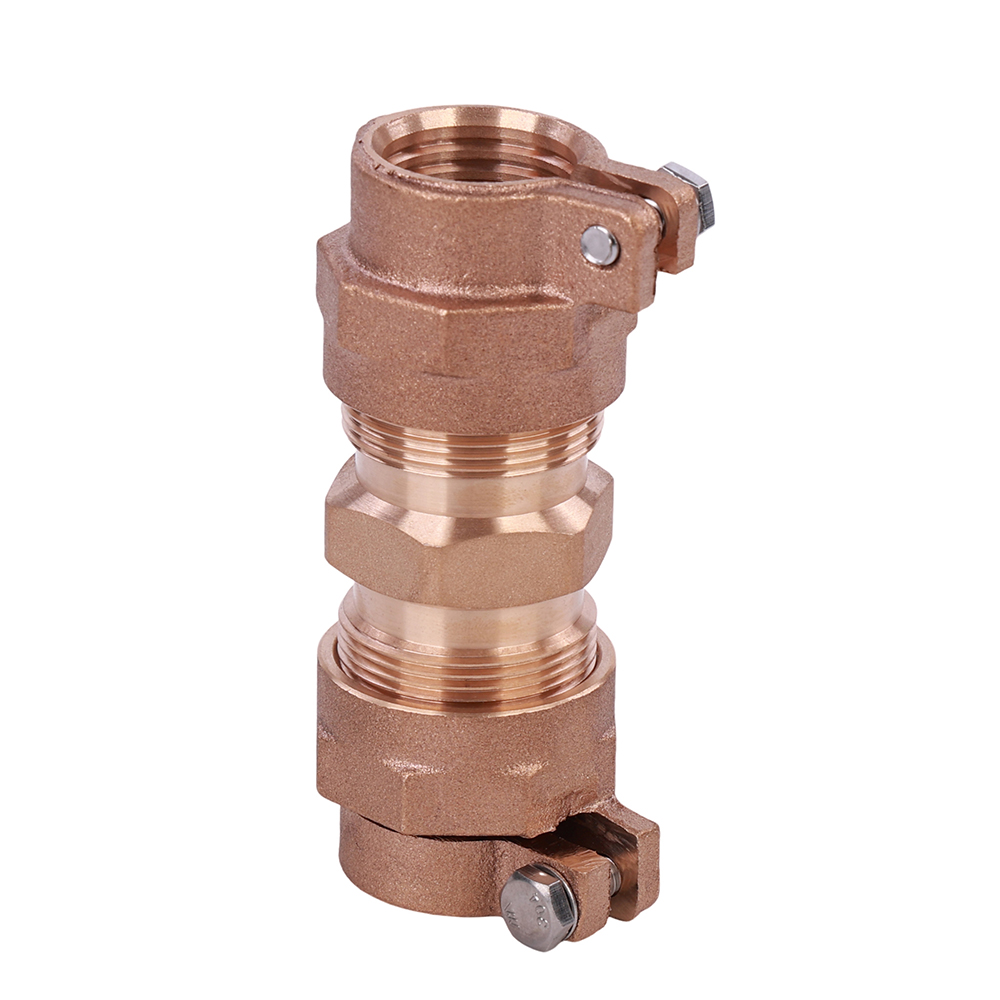

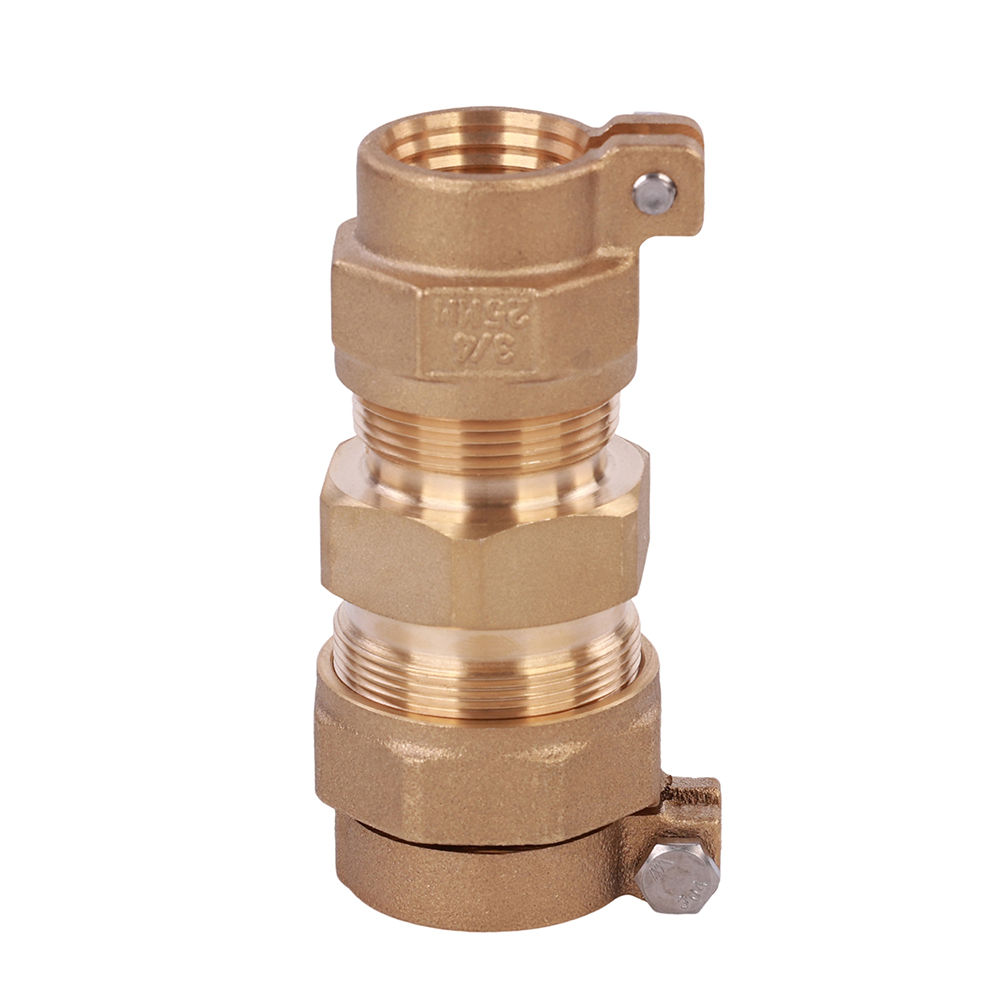

Bronze connector with pack joint nut NR-I011

Product name: Bronze connector with pack joint nut NR-I011
our Bronze Connector with Pack Joint Nut, a robust and versatile fluid connection solution designed for use in a wide range of industrial, commercial, and residential applications. Crafted from high-quality bronze alloy, this connector ensures superior corrosion resistance, durability, and reliability. The pack joint nut provides a secure, leak-proof connection, making it ideal for high-pressure and high-temperature environments.

Model:
NR-I011
Brand:
Raising
Unit price:

Quantity:
Availability:





Inquire Add to Basket

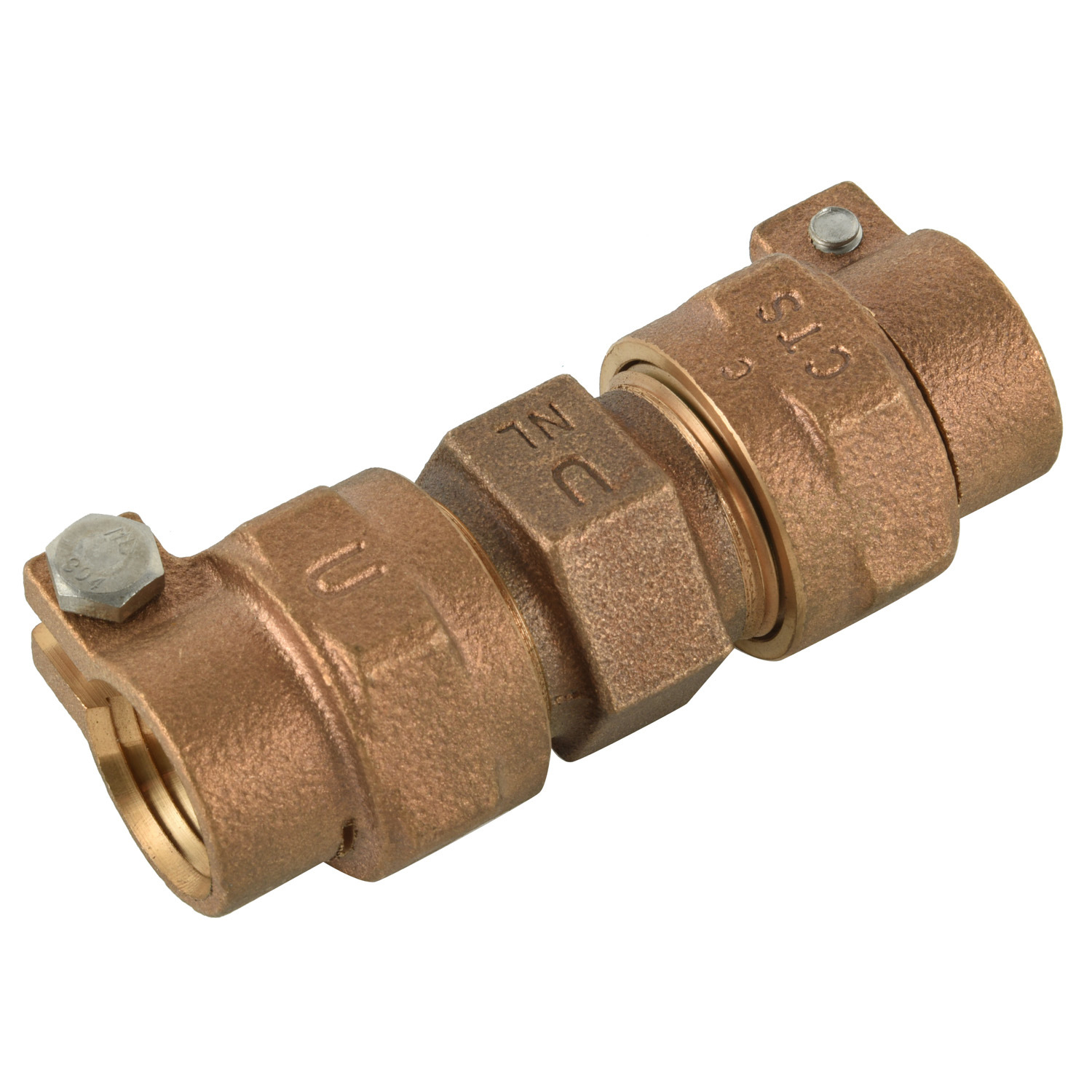

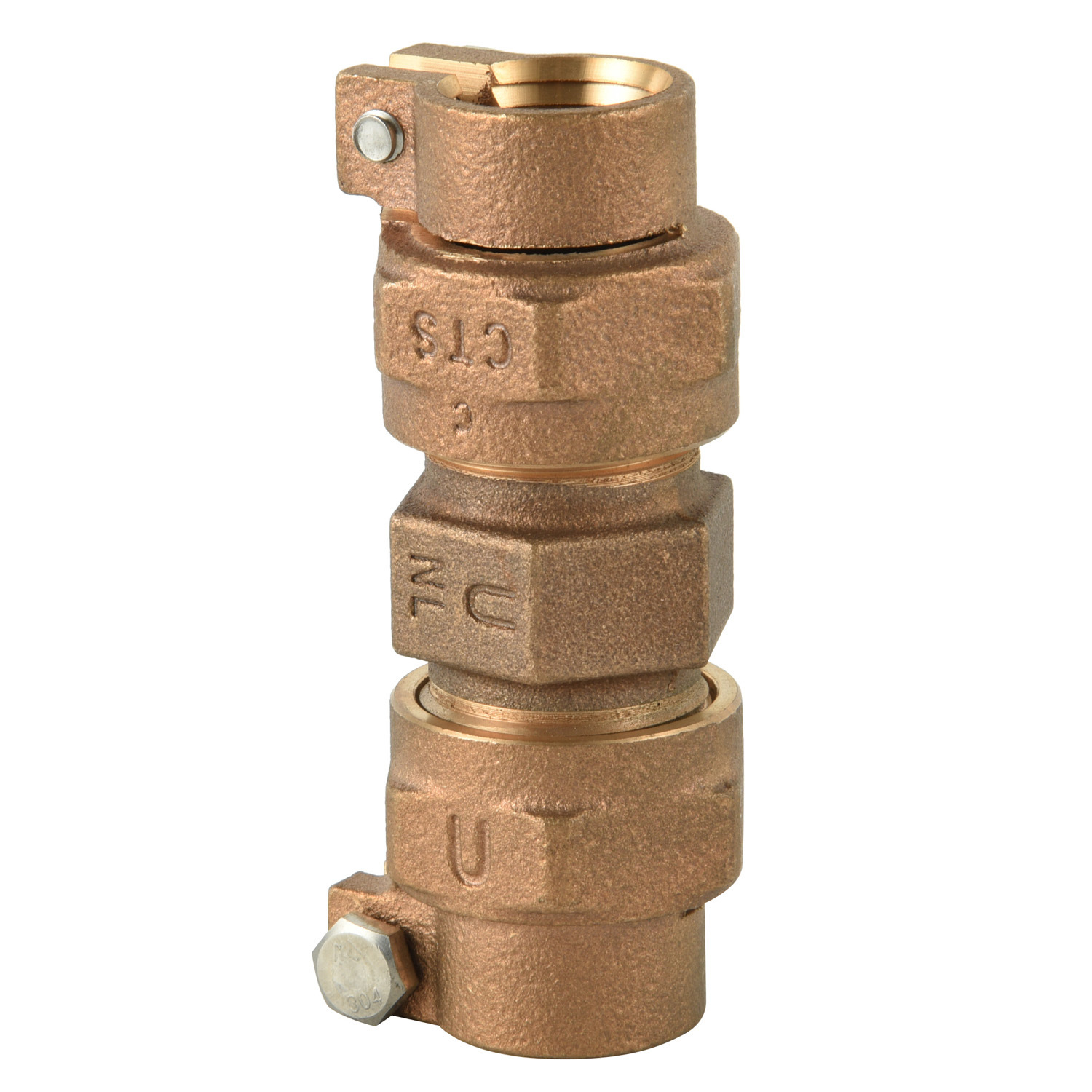

Bronze Adaptor with Pack Joint Nut Bronze connector with pack joint nut Bronze coupling with pack joint nut Bronze coupling

Product Description

Specifications of Bronze connector with pack joint nut

Model:NR-I011	Technical Standard
	Material	Lead free bronze C89833,C87850,bronze C83600,C84400 etc
	Working Medium	Water and Non-corrosive liqid
	Working Pressure	16 bar
	Working Temperature	-20°C to 120°C
	Size Range	1/2'' x20mm,3/4"x25mm,1"x32mm
	Connection type	Thread(BSP.NPT),pack joint nut
	Production method	Casting + machining
	Standard Ref	AWWA Standard 800(ASTM B62 and ASTM B-584

Advantages of Bronze coupling with Pack Joint Nut

Compression Sleeve Couplings

In a compression sleeve coupling, improper adjustment can lead to problems. Just like in other types of couplings, too much or too little of certain factors can be detrimental. For instance, excessive resistance to mechanical pull - out might cause severe damage. Imagine if an excavator accidentally snags a utility line; overly high pull - out resistance could mean tearing the entire connection apart.

Our Compression Sleeve Couplings feature a well - balanced design suitable for every kind of pipe. Insert the pipe into the fitting. Then, tighten the EPDM - gasketed compression nut to achieve a leak - proof seal, and secure the compression sleeve. You'll obtain the ideal amount of pull - out resistance for even the most substantial backfill loads, without going overboard.

Compression Sleeve Connections - How the Compression Sleeve Works

Tightening the large compression nut of the compression sleeve presses an EPDM bevel - shaped gasket, creating a watertight seal around the pipe or tubing.
For copper or plastic tubing and pipes, there is a locking mechanism in the form of a split compression ring. By tightening a stainless - steel screw, this ring is firmly drawn down onto the tubing or pipe. The precisely machined grooves on the ring ensure a firm grip.
For iron pipes, a stainless - steel set screw on the compression sleeve digs into and locks onto the pipe to hold it in place.
