NR-I015
Raising
| Quantity: | |
|---|---|
Technical Chart of Brass female adaptor compression nut
Model:NR-I015 | Technical Standard | ||||
| Material | Brass CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | 1/2"x20mm,3/4"x25mm,1"x32mm | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Forging + machining | ||||
| Standard Ref | BS or ISO Standard | ||||
Product Advantage:

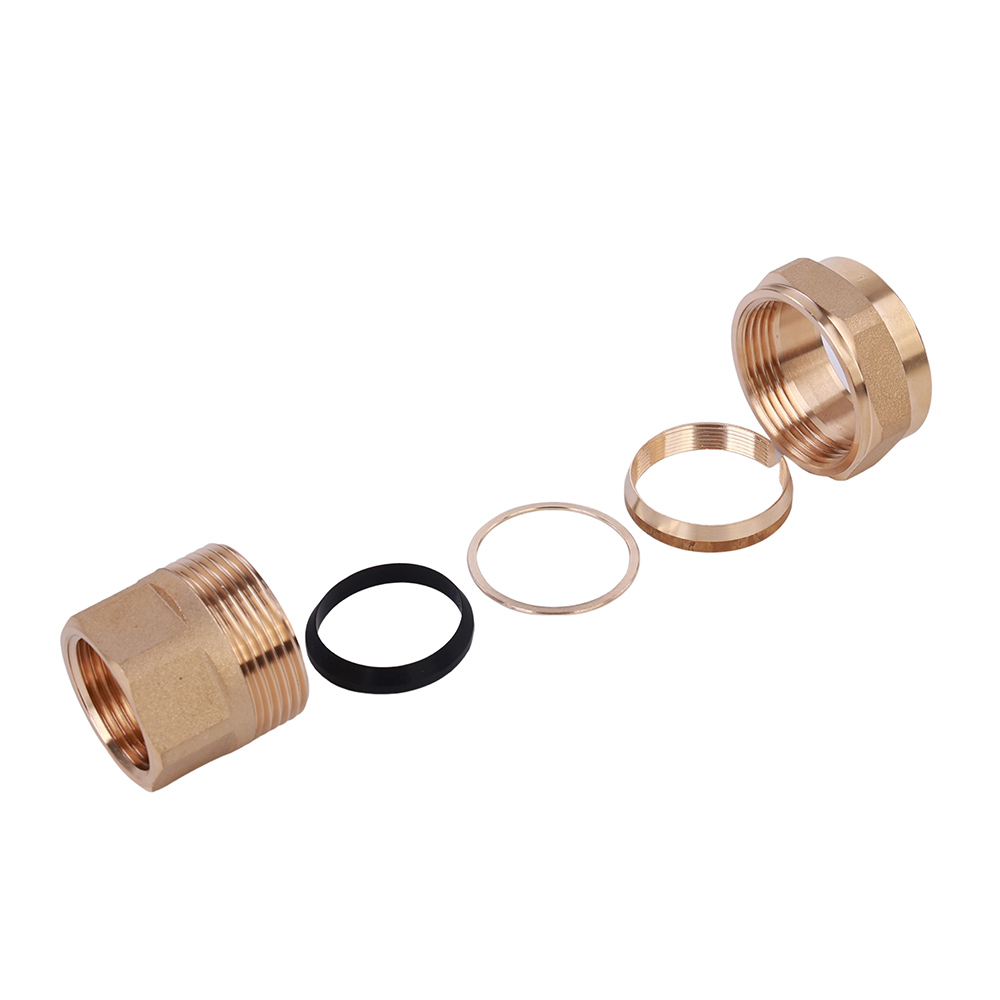

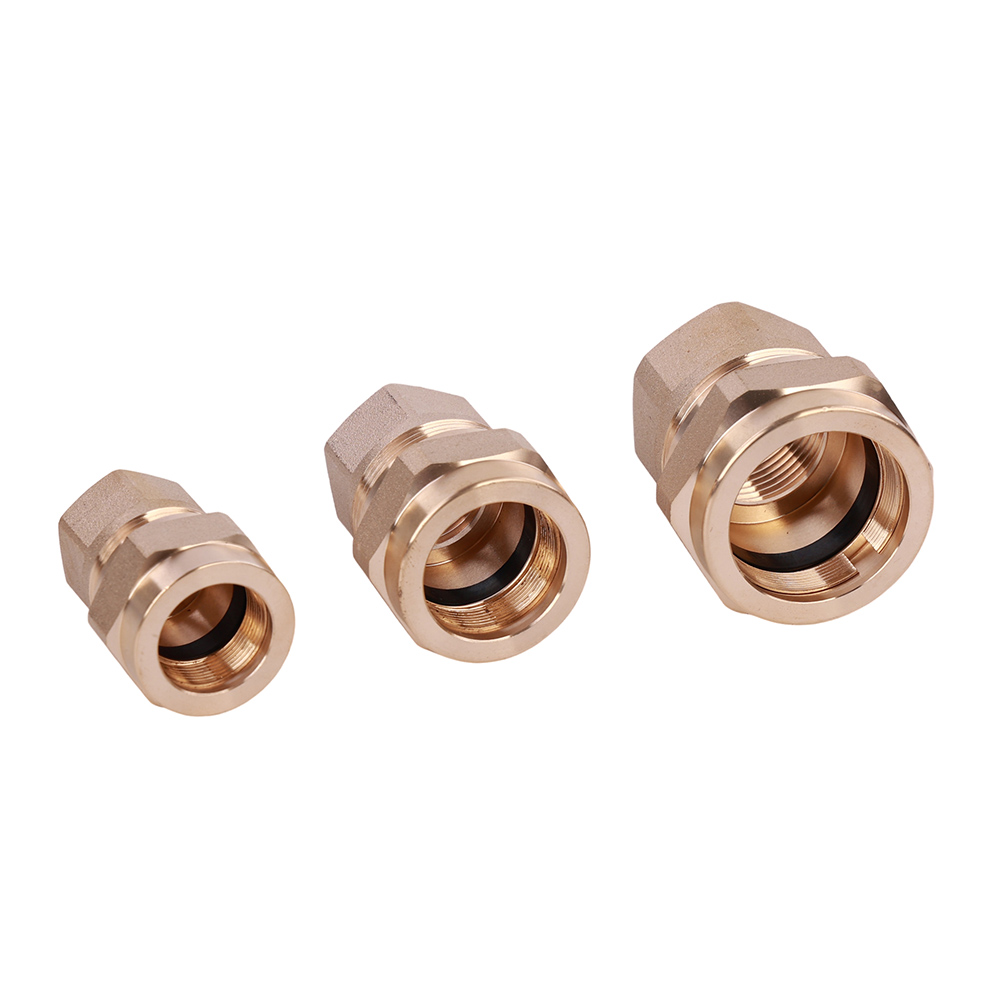

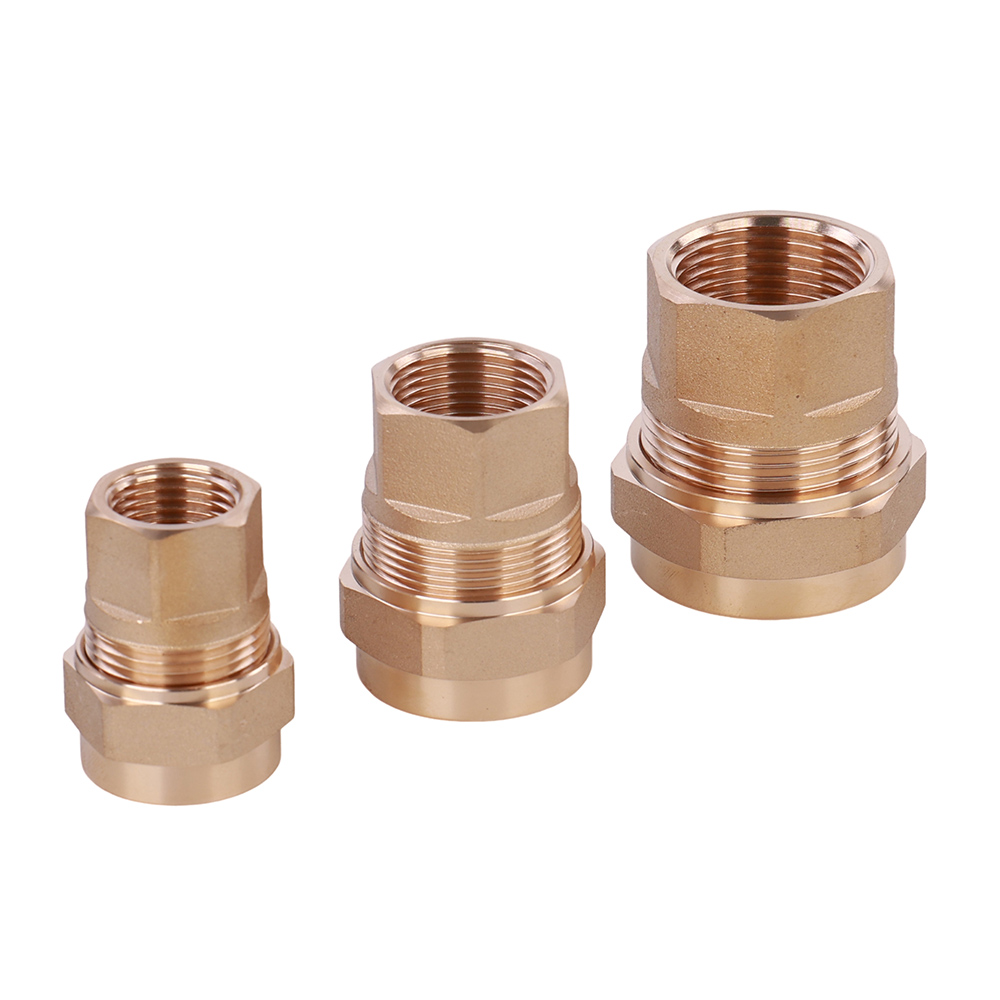

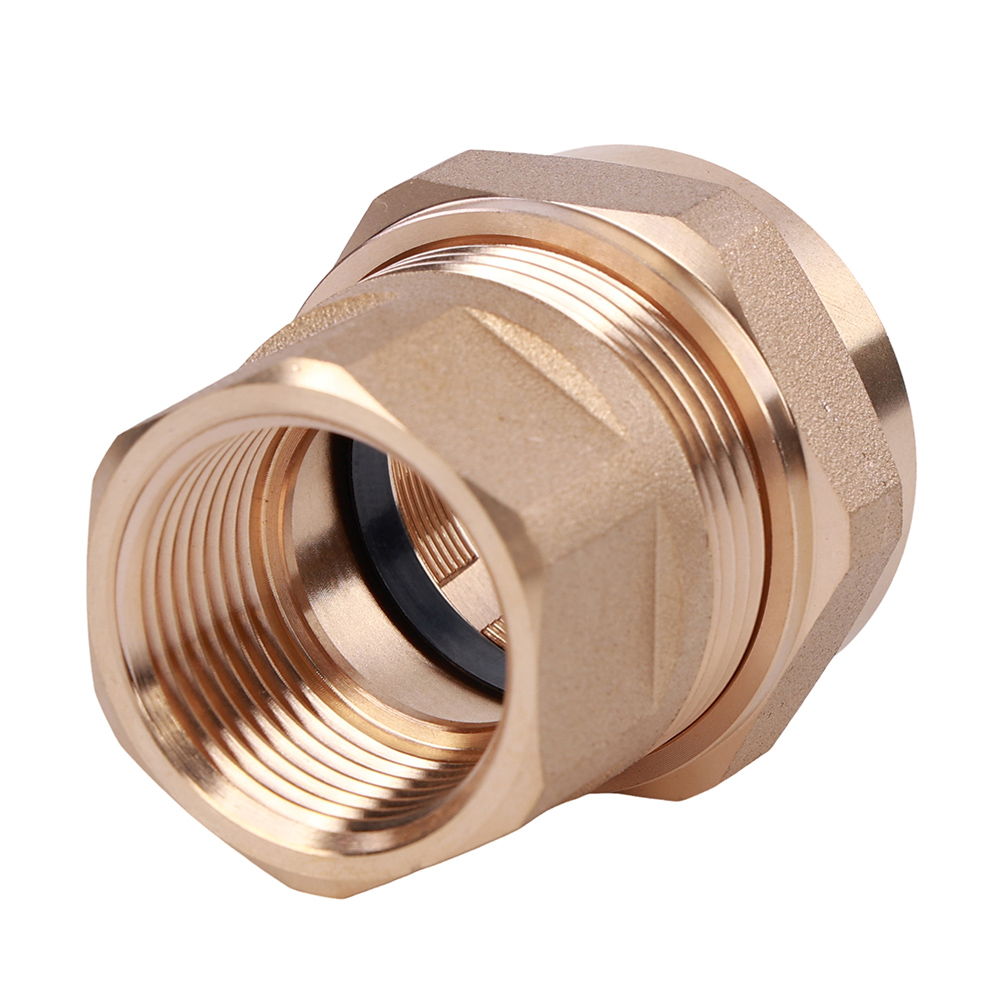

This is a Forging Brass Female Compression Coupling designed to connect PE (polyethylene) pipes quickly and securely. Made from forged brass (a tough, long-lasting metal), it features a "female" threaded end and a compression sleeve that grips the PE pipe tightly without welding or glue.
Key Features:
Strong & Durable: Forged brass resists corrosion and handles high pressure.
Easy Installation: No special tools needed – just tighten the nut to lock the pipe in place.
Leak-proof Seal: Compression design creates a tight, reliable connection.
PE Pipe Friendly: Specifically made for polyethylene pipes, ensuring compatibility.
Common Uses:
Connecting PE pipes in water supply systems (e.g., irrigation, plumbing).
Repairing or extending pipelines in residential or agricultural projects.
Industrial fluid transport systems (water, air, non-corrosive liquids).
In short: A rugged, no-fuss connector for PE pipes that’s built to last and easy to install
