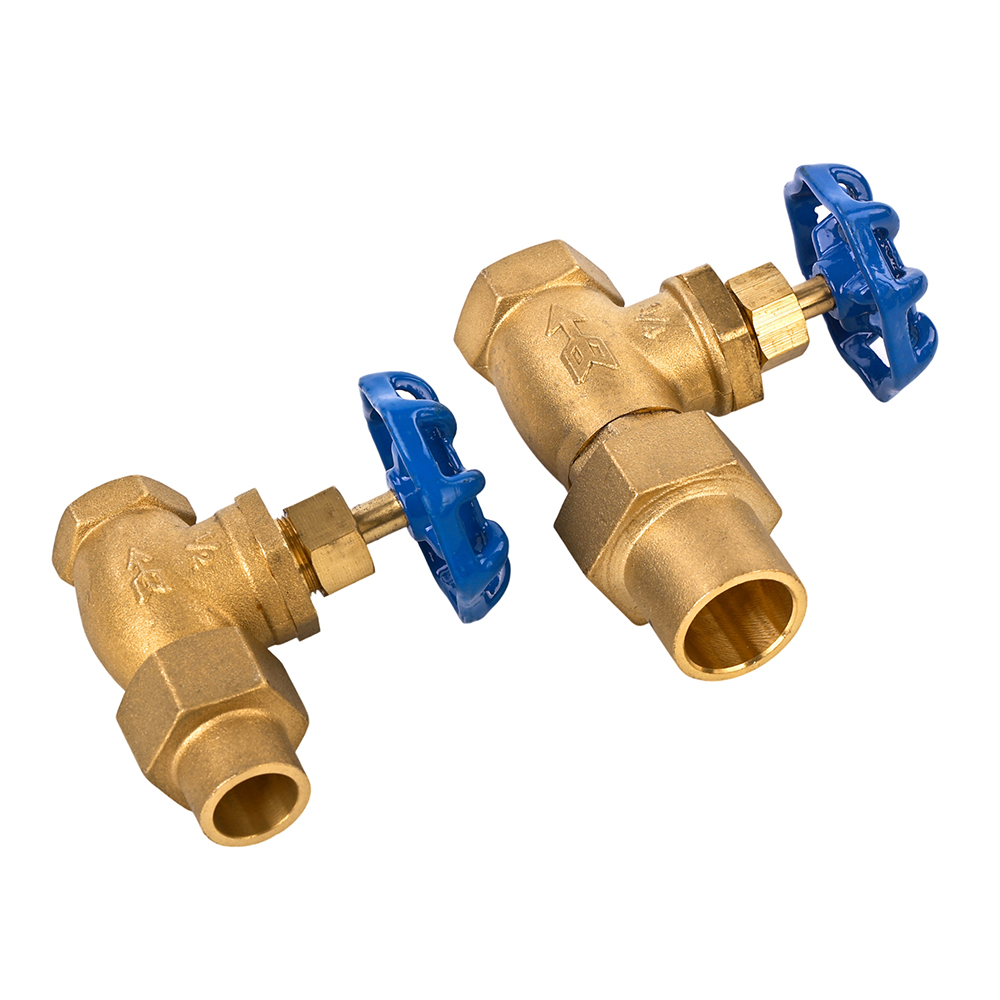

Can the wrong Stop Valve size reduce flow control? Yes, and it may also increase pressure loss. Proper sizing depends on flow, pressure, media, and valve capacity. In this guide, you will learn how to size a Stop Valve for stable flow and reliable operation.
A reliable Stop Valve sizing calculation starts with process conditions rather than nominal pipe size. Industry sizing guidance also recommends selecting valve capacity from flow requirements instead of line size alone.
Start by identifying minimum, normal, and maximum flow requirements. Each condition tells you something different about valve performance.
Maximum flow determines whether the valve has enough capacity. Normal flow shows how it will perform during regular operation. Minimum flow helps identify poor low-flow control.
The required Stop Valve flow rate should come from actual system demand. Avoid selecting capacity only from pump maximum output.
Liquid, gas, and steam applications need separate calculations. Their physical behavior changes significantly under pressure.
Next, identify the upstream and downstream pressures. Their difference gives the pressure drop across the valve.
Do not use the total pipeline pressure loss automatically. Pipes, elbows, filters, reducers, and equipment also consume pressure.
For incompressible liquid service, required Cv depends strongly on flow and differential pressure. Greater available differential pressure can pass more flow through the same valve.
However, very high pressure drops need additional checks. Cavitation or liquid choking can limit practical flow capacity. IEC-based procedures use the lower value between actual and allowable sizing pressure drop.
The Stop Valve flow coefficient provides a useful sizing reference. Cv expresses valve capacity using U.S. customary units.
For simple liquid service, the basic relationship is:
Cv = q × √(SG / ΔP)
Here, q is liquid flow in U.S. gallons per minute. SG represents specific gravity, while ΔP represents valve pressure drop.
Metric systems often use Kv instead. A commonly used relationship is:
Kv ≈ 0.865 × Cv
The calculated coefficient provides the required flow capacity. It does not automatically determine the nominal valve diameter.
Once Cv is known, compare it against manufacturer performance data. Select a valve whose rated capacity meets the required operating conditions.
A DN50 pipe does not always require a DN50 valve. System flow conditions may support a different valve size.
Commercial industrial ranges can cover many nominal diameters. One referenced globe and Stop Valve range lists DN10 through DN600 configurations.
This wide range shows why performance-based selection matters. Pipe diameter should remain an installation factor, not the only sizing rule.
Do not test the selection at one operating point. Check the valve across realistic system conditions.
At maximum demand, confirm adequate Stop Valve flow capacity. Also verify that pressure loss remains acceptable.
At normal demand, the valve should operate in a practical position. At minimum demand, avoid extremely small openings whenever possible.
Startup conditions may also differ from normal operation. Shutdown cycles and peak demand deserve separate checks.
Some reserve capacity helps accommodate process variation. However, more capacity is not always better.
DwyerOmega recommends increasing calculated Cv by roughly 10% to 15% in its control-valve sizing guidance. This margin accounts for changing operating conditions.
The exact margin depends on valve design and service requirements. Avoid applying a fixed margin without reviewing manufacturer data.
Tip： Ask suppliers for Cv or Kv data at the required valve size before approving a bulk order.
Stop Valve size depends on several interacting process variables. Changing one factor can change the required capacity.
Higher required flow usually needs greater valve capacity. However, flow capacity should not be considered alone.
A small passage can increase fluid velocity. High velocity can increase noise, vibration, erosion, and energy losses.
Large flow areas reduce restriction. Yet excessive valve size can weaken adjustment at low flows.
Two pipelines can use the same pipe diameter. They may still require different Stop Valve sizes.
A system with a larger pressure differential can drive more flow. A system with limited differential pressure needs more valve capacity.
This relationship makes Stop Valve pressure drop central to sizing. It should always be measured or calculated carefully.
Water offers a straightforward starting point. Other fluids require additional property data.
Higher liquid specific gravity changes the required Cv. Viscous oils may need further correction during detailed engineering.
Gas and steam also respond to pressure changes differently. Their density changes as pressure and temperature change.
Temperature matters for both flow calculations and material selection. One referenced industrial valve range lists different temperature limits for carbon steel, stainless steel, and high-temperature alloys.
Pipe size still matters during installation. It affects velocity, reducers, connection geometry, and surrounding pressure losses.
System resistance also includes elbows, tees, filters, heat exchangers, and other equipment. These components influence available valve pressure drop.
Note： Valve size and pipe size are related, but they are not always identical.
Sizing influences both hydraulic performance and operating behavior. Understanding both extremes helps avoid common procurement errors.
An undersized Stop Valve creates excessive resistance. It may not deliver the required maximum flow.
Higher velocity can increase noise and erosion. The system may also consume more pumping energy.
The valve may remain almost fully open during normal operation. That leaves little reserve capacity for higher demand.
An oversized valve can pass much more flow than required. This may appear safe during initial selection.
However, usable adjustment can become concentrated near the closed position. Small stem movements may then create large flow changes.
The larger valve may also cost more. It can increase weight, installation space, and actuator requirements.
The right size provides enough maximum flow without excessive capacity. It also maintains practical behavior during normal operation.
For frequent throttling, valve design matters as much as size. Globe-style configurations generally suit throttling better than valves intended mainly for isolation.
The Stop Valve size for pipe should therefore reflect service duty. Buyers should consider both shutoff and flow-adjustment requirements.
Sizing Condition | Typical Result | Main Risk |
|---|---|---|
Too Small | High restriction | Excessive pressure drop |
Correct Size | Stable practical flow | Balanced system performance |
Too Large | Excess capacity | Poor low-flow adjustment |
Different media require different sizing approaches. One formula cannot cover every fluid condition.
Water provides the simplest Stop Valve Cv calculation example. Flow rate, specific gravity, and pressure drop are the main inputs.
For water near standard conditions, specific gravity is approximately one. This simplifies initial Cv calculations.
After calculating Cv, compare the result against supplier capacity tables. Then select the nearest practical valve configuration.
A final check should include maximum velocity, pressure rating, and connection dimensions.
Oil density may differ significantly from water. Specific gravity must therefore enter the sizing calculation.
Viscosity can also matter for thicker liquids. Highly viscous media may require correction beyond a basic water-based equation.
Material compatibility also becomes more important. Seals, packing, seats, and body materials must tolerate the fluid.
Gas and steam are compressible fluids. Their sizing requires more process information.
Upstream pressure, downstream pressure, temperature, density, and flow conditions all influence required Cv. Critical flow can also occur.
Do not apply the basic water equation directly. Standard sizing methods provide different equations for liquid, gas, and steam service.
Tip： Send pressure, temperature, flow, and media data together when requesting supplier sizing support.
Correct hydraulic sizing is only part of selection. The valve must also survive its mechanical operating conditions.
Nominal diameter does not define pressure capability. A valve's pressure class must be checked separately.
Review maximum operating pressure before selection. Then verify the appropriate PN or ANSI Class.
For example, one referenced industrial product range lists PN1.6 through PN32.0 MPa. It also lists Class 150 through Class 1500 configurations.
Pressure ratings should also be reviewed at operating temperature. Material strength can change as temperature rises.
Connection type affects installation and service suitability. Threaded connections are common in smaller piping systems.
Flanged designs simplify removal and maintenance. They also suit many larger industrial installations.
Welded connections are often considered for demanding pressure or temperature conditions. They also reduce external joint leakage paths.
One referenced manufacturer describes threaded connections for smaller sizes. It lists flanged and welded designs for larger or more demanding applications.
Never review pressure rating in isolation. High temperature may reduce allowable operating pressure.
Check the manufacturer's pressure-temperature chart. Compare it against maximum design conditions rather than normal conditions alone.
Material does not directly replace hydraulic sizing. However, it strongly affects durability and service compatibility.
Bronze provides useful corrosion resistance in many water applications. It is often used in marine piping systems.
The referenced JIS marine product uses bronze construction and a flanged connection. Its listed application includes industrial and water service.
Material selection should still consider actual water chemistry. Seawater service may require additional corrosion review.
Carbon steel is widely used in industrial systems. It suits many water, steam, and general process conditions.
Stainless steel provides improved corrosion resistance. It can suit aggressive media or cleaner process environments.
One referenced product family lists WCB carbon steel, CF8, and CF8M options. It associates stainless grades with corrosive service conditions.
Consider every wetted component during selection. The body material alone is not enough.
Seats, discs, stems, packing, and seals contact the process. Each part must support the required temperature and chemical environment.
Stainless steel components and PTFE sealing are common examples. A referenced small-bore valve product uses CF8 or CF8M bodies and PTFE-based sealing components.
Note： Request a complete material specification when corrosion resistance is a project requirement.
Even experienced buyers can make sizing errors. Most problems come from incomplete process data.
Pipe matching is simple, but it can be misleading. A DN80 line does not prove that DN80 is hydraulically ideal.
Calculate flow capacity first. Then review installation compatibility.
Using total system pressure loss can distort the result. Only part of that pressure loss occurs across the valve.
An incorrect ΔP produces an incorrect Cv. This can lead directly to oversizing or undersizing.
Extra capacity can appear attractive during purchasing. However, excessive oversizing reduces useful operating range.
Use a reasonable engineering margin. Avoid jumping several valve sizes without technical justification.
A system may change after installation. Pump upgrades can increase available flow and pressure.
Production expansion can also raise demand. Future requirements should be discussed before final valve selection.
For B2B projects, record expected system changes. This information helps suppliers recommend more suitable configurations.

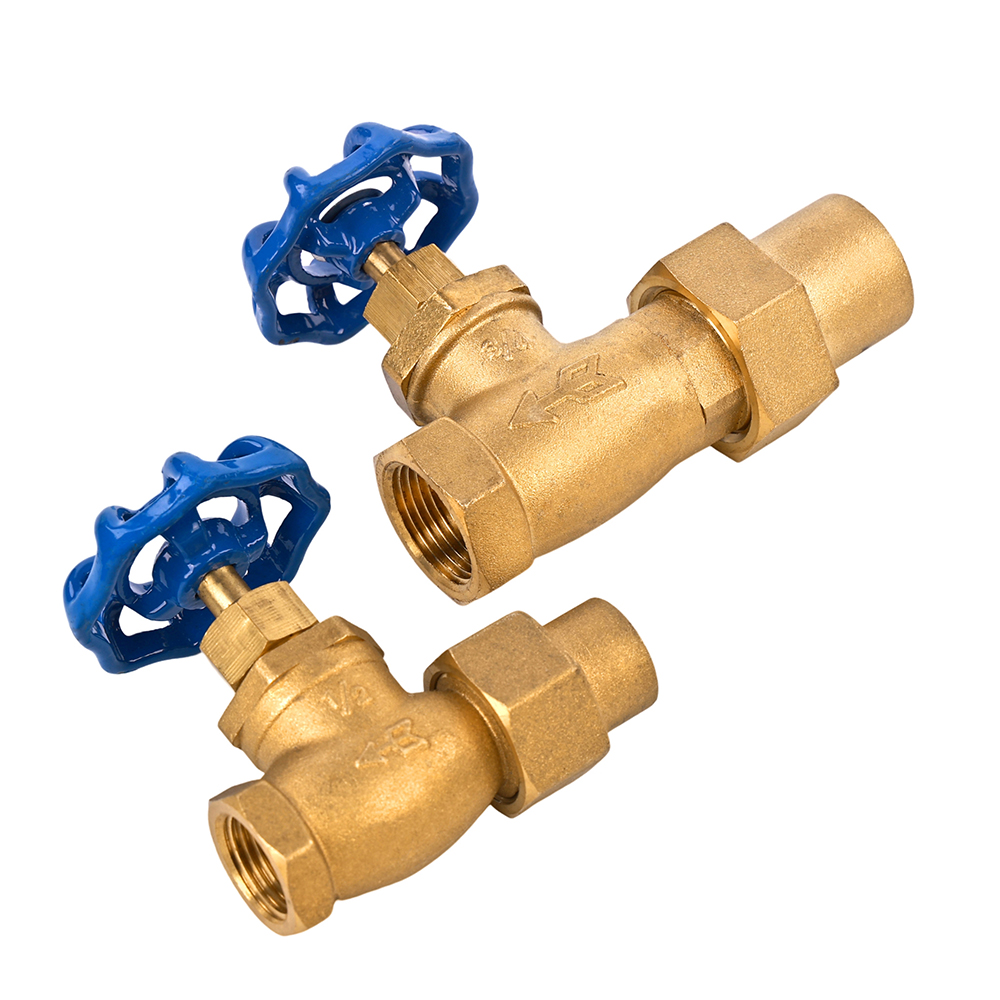

Correct Stop Valve sizing starts with flow rate, pressure drop, Cv, media, and operating conditions. Proper sizing helps maintain stable flow, reduce pressure loss, and prevent costly oversizing. Ninghai Raising Copper Industry Co., Ltd. provides Stop Valve solutions for reliable fluid control. Its valve manufacturing, testing, and service capabilities support durable performance for industrial and water applications.
A: Stop Valve sizing matches valve capacity to required flow, pressure drop, media, and operating conditions.
A: Use flow rate, differential pressure, specific gravity, and Cv or Kv before selecting a nominal valve size.
A: An oversized Stop Valve can reduce low-flow control and increase purchase and installation costs.
A: Not always. Stop Valve size should also reflect flow capacity, pressure loss, temperature, and media conditions.
