Where are brass valves used most often? A Brass Valve controls, isolates, or directs fluid inside piping systems.
It is common in plumbing, water meters, utilities, and industrial equipment. This guide explains key applications, valve types, and selection factors.
A brass valve can start, stop, isolate, or direct compatible fluids through a piping system. Its exact function depends on the valve structure, connection type, pressure rating, and working medium.
Common brass valve applications in plumbing include water supply lines, service connections, fixtures, tanks, and water meters. Specialized products can also serve selected steam, oil, gas, hydraulic, or pneumatic systems. However, buyers must verify each valve specification before using it with those media.
Water control is one of the most common brass valve applications. These valves can isolate sections of residential or commercial plumbing during maintenance.
A brass valve for water systems may sit near a fixture, branch line, storage tank, or service connection. When maintenance is required, operators can close the valve instead of shutting down the whole system.
Brass ball valves are especially common for simple on-off control. Their quarter-turn operation allows fast opening and closing.
Commercial brass ball valve ranges are currently marketed for household, utility, and water-industry applications.

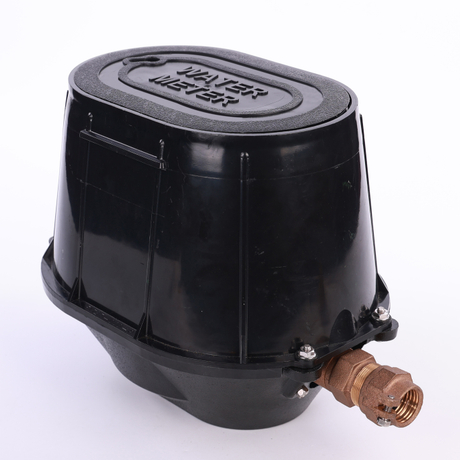

Water-meter installations often need a reliable isolation point. A valve placed before or after the meter allows technicians to stop flow during replacement or inspection.
Some utility systems also require access control. Lockable brass valves help prevent unauthorized operation and can support property-management or metering applications.
For example, Bestway currently lists PN16 lockable brass water-meter valves. Available designs include magnetic locks, anti-theft handles, and swivel-nut connections. Some models use CW617N brass and BSP threaded connections.
Brass valves can also isolate equipment and control compatible process fluids. They are often selected for smaller piping systems where corrosion resistance, compact size, and threaded installation are important.
Applications may include water treatment equipment, light industrial machinery, service lines, and utility connections.
The referenced manufacturer supplies brass and bronze products across water plumbing, hydraulic, pneumatic, and industrial ranges.
Some brass valves are designed for more than water. Certain products list steam and oil among their approved working media.
One referenced CW617N forged brass valve specifies water, steam, and oil operation. It also lists working pressure between 16 and 25 bar.
This does not mean every brass valve suits steam or oil. Seal material, temperature, pressure, and body design must match the application.
Some manufacturers also produce brass products for hydraulic and pneumatic systems. They may serve isolation or connection functions in compatible equipment.
A brass valve for gas lines requires greater caution. Gas service should only use valves specifically rated and certified for the intended gas, pressure, and local standard.
For example, one current full-port brass ball valve listing specifies water and gas as suitable media. It also provides defined temperature and pressure ratings.
Note: Never assume a water valve can be used for gas, steam, or oil because its body is made from brass.
Compact brass valves can provide local shutoff near equipment. Their threaded connections make installation practical in smaller piping systems.
Straight valves suit inline installations. Angle valves redirect the flow path when pipe orientation changes.
Current Hongxing product listings include PN30 straight and angled brass ball valves using female and male threaded configurations.
Lockable valves provide another specialized use. They allow normal flow control while restricting unauthorized operation.
These products are useful around water meters, utility connections, and managed service lines. Locking methods may include keys, magnetic systems, or special handles.
This shows why answering “what is a brass valve used for?” requires more than one example. Different valve structures solve different flow-control problems.
The basic principle is simple. Internal components change the available flow path inside the valve body.
A brass ball valve contains a rotating ball with a passage through its center. Turning the handle rotates this passage.
When the bore aligns with the pipe, fluid can pass. Rotating the ball by approximately 90 degrees blocks the flow.
This quarter-turn design makes the ball valve useful for frequent isolation. It is simple to operate and gives a clear open or closed position.
Other valve types use different mechanisms. Gate valves raise or lower a gate, while stop valves use another internal closing element.
A full-port ball valve has an internal opening closer to the pipe bore. This creates a relatively straight flow path when fully open.
Reduced-port designs use a smaller internal passage. They can be suitable where compact construction matters more than maximum flow area.
The referenced Bestway water-meter valve uses a full-port configuration. The manufacturer markets this design for water-meter isolation applications.
Straight valves maintain an inline flow direction. They work well when incoming and outgoing pipes remain aligned.
Angle valves change the direction of flow. They can simplify installations where pipe routing turns near equipment, walls, or fixtures.
Neither design is automatically better. The correct choice depends on installation geometry and available space.
There are several types of brass valves and uses. Each internal structure controls flow differently.
Brass Valve Type | Typical Function | Common Application |
|---|---|---|
Brass ball valve | Fast on-off isolation | Plumbing, water meters, equipment |
Brass gate valve | Pipeline isolation | Water and utility lines |
Brass stop valve | Local shutoff | Fixtures and branch connections |
Angle brass valve | Shutoff plus direction change | Compact installations |
Lockable valve | Controlled isolation | Water meters and utilities |
A ball valve is usually selected for quick opening and closing. Its quarter-turn operation makes it convenient for service isolation.
Products may use straight, angled, lockable, full-port, or reduced-port designs. Connection options can include female-female or male-female threads.
This variety makes brass ball valves useful across plumbing, water-meter, household, and industrial systems.
Gate valves use a different operating mechanism. They usually open or close through several handle turns.
They can suit pipeline isolation where rapid quarter-turn operation is not required.
Stop valves provide local shutoff near fixtures, appliances, or branch lines. The referenced supplier currently manufactures brass ball, gate, and stop valves within its main valve range.
Lockable valves combine fluid isolation and access control. This makes them useful for utilities and water-meter systems.
Designs can include magnetic locking mechanisms, special handles, extension pipes, or swivel connections.
Buyers should select these features according to the meter installation and operating procedure.
Tip: Define the required valve function first. Then compare materials, dimensions, pressure ratings, and connection types.
Brass offers a useful combination of machinability, mechanical strength, and corrosion performance for many plumbing applications.
Brass is widely used in water-related components because suitable grades can provide good service performance under many normal plumbing conditions.
However, water chemistry matters. Aggressive water can affect certain brass compositions.
DZR brass or approved lead-free alloys may be required in some applications. Buyers should match the alloy to local water conditions and regulatory requirements.
Brass can be forged, cast, machined, threaded, and finished into detailed valve components.
Forging can create strong, compact valve bodies. Casting may support other geometries and product requirements.
The referenced Ningbo manufacturer states that its valve products are manufactured using both forging and casting processes. It also lists several brass compositions, including CW614N and CW617N.
Threaded connections make brass valves practical for many smaller piping systems.
Common thread options include BSP, BSPT, NPT, and NPS, depending on the manufacturer and target market. Current referenced products include several of these connection standards.
This variety allows buyers to match valves to regional plumbing systems more easily.
Choosing the right valve requires more than matching the pipe diameter.
The valve must suit the medium, working pressure, temperature, connection standard, installation direction, and required flow function.
Start by identifying what flows through the system.
Water, gas, steam, oil, compressed air, and other fluids place different demands on seals and valve materials.
Check the manufacturer's approved media list. Do not rely only on the phrase “brass valve.”
System pressure should remain within the valve's rated operating range.
Buyers should also consider pressure fluctuations and operating temperature. These factors may affect seals and long-term reliability.
Current referenced products illustrate how ratings vary. Bestway markets PN16 water-meter valves, while Hongxing currently lists PN30 brass ball valve configurations.
These examples should not be treated as universal brass valve ratings.
Confirm nominal size and thread standard before ordering.
Check whether the installation requires male, female, union, swivel, or another connection format. Straight and angled structures also affect installation.
Imported projects require special attention to BSP and NPT differences. Similar nominal sizes do not always mean compatible threads.
Brass composition can vary significantly. Available materials may include CW614N, CW617N, DZR brass, or lead-free brass.
The referenced manufacturer lists CW614N, CW617N, DZR, and lead-free materials among its production options.
Potable-water projects may require specific drinking-water approvals. Buyers should verify the applicable standard for the destination market.
Tip: Include medium, pressure, temperature, size, thread standard, brass grade, and certification requirements in every valve RFQ.
A brass ball valve is a strong option when the main requirement is quick isolation.
Quarter-turn operation allows users to open or close a line quickly.
This makes ball valves useful near water meters, service connections, equipment, and frequently isolated piping.
Full-port versions can also provide a relatively open flow path when fully opened.
Gate valves use a multi-turn mechanism. They may suit applications where slower opening and closing is acceptable.
The selection should depend on operating requirements rather than a simple “ball versus gate” rule.
A buyer should consider operating frequency, flow needs, available space, maintenance, and project standards.
An angle valve can simplify pipe routing in confined areas. A lockable valve adds access control where unauthorized operation is a concern.
Specialized water-meter products combine these functions in several configurations. Current Bestway listings include straight, angle, swivel, and anti-theft lockable designs.
B2B valve purchasing requires technical verification before price comparison.
Request the exact brass grade rather than accepting a generic material description.
Also confirm whether the body is forged or cast. Ask suppliers for material documentation when the project requires traceability.
For potable-water or regulated markets, confirm relevant compliance separately.
Leak testing helps verify valve sealing before shipment.
Ask the supplier about testing pressure, test medium, inspection frequency, and acceptance criteria.
For example, one referenced Bestway lockable valve states that each unit receives air testing at 0.6–0.8 MPa.
This is a product-specific test specification rather than a universal industry requirement.
Commercial projects may require custom logos, dimensions, handle colors, threads, or surface finishes.
Current products show natural brass, nickel-plated, and chrome-plated options. Thread choices may include BSP, BSPT, NPT, or NPS.
Confirm whether customization changes MOQ, tooling, lead time, testing, or certification.
Ask for samples when dimensions or installation compatibility remain uncertain.
MOQ can vary greatly between suppliers and valve types. Current referenced listings show commercial minimum quantities from about 1,000 pieces upward for several models.
Buyers should also review inspection procedures, certifications, packaging, warranties, and delivery terms.
The referenced Ningbo manufacturer lists ISO 9001 plus several product-related certifications across its wider range. Specific certificates should still be confirmed for the exact valve being purchased.
Tip: Compare suppliers using the same technical specification sheet before comparing unit prices.
Brass valves are widely used for water, plumbing, utilities, and industrial fluid control. Buyers should match valve type, pressure, temperature, connection, and brass grade to the application. Ninghai Raising Copper Industry Co., Ltd. provides brass valve solutions focused on reliable flow control, durable construction, and consistent quality. Its manufacturing and customization services help B2B buyers meet project specifications and long-term system requirements.
A: A Brass Valve controls, isolates, or directs water and other compatible fluids in piping systems.
A: They are common in plumbing, water meters, utilities, equipment, and selected industrial systems.
A: A Brass Valve offers practical corrosion resistance, strength, machinability, and reliable threaded connections.
A: Check media, pressure, temperature, size, thread type, brass grade, and valve design.
A: Not always. Ball valves suit quick shutoff, while gate valves serve different isolation needs.
