What happens when a water meter needs repair? A Water Meter Valve helps stop the flow quickly. It supports maintenance, emergency shutoff, and controlled access. In this guide, you will learn what a Water Meter Valve does, where it is installed, and how to choose the right type.
The main purpose of a Water Meter Valve is water isolation. It lets users stop water without disturbing a larger supply network.
This function supports maintenance, repairs, emergency response, and access control. You can also explore Raising's complete valve and plumbing product range for related water system components.
Water meters sometimes need inspection, calibration, repair, or replacement. Technicians must usually isolate the incoming water first.
A water meter shutoff valve provides this isolation point. Once closed, it reduces water entering the meter connection.
This makes meter servicing cleaner and easier. It also reduces uncontrolled water release during disassembly.
The valve does not record water usage. That job belongs to the water meter itself.
A water meter valve may also isolate a connected building. This becomes useful during plumbing repairs or pipe replacement.
Workers can stop water before opening the internal piping. They do not need to shut down a larger network.
This approach can reduce disruption for nearby users. It also gives maintenance teams clearer control over the affected property.
A valve may sit upstream or downstream of the meter. Each position serves a slightly different maintenance purpose.
An upstream valve stops water before it reaches the meter. A downstream valve separates the meter from internal plumbing.
Using valves on both sides offers greater isolation. Technicians can remove the meter while controlling water from both directions.
For buyers comparing different configurations, Raising provides a dedicated Water Meter Valve range for residential, commercial, and utility applications.
Some systems need more than basic shutoff. Utilities may also need controlled access.
A lockable water meter valve prevents casual or unauthorized operation. It may use lock wings, special handles, or magnetic mechanisms.

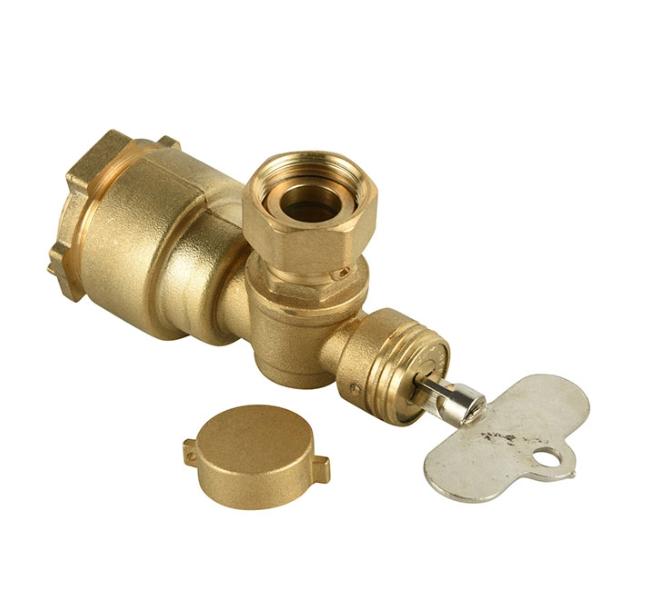

One example is the Brass Angle Water Meter Lockable Ball Valve NR-L005. It combines an angle body, lockable operation, and water meter connections.
Locking features are useful in shared buildings. They also help utilities manage access to important supply points.
Leaks can quickly damage walls, floors, equipment, or stored materials. Fast isolation can reduce that damage.
A working water meter isolation valve provides a practical shutoff point. Users can stop incoming water during urgent repairs.
The valve should remain accessible during normal service. Objects should not permanently block its operating position.
Meter replacement becomes easier when the system has clear isolation points. Workers can remove the meter without draining excessive piping.
This is valuable in residential and commercial applications. It can also improve maintenance efficiency across larger meter networks.
Tip： B2B buyers should confirm valve location and access method before standardizing a meter assembly.
The installation position affects how technicians isolate the system. Local utility practices can also influence final placement.
A valve before water meter installation controls incoming supply. It is often called the inlet or upstream valve.
Closing it stops water before the meter. This position is especially useful during full meter removal.
It can also help during meter-box maintenance. Technicians can work without continuous upstream water pressure.
A downstream valve controls water entering the property piping. It is sometimes called a water meter outlet valve.
Closing this valve isolates the building side. It helps during pipe repairs after the meter.
This position can also help identify leakage zones. Technicians can isolate sections and compare system behavior.
Some systems use valves before and after the meter. This creates a more complete isolation arrangement.
The technician can close both valves before meter removal. This helps limit drainage from connected pipe sections.
For high-service environments, dual isolation can simplify future maintenance. However, actual requirements vary between water authorities.
Valve Position | Main Function | Typical Maintenance Value |
|---|---|---|
Before meter | Stops incoming supply | Supports meter removal |
After meter | Isolates property piping | Supports building repairs |
Both sides | Creates dual isolation | Simplifies meter servicing |
Tip： Always follow local utility rules before changing a water meter valve arrangement.
Many water meter valves use simple manual operation. Ball valve designs are especially common in compact installations.
A manual valve uses a handle or operating mechanism. Turning it changes the internal flow passage.
For many ball valves, a quarter turn changes position. The passage becomes open or closed quickly.
This simple movement supports fast isolation. It also reduces the time needed during routine service.
A ball valve contains a rotating ball inside the body. A bore through the ball forms the flow path.
When aligned with the pipe, water passes through. When rotated across the pipe, flow stops.
Brass construction is common for these applications. It offers useful strength and corrosion resistance for water service.
Lockable valves add a mechanism that restricts handle movement. Only authorized users should change the valve position.
Raising offers a dedicated Lockable Ball Valve range, including magnetic, angle, straight, and other secure valve designs.
This feature can protect controlled water supplies. It also supports clearer responsibility during maintenance.
Water meter valves differ by material, connection, locking method, and system design. The best option depends on actual service conditions.
Brass is widely used in compact water system components. It combines machinability, strength, and useful corrosion resistance.
Different brass grades may suit different project requirements. Lead-free versions can also be considered for potable-water systems.
Brass water meter valves work well in compact assemblies. They are widely used for threaded residential and commercial connections.
Lockable models focus on access control. Their handles may accept a special key or another locking mechanism.
They suit utility-managed systems where unauthorized operation is a concern. They can also help landlords and facility managers control water access.
Another example is Raising's Brass Straight Magnetic Lockable Ball Valve NR-L023. It uses a magnetic locking mechanism and swivel-nut connection for water meter applications.
Some plumbing systems use PPR or plastic-based valve assemblies. They integrate easily into matching piping systems.
These products can support hot and cold water systems. Their lighter construction can also simplify certain installations.
However, pressure and temperature limits must be checked. Connection compatibility remains equally important.
Threaded valves are common around smaller water meters. Their compact design supports residential and commercial assemblies.
BSP and NPT threads are widely used. Buyers must confirm which standard matches existing meter fittings.
Thread selection should never be assumed. Mixing incompatible threads can cause leakage or installation damage.
Tip： Confirm nominal size, thread standard, and sealing method before placing volume orders.
A lock is not necessary for every installation. However, it adds useful control in shared or managed networks.
An unlocked valve can be operated by almost anyone. This may cause unexpected water interruptions.
A locking mechanism limits access. It helps keep the valve in its intended operating position.
This can matter in apartment buildings. It is also useful in commercial facilities and utility-managed meter points.
Tampering can interrupt service or complicate meter management. Controlled valve access helps reduce these risks.
A secure valve can restrict unauthorized meter removal. It can also prevent unwanted changes to water flow.
The valve should still remain serviceable. Authorized technicians need a practical method for opening or closing it.
A locked valve can support clearer maintenance procedures. Teams can control who operates important isolation points.
For B2B projects, standardized locking systems may simplify asset management. Maintenance staff can use consistent procedures across many sites.
This becomes valuable for utilities managing large meter networks.
A good selection must match the meter assembly. Buyers should review more than valve appearance or price.
Start with the nominal meter connection. Then verify pipe size and fitting dimensions.
A DN20 meter connection needs compatible fittings. It does not automatically accept every DN20 valve design.
Check thread dimensions and union connections carefully. Ask for dimensional drawings before large-volume procurement.
Every valve has operating limits. These limits should exceed real system conditions.
For example, Raising's NR-L005 lists a 16-bar working pressure and a temperature range from -20°C to 120°C.
These specifications apply to that model. Other products should be checked separately before selection.
Material selection affects durability and water compatibility. Brass and bronze are common choices in meter assemblies.
Lead-free brass or bronze may be required for some potable-water projects. Local standards should guide final selection.
Buyers should also review stem, seal, and O-ring materials. These parts influence long-term reliability.
Decide whether standard manual control is enough. Utility installations may require lockable operation.
Then review thread type, union nut, pack joint, or other connection details. These features influence installation time and future servicing.
For procurement teams, repeatable specifications matter. Standardization can simplify maintenance across many meter locations.
Even durable valves can develop problems after long service. Early identification helps prevent larger maintenance issues.
A valve may become stiff after long periods. Deposits, corrosion, or internal wear can increase resistance.
Do not apply uncontrolled force. Excessive torque may damage the stem or handle.
A qualified technician should inspect difficult valves. Replacement may be safer than forced operation.
Leaks can appear around threads, unions, stems, or seals. The exact source should be identified first.
Loose connections may need adjustment. Damaged sealing parts may require replacement.
Persistent leakage can indicate a worn valve. In that case, replacing the complete unit may be practical.
Internal debris can prevent complete closure. Worn seats can create the same problem.
A valve that cannot isolate water reduces maintenance control. Meter replacement then becomes more difficult.
Regular valve checks can identify this problem earlier. They also confirm whether emergency isolation remains available.
First check whether the correct key is required. Some systems intentionally restrict operation.
Do not bypass the locking system using improvised tools. This can damage the valve or violate access rules.
Contact the utility or facility manager when authorization is unclear.
Tip： A valve that cannot fully isolate water should be treated as a maintenance issue.
A Water Meter Valve supports safe isolation, maintenance, emergency shutoff, and controlled access. The right valve should match the meter size, pressure, material, connection, and locking needs. Ninghai Raising Copper Industry Co., Ltd. provides reliable water meter valves and lockable valve solutions. Its products help improve system security, simplify maintenance, and support long-term water control applications.
A: A Water Meter Valve controls and isolates water flow during meter maintenance, repairs, replacement, and emergency shutoff.
A: It can be installed before or after the water meter, depending on the required isolation point.
A: A lockable Water Meter Valve helps prevent unauthorized operation and improves access control in managed water systems.
A: Check valve size, pressure rating, material, thread type, temperature range, and locking requirements.
