NR-B025
Raising
| Quantity: | |
|---|---|

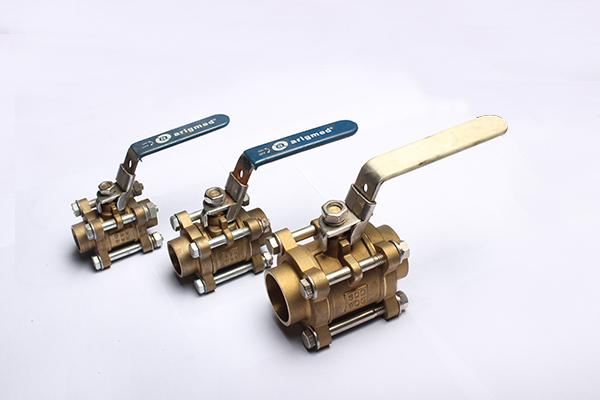

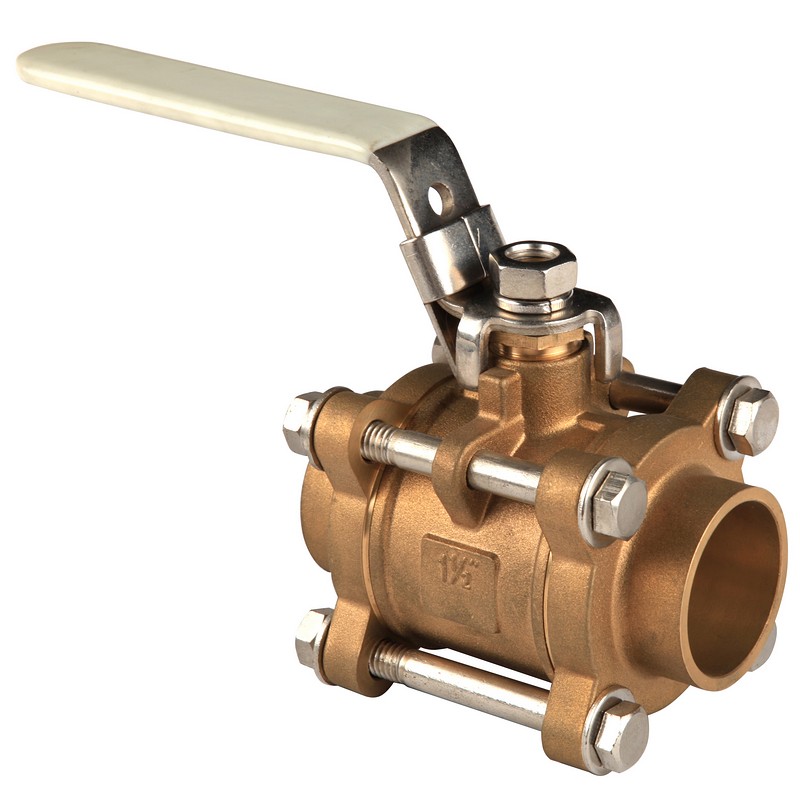

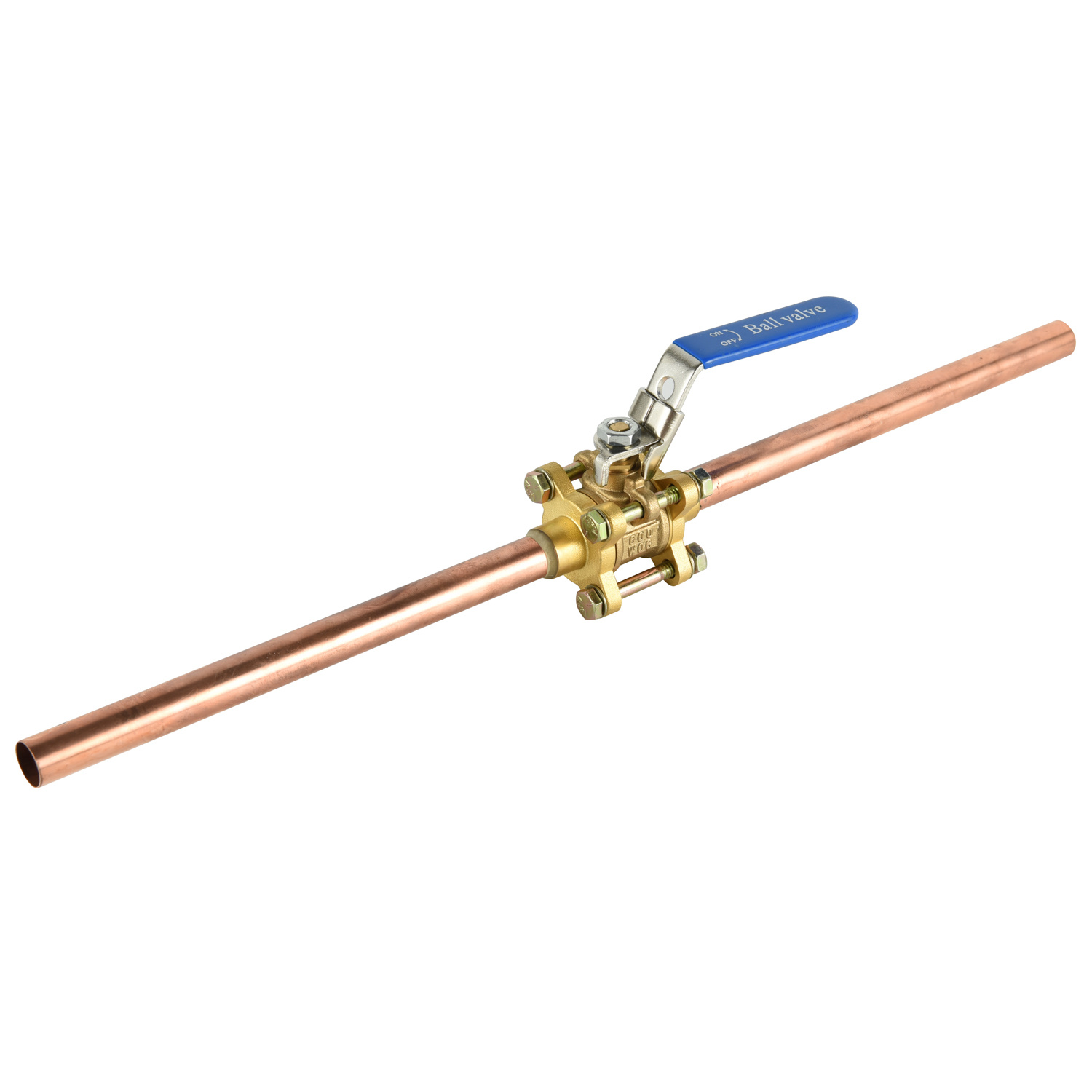

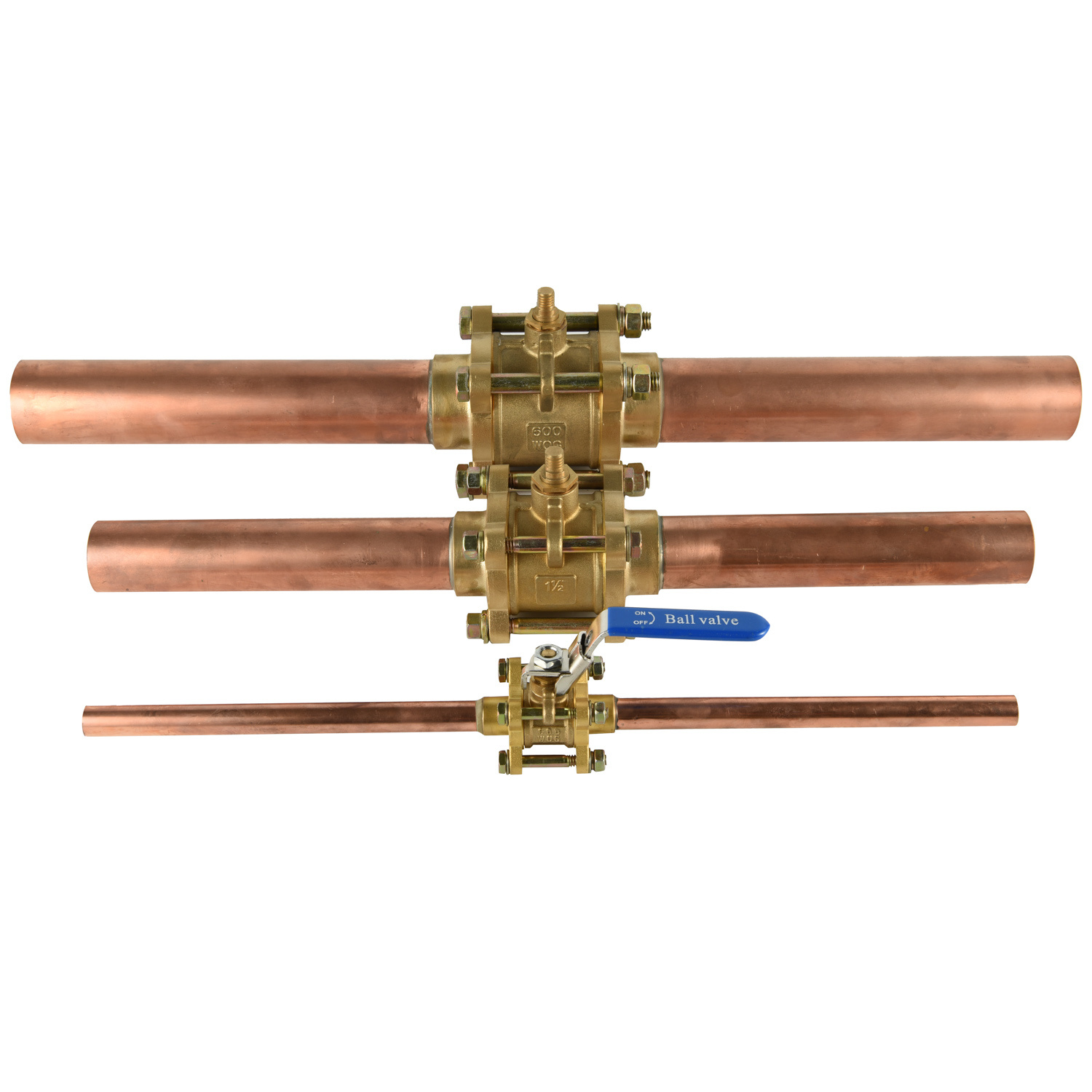

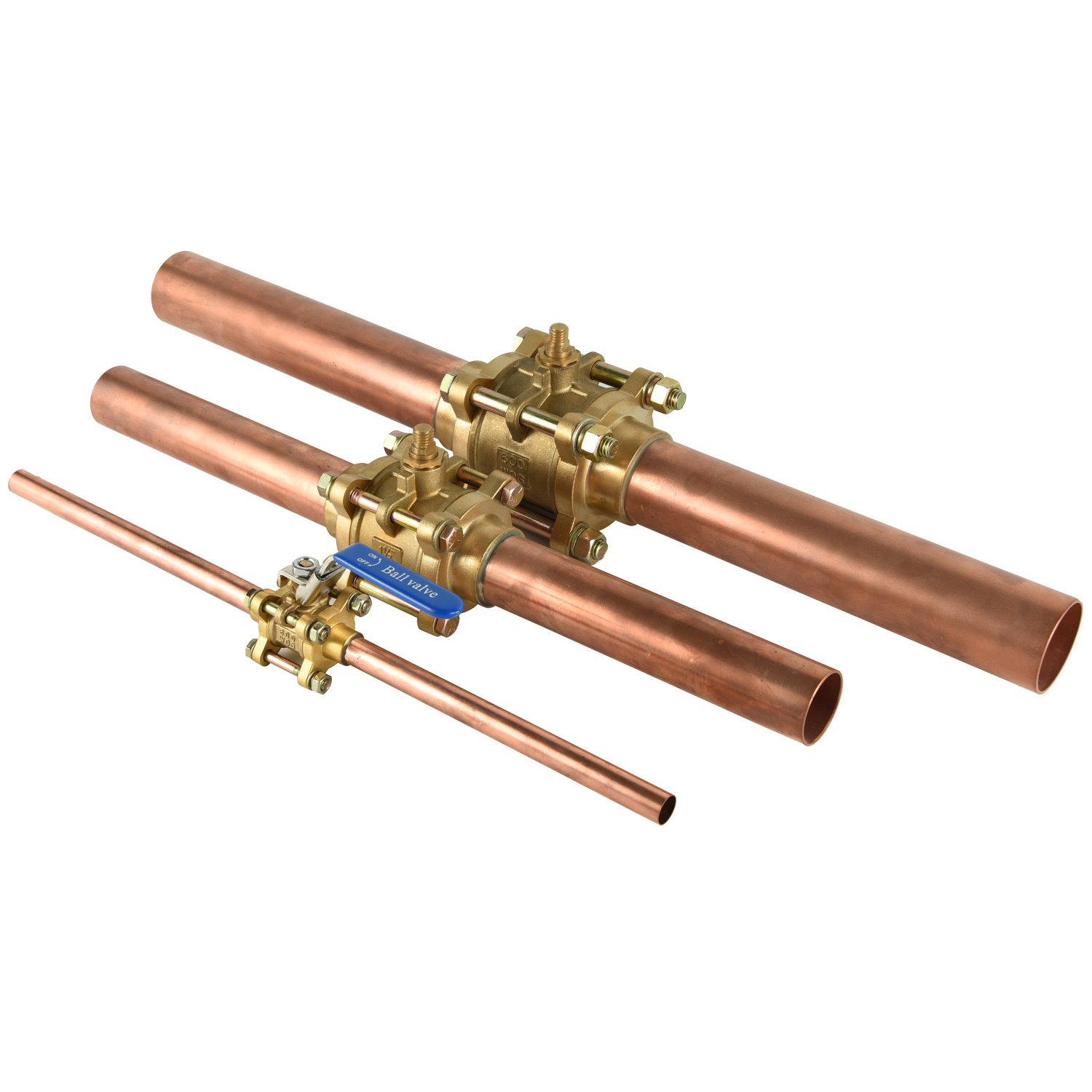

3-piece medical Brass ball valve with copper tube Specifications
Model:NR-B025 | Technical Standard | ||||
| Material | Brass CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | from 1/2" to 4" | ||||
| Connection type | Solder to solder | ||||
| Production method | Forging + machining | ||||
| Standard Ref | EN12165.EN13828 BS21 | ||||
Product Advantage:
This 3 - piece medical brass ball valve with a copper tube boasts several notable functional features:
Brass Valve Body: The brass construction of the valve body offers excellent corrosion - resistance, which is crucial in medical applications where the valve may come into contact with various fluids, some of which could be corrosive. Brass also has good mechanical strength, ensuring the valve can withstand the pressure and stress within medical fluid systems without deforming or cracking over time.
Copper Tube: The copper tube associated with the valve is known for its biocompatibility, making it suitable for use in medical environments. Copper has natural antibacterial properties, which can help prevent the growth of harmful microorganisms within the fluid - carrying system. Additionally, copper is highly ductile and can be easily formed and joined, allowing for seamless integration with the ball valve and other components in the medical setup.
3 - piece Design: The 3 - piece construction of the ball valve provides great convenience for maintenance and repair. It allows for easy disassembly of the valve into three parts, making it simple to access and replace internal components such as the ball, seats, and seals. This feature reduces downtime in medical systems as repairs can be carried out quickly and efficiently.
Ball Valve Mechanism: The ball valve design enables quick and positive shut - off. A quarter - turn of the handle rotates the ball, which has a hole through its center. When the hole is aligned with the flow path, the valve is open, allowing fluid to pass through with minimal resistance. When the ball is rotated 90 degrees, the hole is perpendicular to the flow path, providing a tight seal and stopping the fluid flow completely. This precise control over fluid flow is essential in medical applications where accurate regulation of fluids is required.

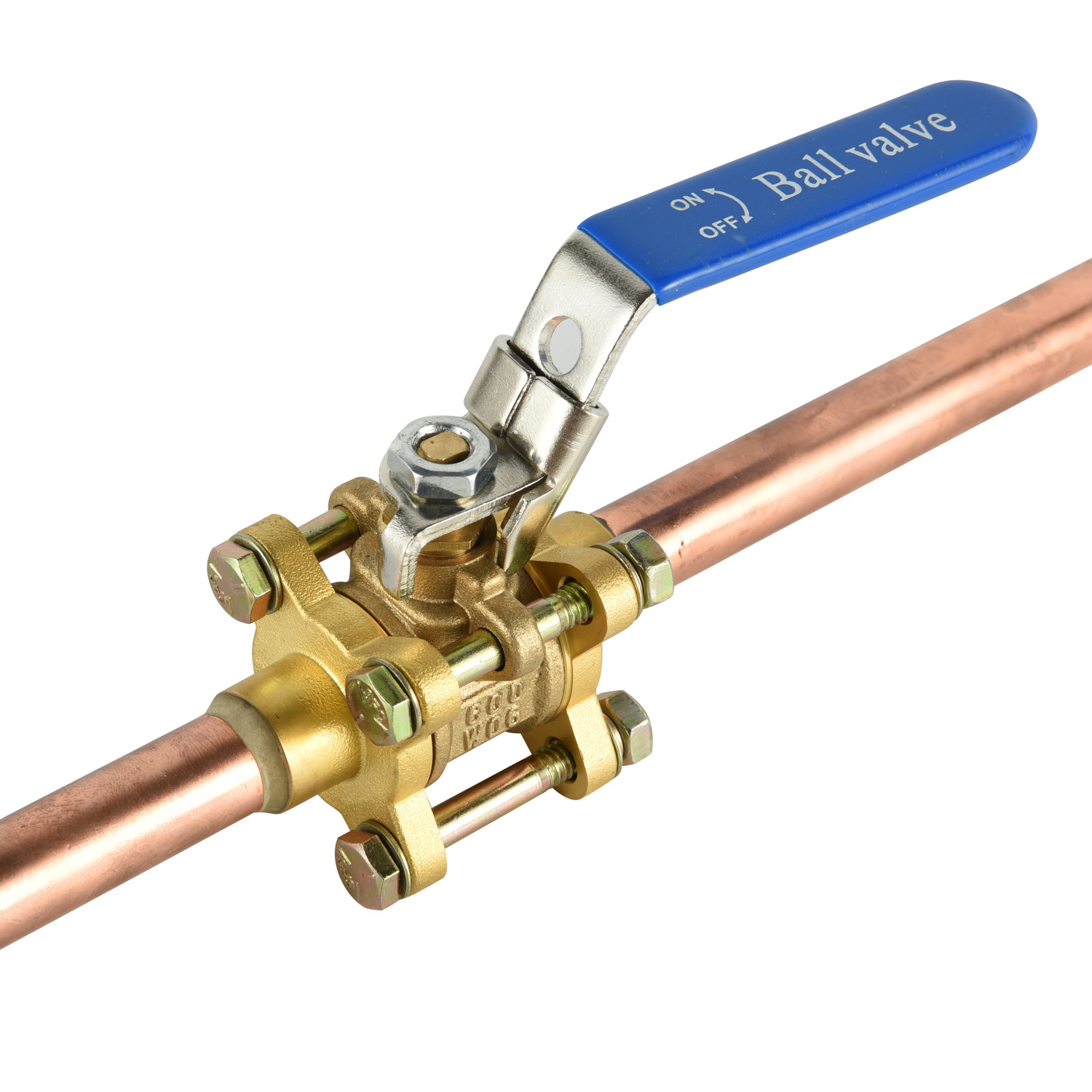

Easy Operation: The blue - handled mechanism is designed for easy manual operation. The handle is clearly marked "ON" and "OFF", ensuring that medical staff can quickly and accurately operate the valve, even in high - stress or emergency situations. The smooth rotation of the handle also reduces the effort required to open and close the valve, making it user - friendly.
Sealing Performance: The ball valve is engineered to provide excellent sealing performance. The ball and seats are precisely machined to ensure a tight fit, preventing any leakage of fluids. This is of utmost importance in medical systems where fluid integrity and containment are critical to patient safety and the proper functioning of medical equipment.
Medical - grade Compatibility: The valve is designed to meet the strict requirements of medical applications. It is suitable for use with a variety of medical fluids, such as water for injection, saline solutions, and some pharmaceutical liquids. Its materials and construction are compliant with relevant medical standards and regulations, ensuring its safety and reliability in a medical environment.
.
