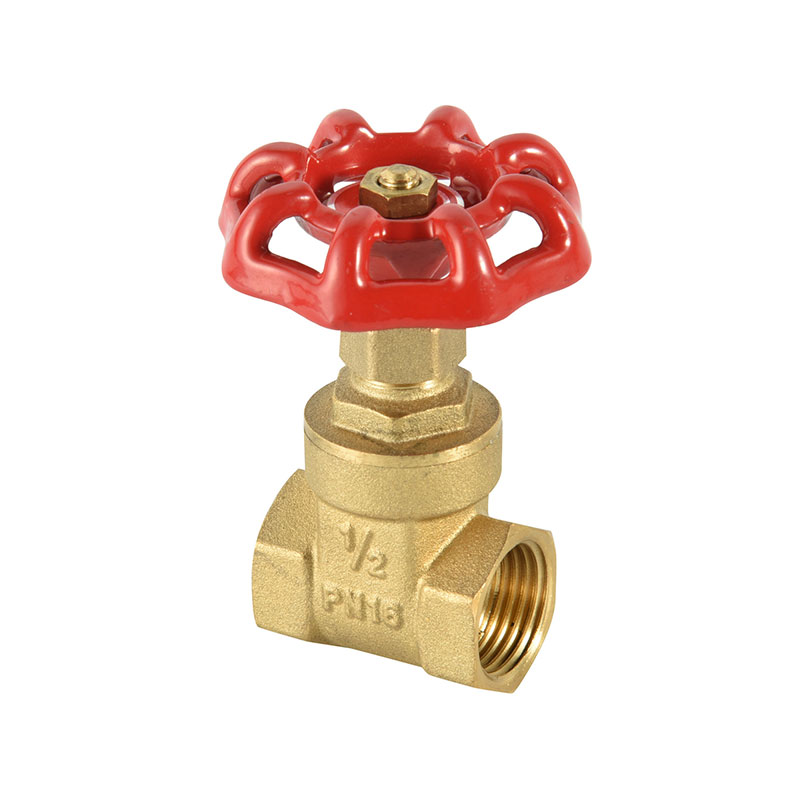

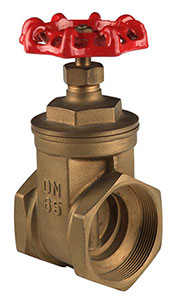

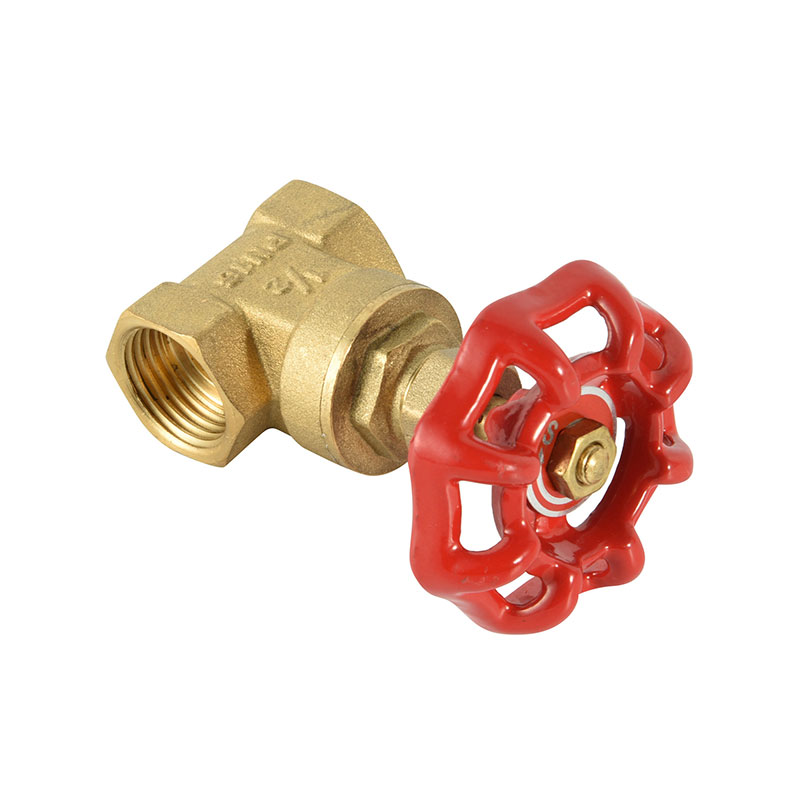

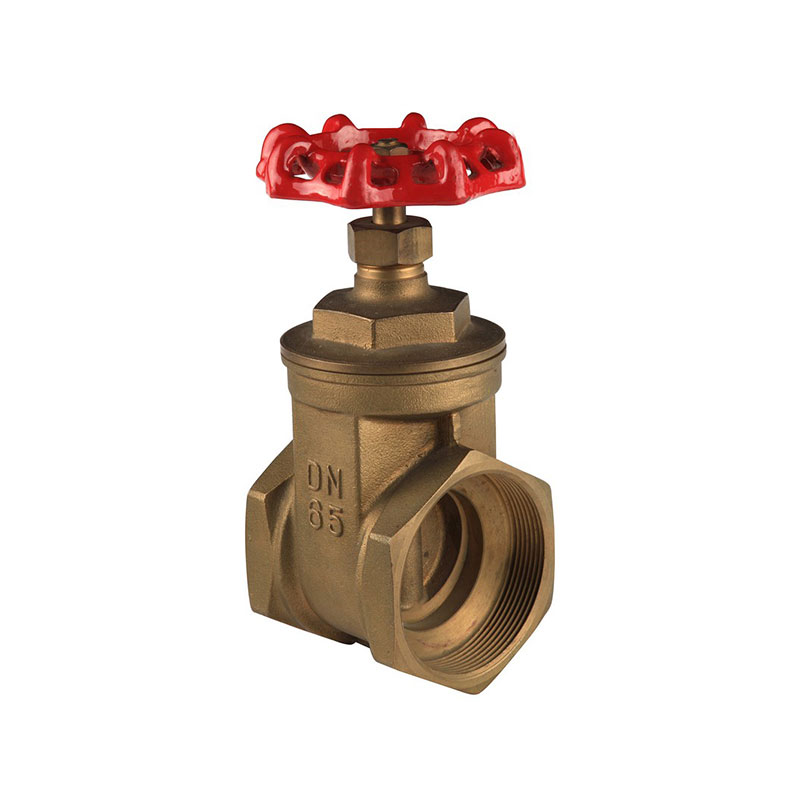

Non-Rising Brass Gate Valve NR-G002

PN20 or PN16,Non-rising stem,screwed in bonnet,single piece wedge,apply for HVAC system,cold and hot water,oil,air and steam
The Non-Rising Brass Gate Valve is a type of valve designed specifically for applications requiring reliable shut-off without the need for the valve stem to rise when fully closed. Constructed primarily from brass, this valve offers a combination of durability, corrosion resistance, and excellent flow characteristics.
Non-Rising Brass Gate Valves are commonly used in plumbing systems, irrigation systems, HVAC systems, and various industrial applications where a reliable shut-off valve is required. They are particularly suited for applications where space is limited or where a streamlined valve design is preferred.

Model:
NR-G002
Brand:
Raising
Unit price:

Quantity:
Availability:





Inquire Add to Basket

Brass Gate Valve Brass Gate Valve Manufacturer Brass Gate Valve supplier gate valve forged gate valve Non-Rising Brass Gate Valve

Product Description

Technical Standard of Non-Rising Brass Gate Valve

Model:NR-G002	Material	Brass CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc
	Working Medium	Water and Non-corrosive liqid
	Working Pressure	16 bar
	Working Temperature	-20℃ to 120℃
	Size Range	from 1/2"to 4"
	Connection type	Thread(BSP.NPT)
	Production method	Forging+machining
	Standard Ref	BS 5154

Non-Rising Brass Gate Valve Features

1. Corrosion Resistance: Brass, being an alloy of copper and zinc, exhibits excellent corrosion resistance to common fluids and gases, making it suitable for a wide range of applications.

2. Durability: Brass is known for its strength and long-lasting performance, ensuring the valve withstands the rigors of daily use and maintains tight sealing over time.

3. Smooth Operation: The non-rising stem design eliminates the need for additional space above the valve, facilitating easier installation and operation in confined spaces.

4. Full Flow: When fully open, the gate allows for unrestricted flow, minimizing pressure drop and turbulence, which is beneficial for systems requiring high flow rates.

5. Tight Seal: The valve provides a positive shut-off when closed, preventing leakage and ensuring system integrity.
