Brass Bibcock NR-S004

Brass Bibcock, also commonly known as a brass tap or faucet, is a type of valve used to control the flow of water in various applications .
The main function of a brass bibcock is to regulate the flow of water into and out of a system. It can be used to turn the water supply on or off, as well as to adjust the flow rate to meet specific needs.
Brass bibcocks are commonly used in residential, commercial, and industrial settings. They can be found in kitchens, bathrooms, laundry rooms, and other areas where water is needed. They are also used in plumbing systems, irrigation systems, and other water distribution networks.

Model:
NR-S004
Brand:
Raising
Unit price:

Quantity:
Availability:





Inquire Add to Basket

Brass Tap Brass Faucet Brass Bibcock Brass watertap

Product Description

Technical Standard of Brass Bibcock

Model:NR-S004	Material	Brass CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc
	Working Medium	Water and Non-corrosive liqid
	Working Pressure	16 bar
	Working Temperature	-20℃ to 120℃
	Size Range	1/2",3/4"
	Connection type	Thread(BSP.NPT)
	Production method	Casting+machining
	Standard Ref	BS 1010

Advantages of Brass Bibcock

This brass bibcock is a practical plumbing fixture with several useful features:

1. Material - related Features

High - Quality Brass: Constructed from brass, it offers excellent corrosion - resistance. Brass is highly durable when exposed to water, which is the main medium for bibcocks. This property ensures a long lifespan, even in harsh or humid environments, such as outdoor settings where it may be constantly exposed to moisture. Its strength also allows it to withstand normal mechanical stress during use without deforming easily.

2. Operational Features

T - handle for Easy Operation: The T - shaped handle provides a comfortable grip, enabling users to easily open and close the valve. A simple turn of the handle controls the water flow, making it convenient for various tasks like filling containers or watering plants. The handle design allows for good torque application, reducing the effort needed to operate the bibcock.
Precise Flow Control: It offers precise control over water flow. Whether you need a gentle stream for delicate tasks or a strong flow for faster filling, the valve mechanism inside the bibcock can be adjusted accordingly. This is achieved through the design of the valve seat and the movement of the internal components when the handle is turned.

3. Connection and Compatibility Features

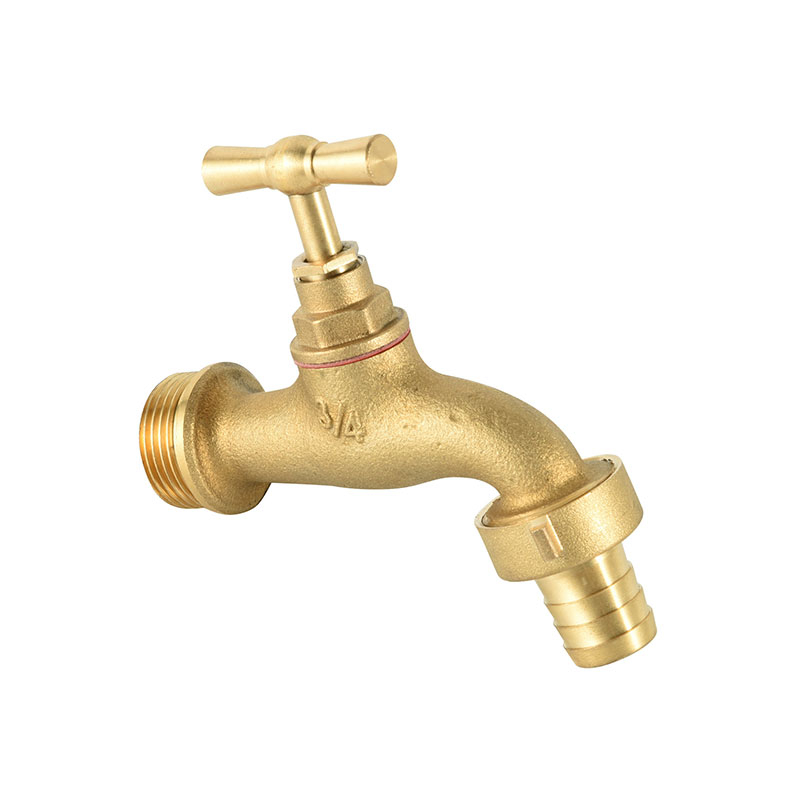

Threaded Inlet and Outlet: The bibcock has a threaded inlet for easy connection to the water supply pipeline. This standard threading ensures a secure and leak - free connection. On the outlet side, the threaded or hose - barb design (as seen in the image) allows for the attachment of hoses. The hose - barb end is specifically designed to hold a hose firmly in place, preventing it from slipping off during use. This makes it suitable for a wide range of applications, from garden hoses for outdoor watering to hoses used in utility tasks.

4. Installation and Placement Features

Wall - Mountable: It is designed to be wall - mounted, making it a space - saving solution. This installation method allows it to be placed in various locations, both indoors and outdoors. In outdoor settings, it can be installed on the side of a house for garden use, while indoors, it may be found in utility rooms or basements for general water access. Its compact design and wall - mounted nature make it unobtrusive while still being easily accessible for use.
