NR-L050
Raising
| Quantity: | |
|---|---|
Model:NR-L050 | Technical Standard | ||||
| Material | Brass CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | 1/2",3/4" and 1" | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Forging + machining | ||||
| Standard Ref | EN12165.EN13828 BS21 | ||||

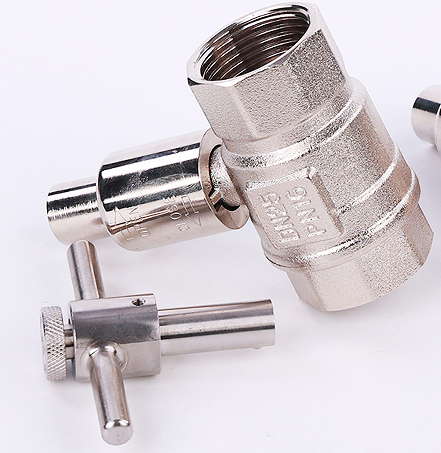

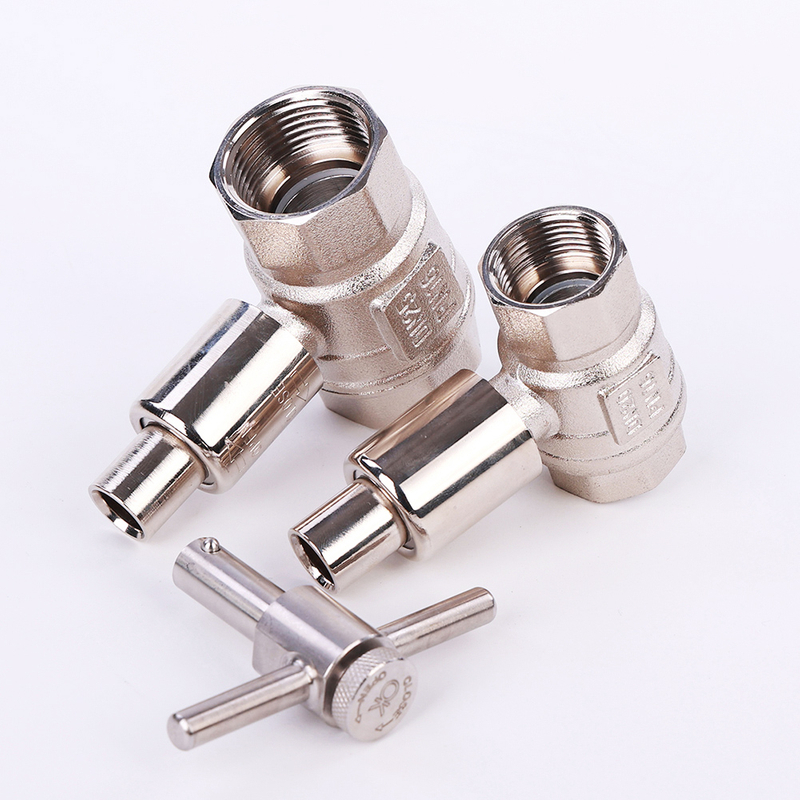

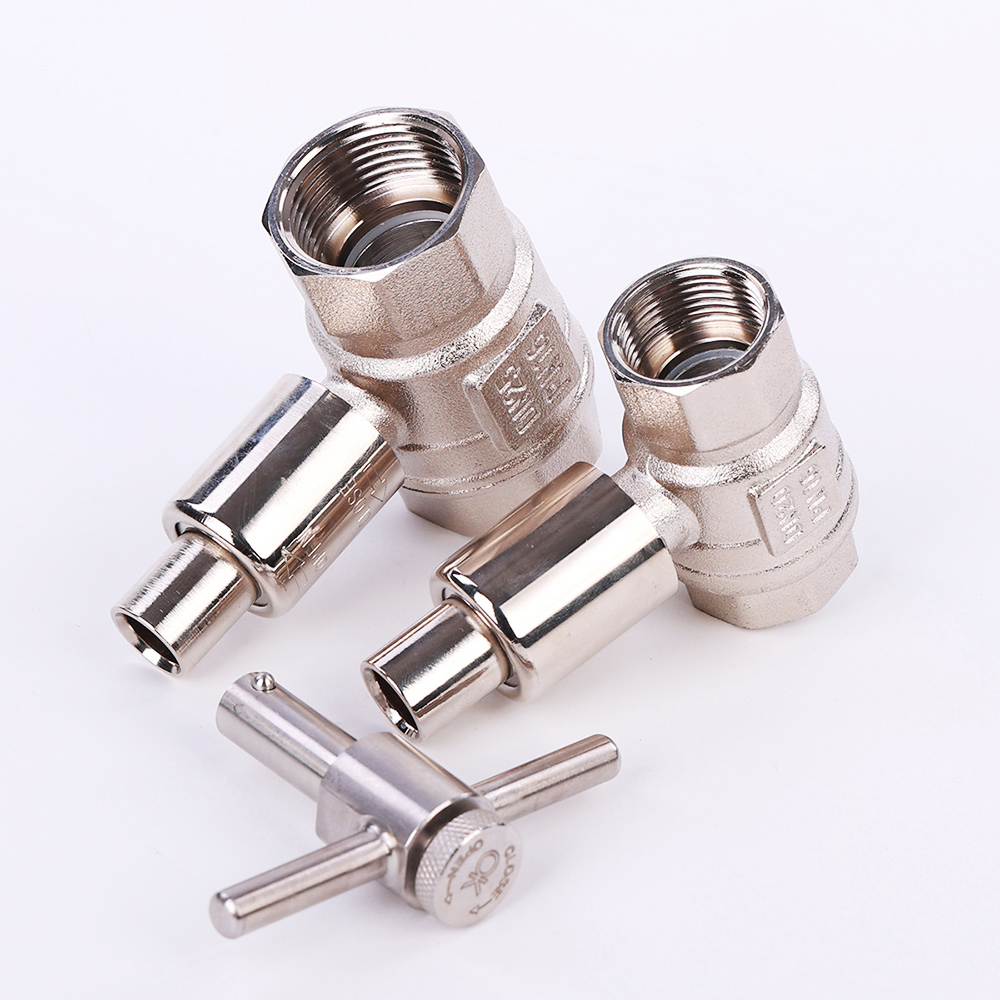

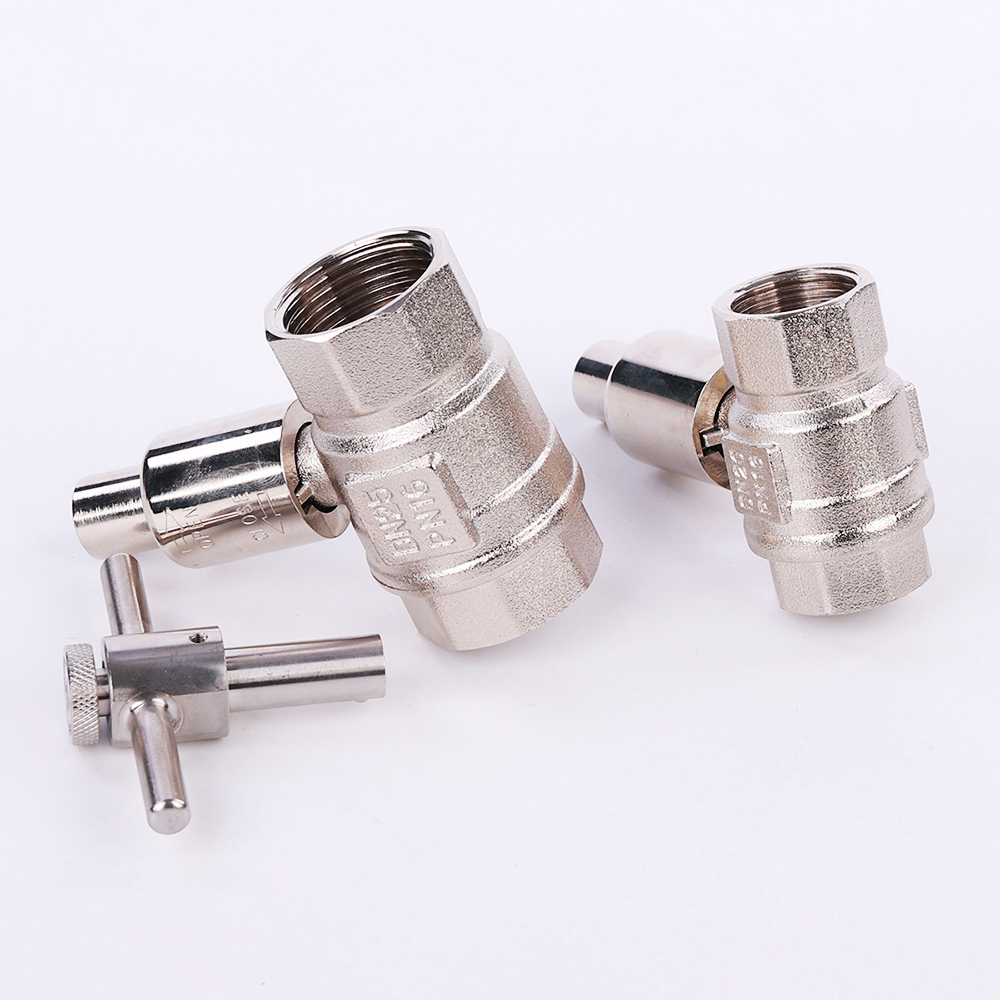

key advantages of Brass nickel plated lockable ball valve
Flow Control: They are used to control the flow of fluids, such as water, in plumbing and heating systems. By rotating the handle, the ball inside the valve can be positioned to either fully open the passage for maximum flow, partially open it for regulating the flow rate, or completely close it to stop the fluid flow.
Lockable Feature: Some of these valves are equipped with a lockable mechanism. This allows users to fix the valve in the open or closed position, preventing unauthorized operation. It is especially useful in scenarios where security and proper system management are crucial, like in industrial set - ups or certain building plumbing systems.
Material Durability: Made from brass, these valves are highly durable and resistant to corrosion. Brass is known for its excellent mechanical properties and ability to withstand harsh environments, ensuring a long service life.
Enhanced Corrosion Resistance: The nickel - plating on the surface not only gives the valves an attractive appearance but also further improves their corrosion resistance. This protective layer can withstand exposure to moisture, chemicals, and other corrosive substances.
Easy Installation: They come with female threaded connections, which are standard and easy to install on pipes. This makes the installation process quick and convenient, reducing the need for complex tools or professional skills.
Precise Operation: The ball - valve design enables precise flow control. Users can accurately adjust the flow rate according to their specific requirements, which is beneficial in various applications, from domestic water supply to industrial fluid management.
