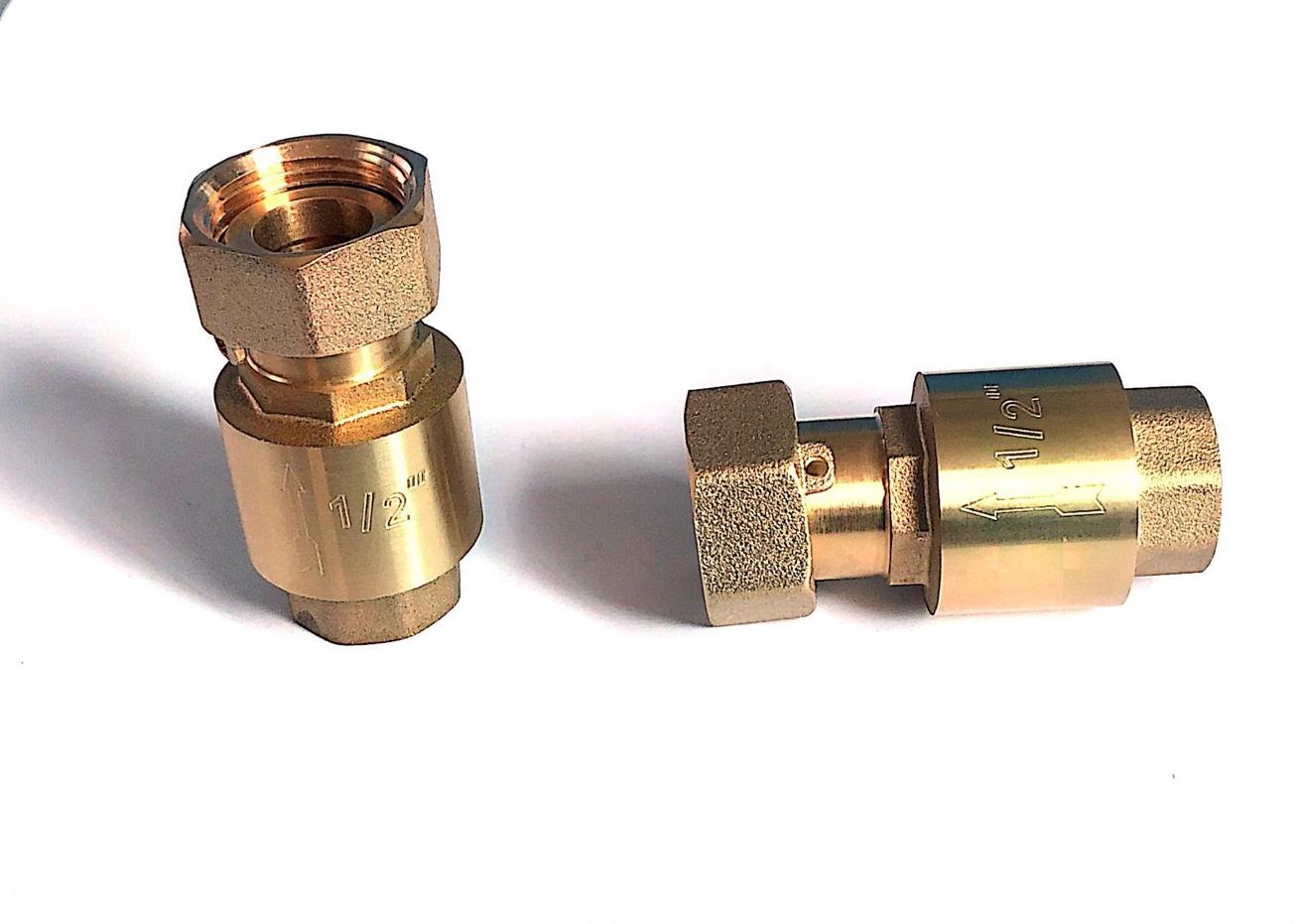

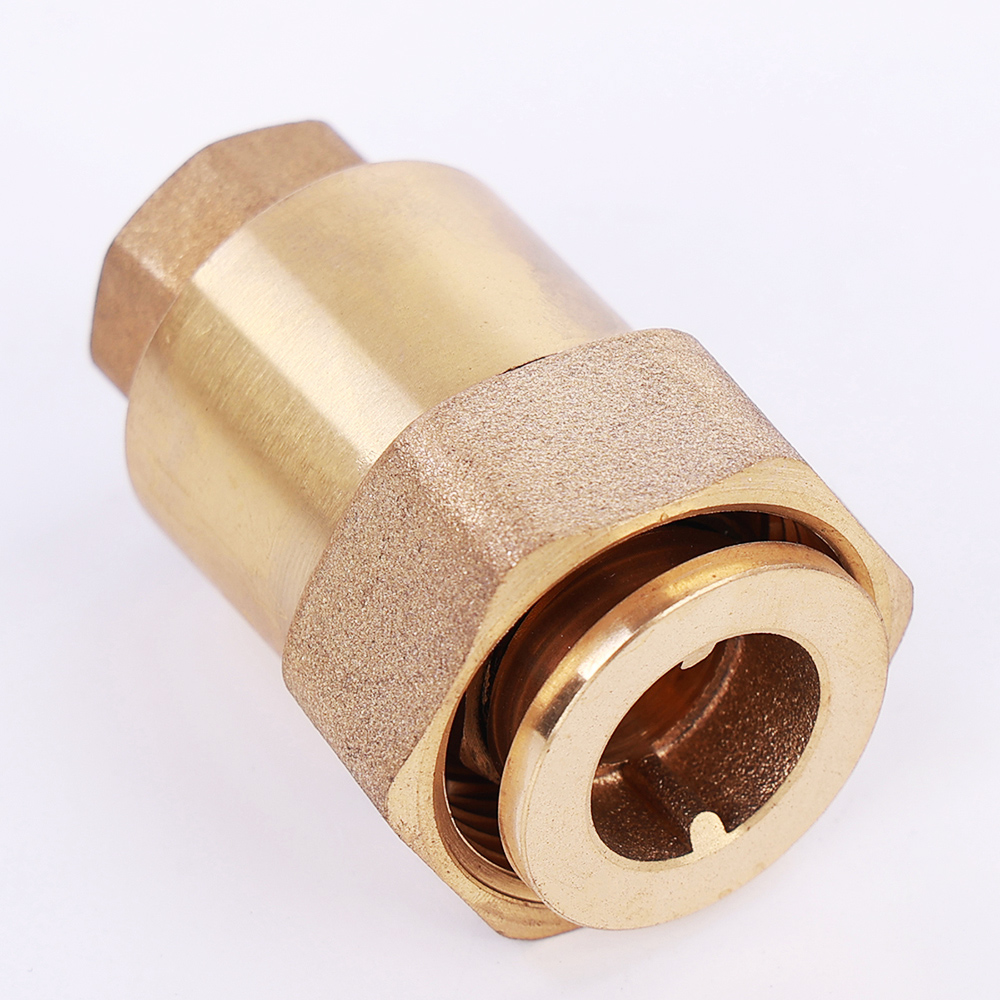

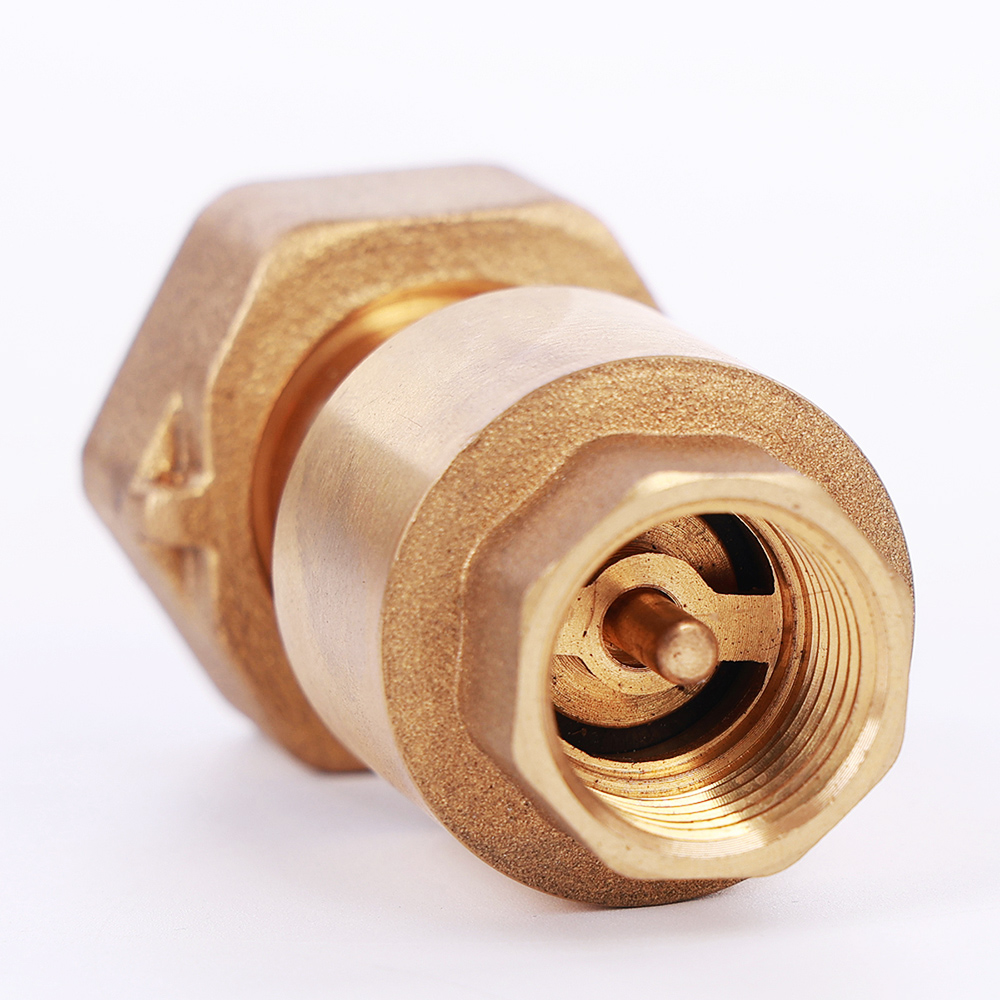

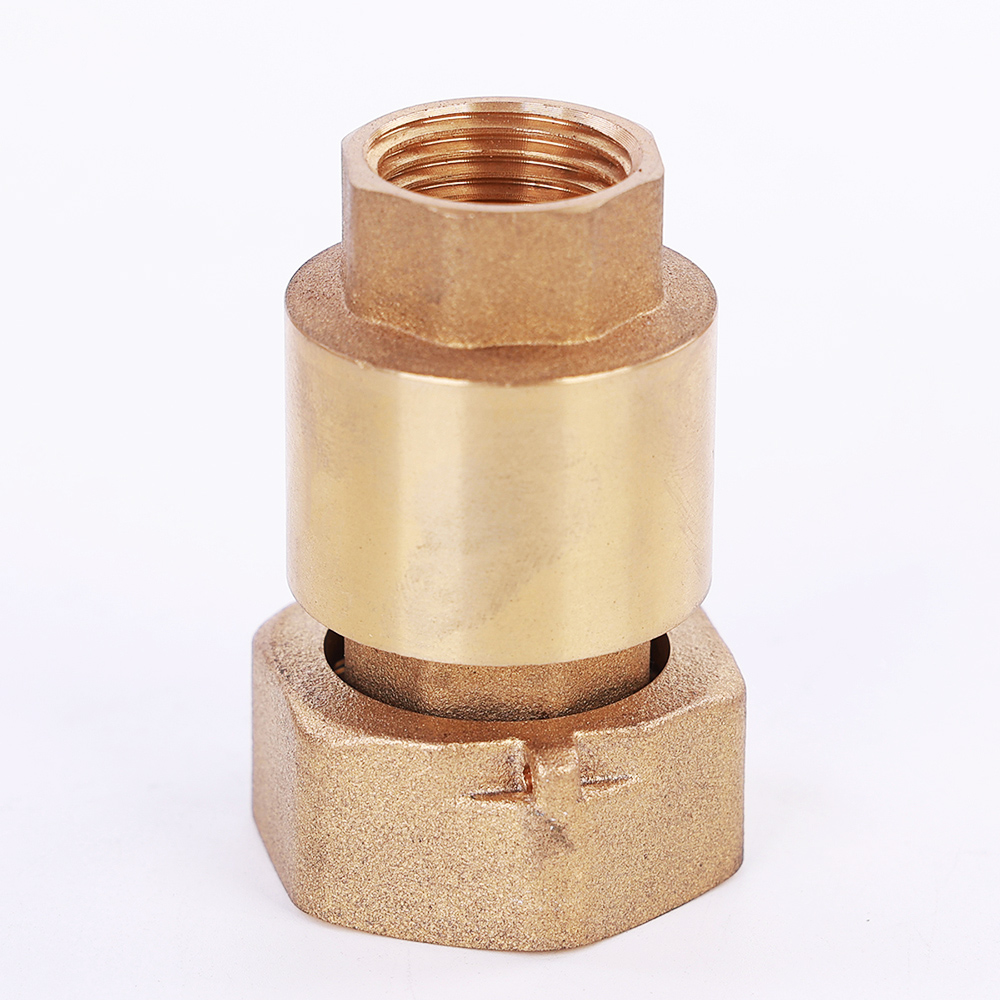

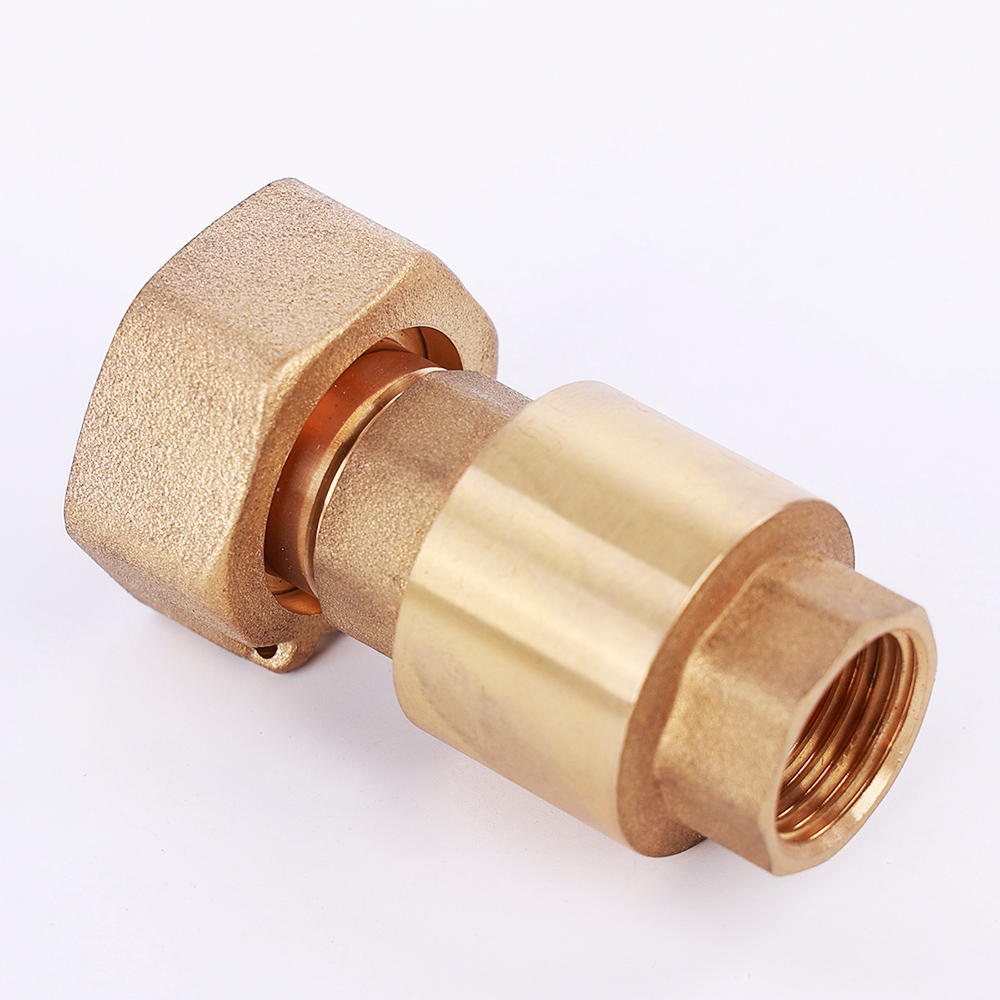

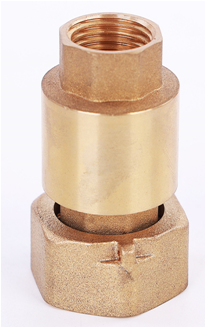

Brass spring check valve with swivel nut （NR-C002）

Brass spring check valve with brass or plastic core,swivel nut can connect with water meter
Brass Spring Check Valve with Swivel Nut is a versatile and reliable fluid control device designed to ensure efficient and unidirectional flow in various industrial and plumbing applications. Constructed from high-quality brass, this valve combines durability with corrosion resistance, making it ideal for use in environments where water, oil, or other fluids are present.

Model:
NR-C002
Brand:
Raising
Unit price:

Quantity:
Availability:





Inquire Add to Basket

Brass Spring Check Valve with swivel nut Spring Check Valve forged spring check valve spring check valve with swivel nut

Product Description

Brass Spring Check Valve with swivel nut Spec

Model:NR-C002	Technical Standard
	Material	Brass CW617N,HPB59-1,DZR CW602N,lead free brass C46500,CW511L,etc
	Working Medium	Water and Non-corrosive liqid
	Working Pressure	16 bar
	Working Temperature	-20°C to 120°C
	Size Range	from 1/2" ,3/4" and 1"
	Connection type	Thread(BSP.NPT)
	Production method	Forging + machining
	Standard Ref	DIN 259 / ISO9001

Brass Spring Check Valve Product Highlights

Product Advantage:

1. Brass Construction:

Crafted from premium brass alloy, the valve offers excellent corrosion resistance and long-lasting durability.

Brass's natural resistance to tarnishing and discoloration ensures that the valve maintains its appearance and functionality over time.

2. Spring-Loaded Mechanism:

The spring-loaded design ensures that the valve closes rapidly and securely once the fluid flow stops, preventing backflow and maintaining system integrity.

The spring is carefully calibrated to provide the right balance of responsiveness and reliability.

3. Swivel Nut:

The swivel nut feature allows for easy installation and adjustment, providing greater flexibility in fitting the valve into tight or awkward spaces.

The nut's swivel action simplifies maintenance and replacement tasks, reducing downtime and labor costs.

Installation and Maintenance:

· Installation is straightforward, thanks to the swivel nut design, which allows for easy tightening and adjustment.

· Regular maintenance, such as inspecting the spring and valve seat for wear or damage, can extend the valve's lifespan and ensure optimal performance.

· Cleaning the valve periodically can help prevent clogging and ensure smooth fluid flow.

Brass Spring Check Valve with Swivel Nut is an essential component for maintaining efficient and reliable fluid flow in a variety of applications. Its combination of durability, corrosion resistance, and ease of installation makes it a valuable addition to any fluid control system. Whether you're working in irrigation, plumbing, automotive, or industrial settings, this valve is designed to meet your needs and deliver consistent performance.
