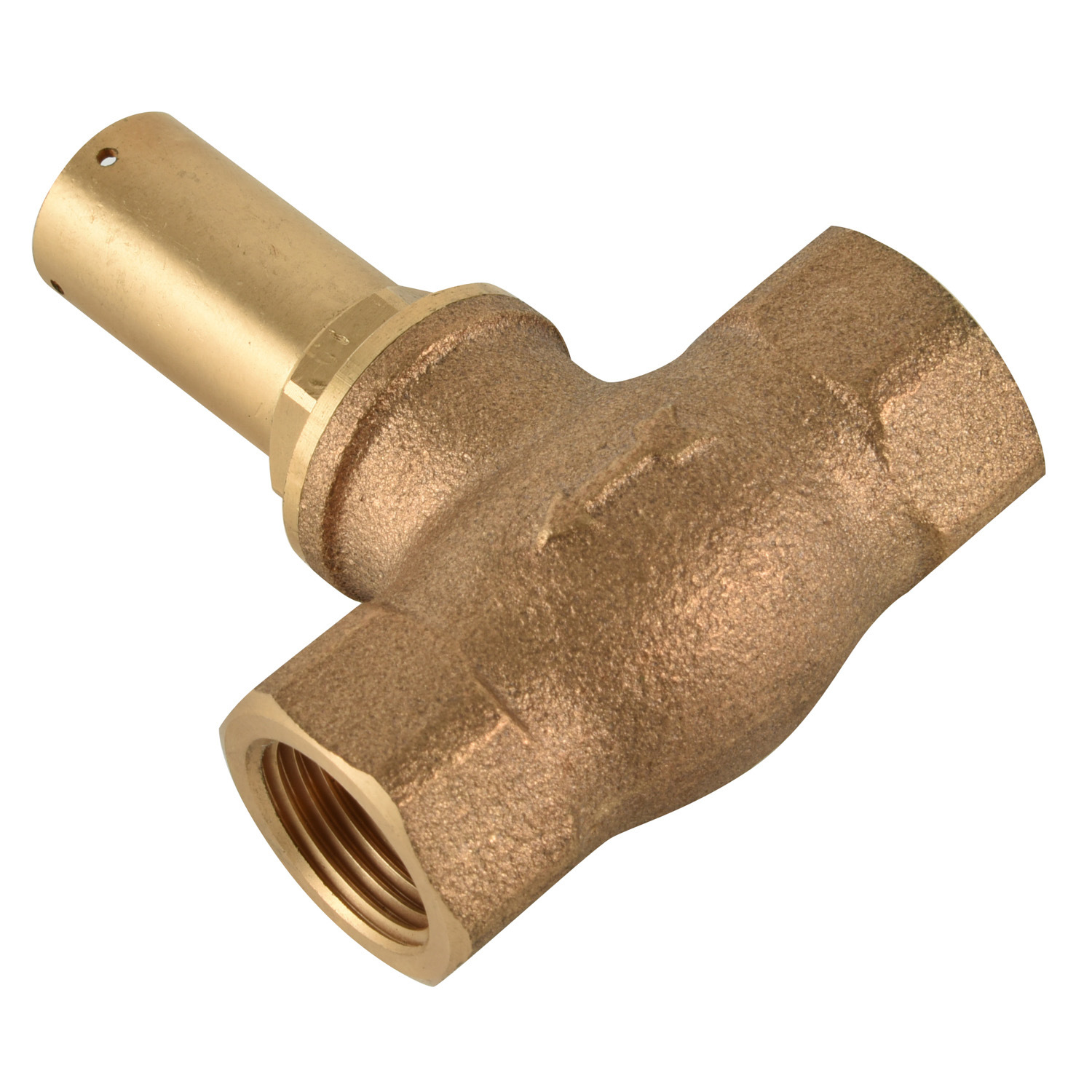

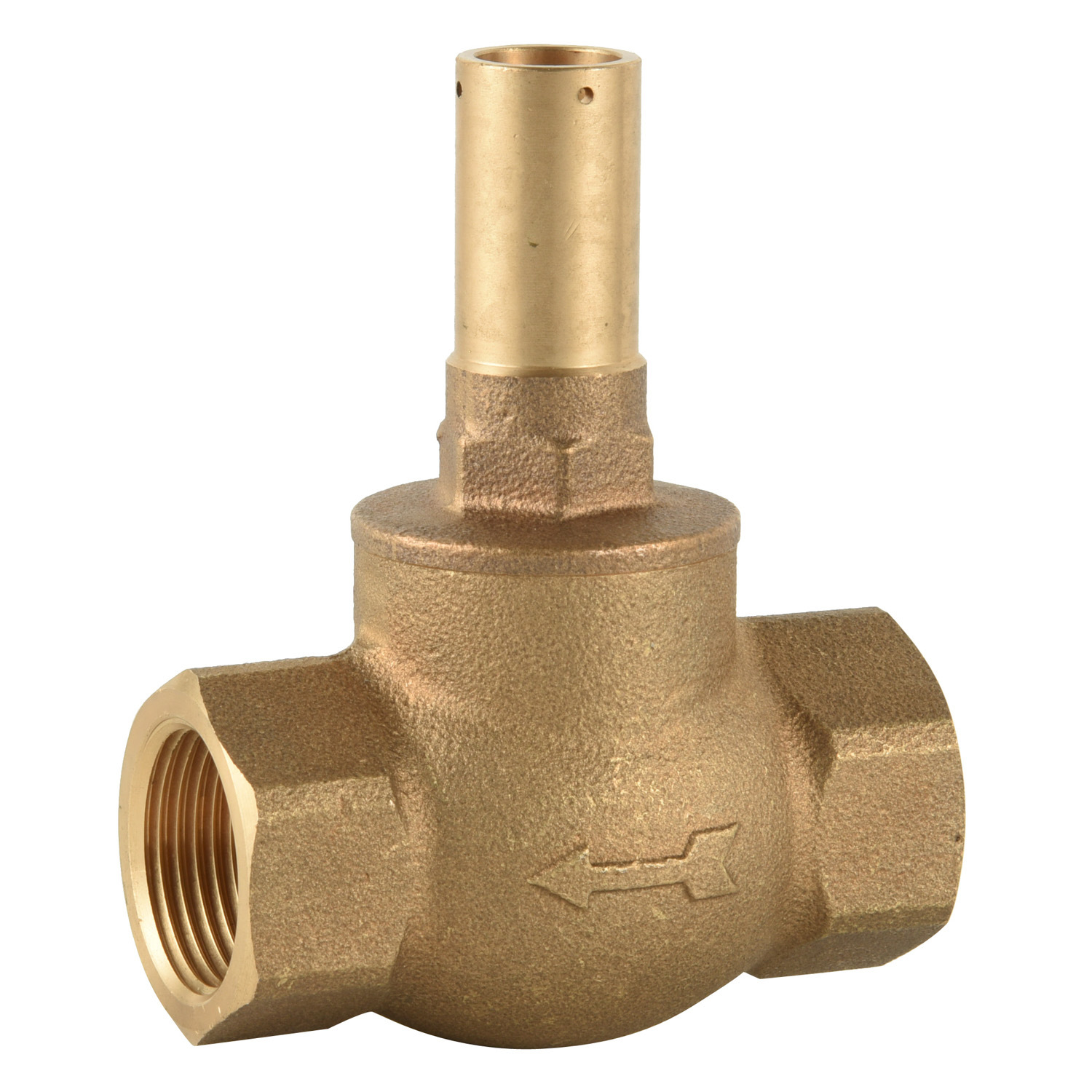

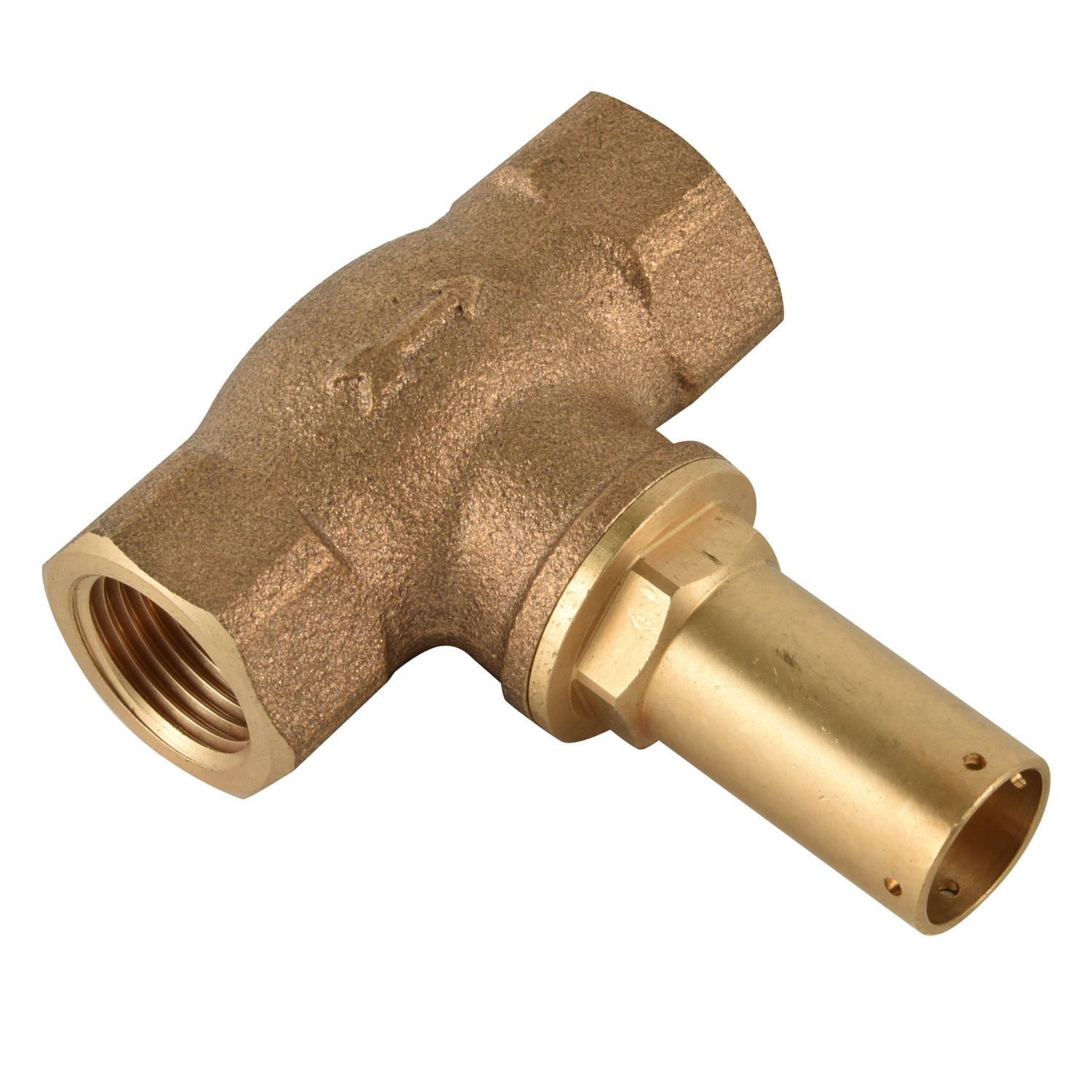

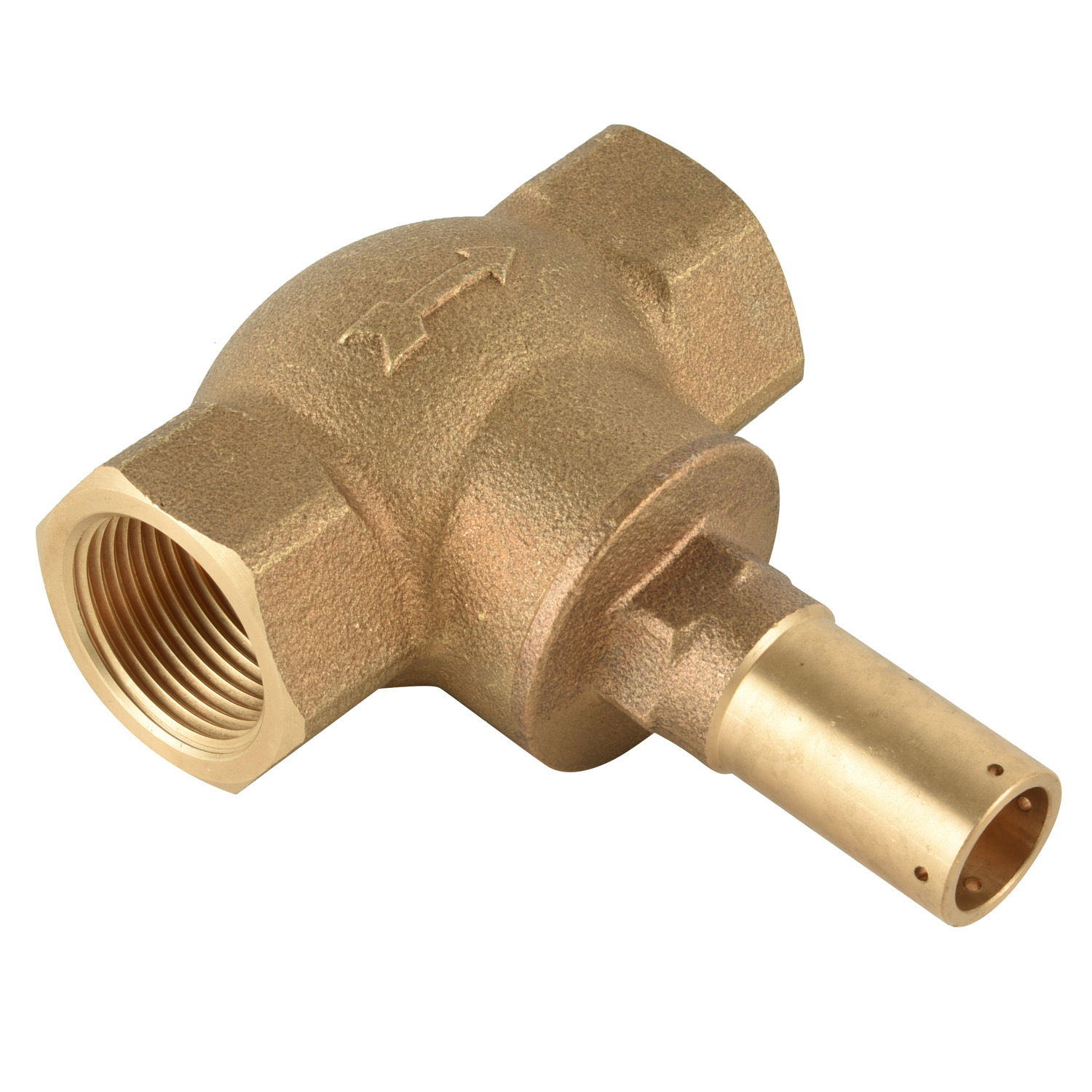

Bronze stop cock NR-S006

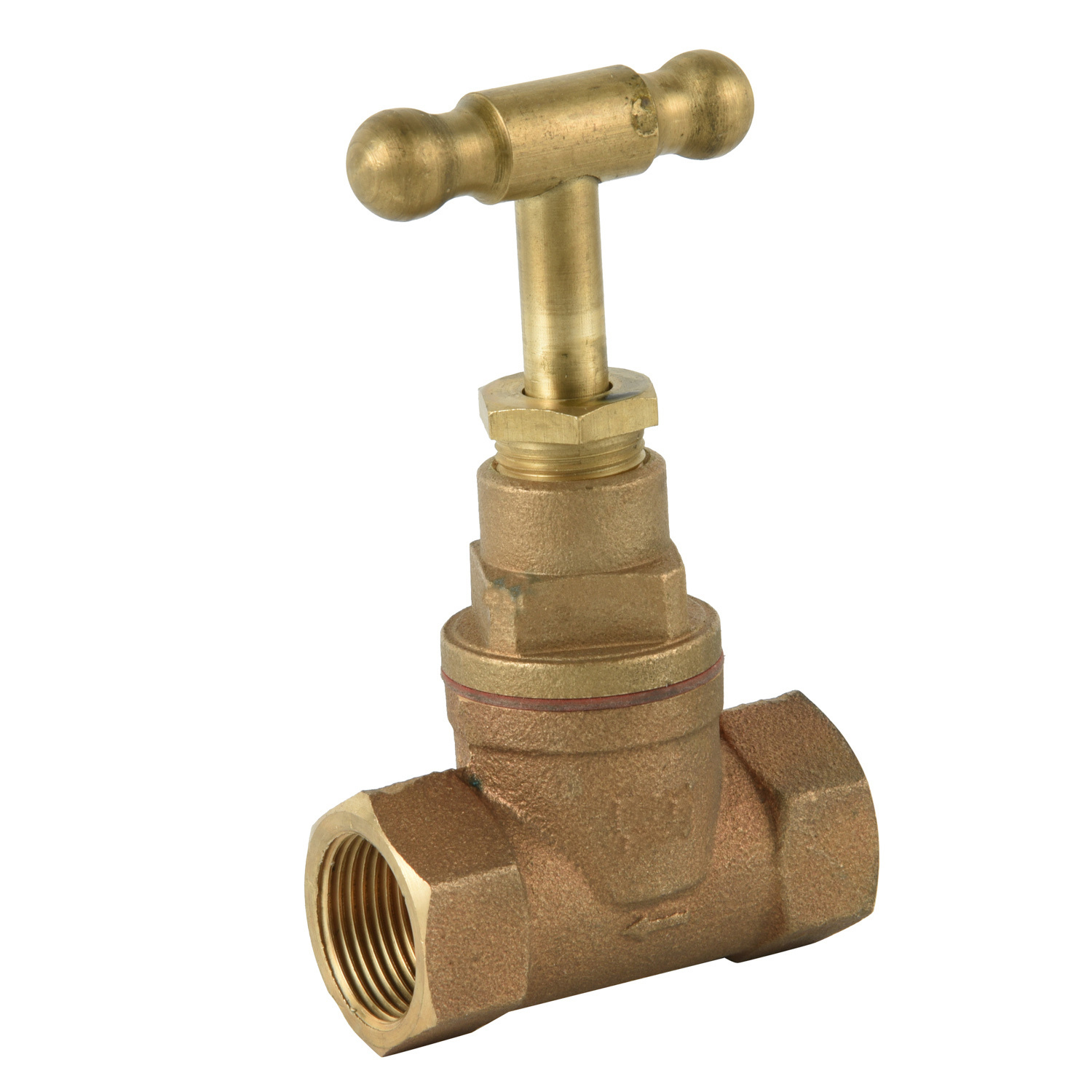

Product Description: Bronze Stop Cock with crutch head
The Bronze Stop Cock is a reliable and durable valve designed for controlling the flow of water in various piping systems. Crafted from high-quality bronze, this valve is built to withstand the rigors of daily use and provide long-lasting performance.

Model:
NR-S006
Brand:
Raising
Unit price:

Quantity:
Availability:





Inquire Add to Basket

Bronze stop valve Casting bronze stop valve supplier stop valve from China Casting bronze Stop Cock Casting bronze Stop Cock with female thread

Product Description

Bronze Stop Cock Spec

Model:NR-S006	Technical Standard
	Material	Gunmetal,bronze C83600,C84400,lead free bronze C89833,C87850
	Working Medium	Water and Non-corrosive liqid
	Working Pressure	16 bar
	Working Temperature	-20°C to 120°C
	Size Range	from 1/2" ,3/4" and 1"
	Connection type	Thread(BSP.NPT)
	Production method	Casting + machining
	Standard Ref	BS or ISO standard

Product features:

Bronze Stop Cock with a crutch - head operates based on a relatively straightforward principle to control the flow of fluids, typically water, in a piping system. Here's how it works:

1. Structure and Key Components

The stop - cock has a main body made of bronze, which connects to the pipes in the system via appropriate fittings (such as threaded or compression types). Inside the body, there is a movable element, often a disc or a plug, which plays a crucial role in regulating the fluid flow. The crutch - head is attached to a stem that is connected to this movable element.

2. Opening the Valve

When you want to allow fluid to flow through the stop - cock, you turn the crutch - head. As you rotate the crutch - head, the attached stem also rotates. This rotational motion causes the internal movable element (the disc or plug) to move out of the direct path of the fluid flow. As a result, the passageway inside the valve body is unobstructed, and the fluid can freely pass through the stop - cock from one side to the other, just like water flowing through an open pipe.

3. Closing the Valve

Conversely, to stop the fluid flow, you turn the crutch - head in the opposite direction. This rotation of the crutch - head and the connected stem moves the internal disc or plug back into the flow path. The disc or plug then seals against a seating surface inside the valve body, creating a tight barrier that prevents the fluid from passing through. This effectively shuts off the flow of the fluid in the piping system, similar to putting a stopper in a bottle to halt the liquid from coming out.

Bronze stop - cocks are widely used in residential plumbing systems, commercial buildings' water supply and drainage systems, and in some industrial applications where non - corrosive and reliable fluid control is needed. They are also common in irrigation systems to manage the flow of water to different sections of the system.
