NR-W009
Raising
| Quantity: | |
|---|---|

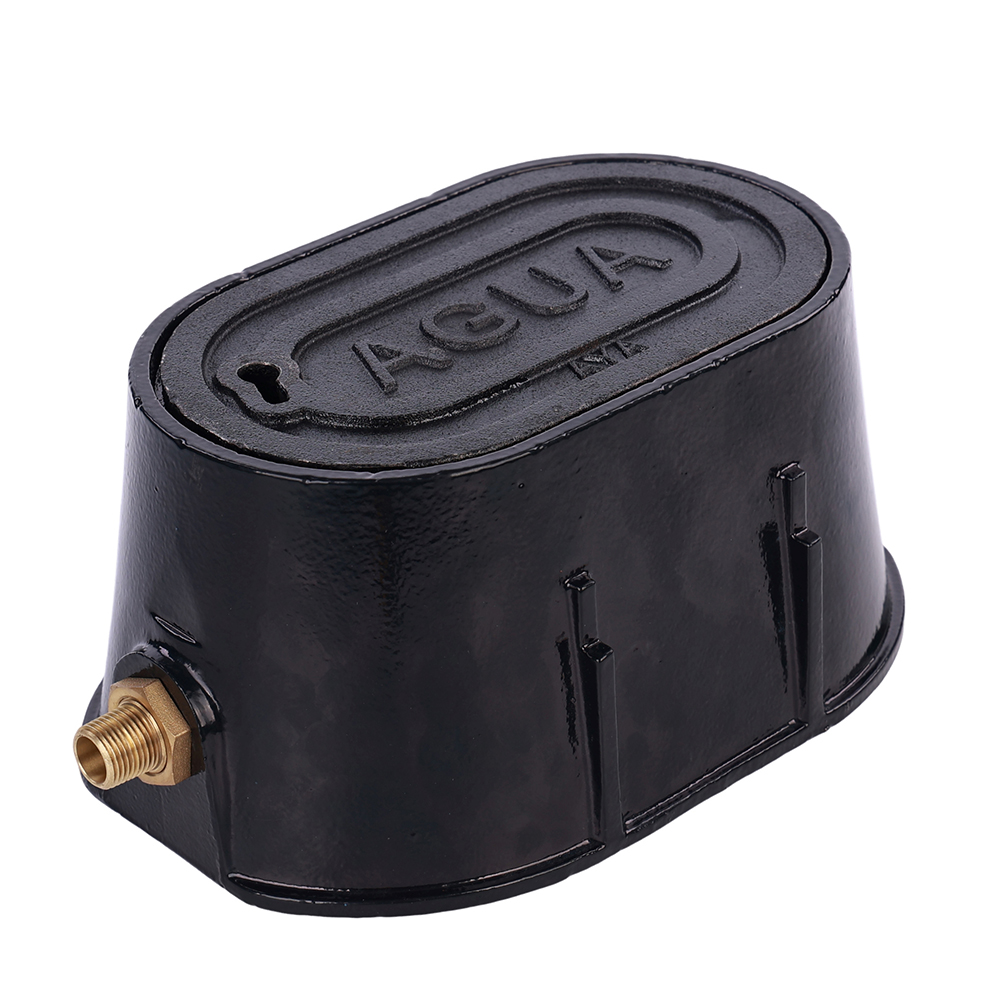

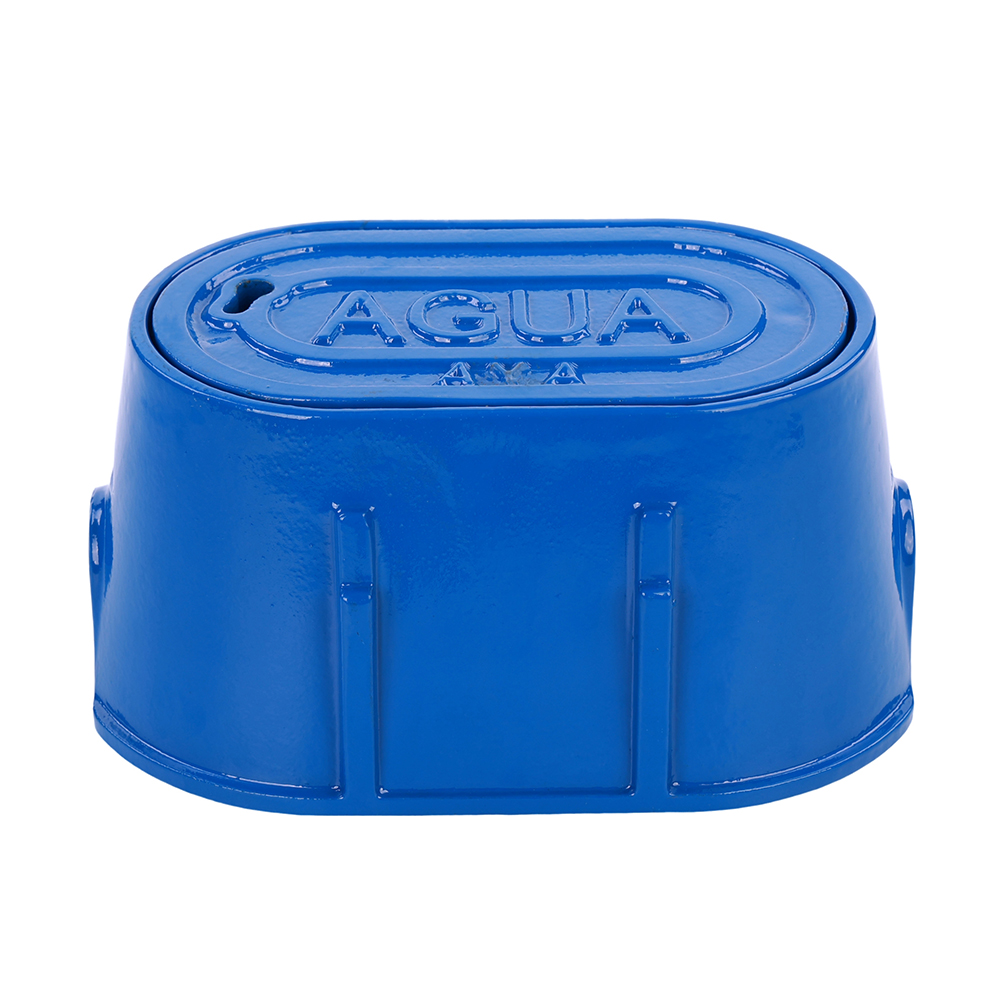

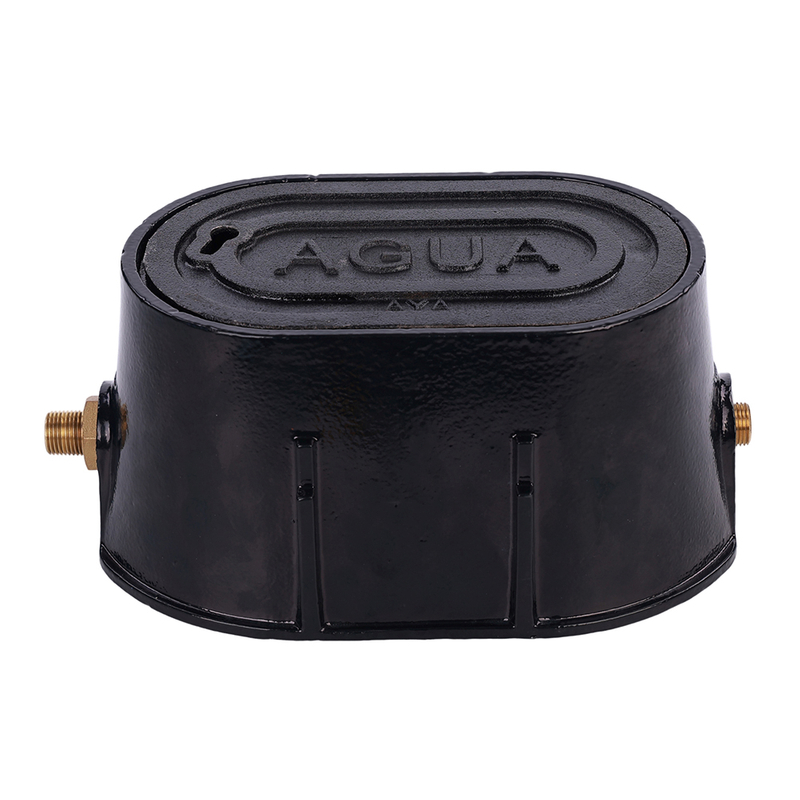

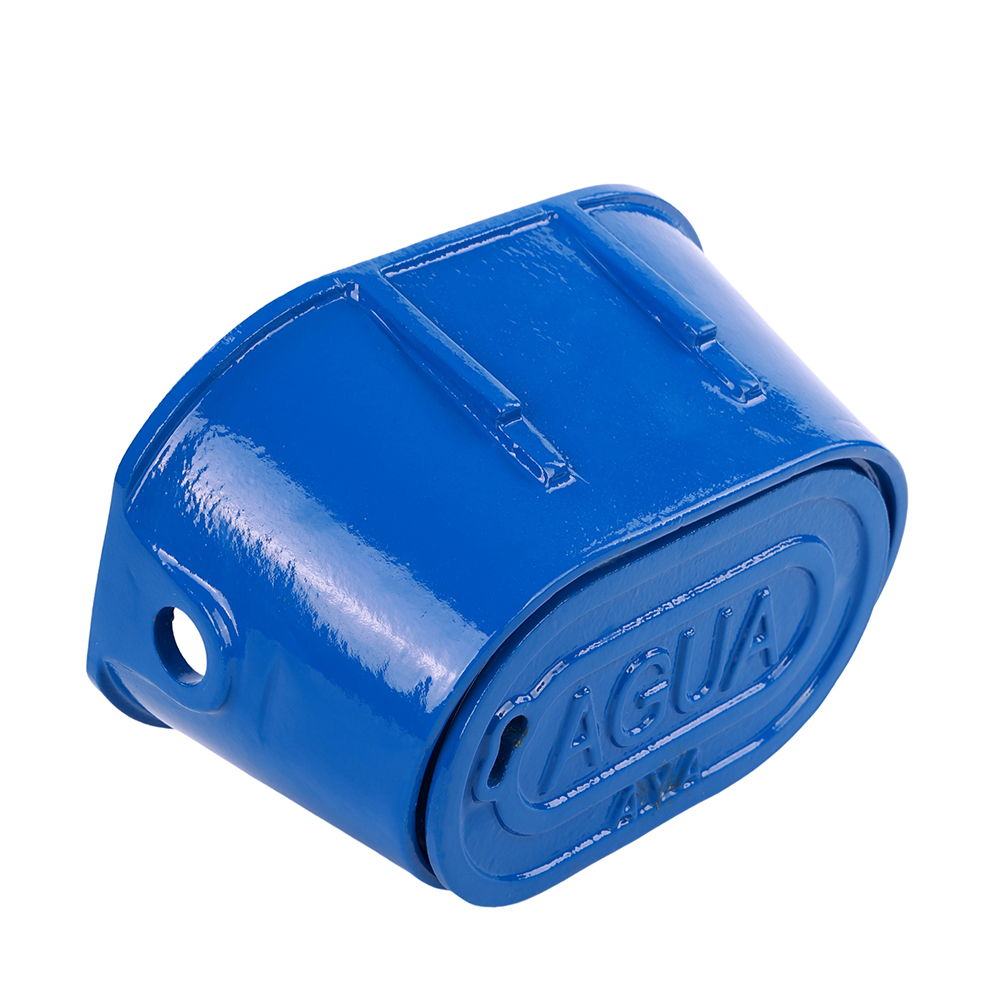

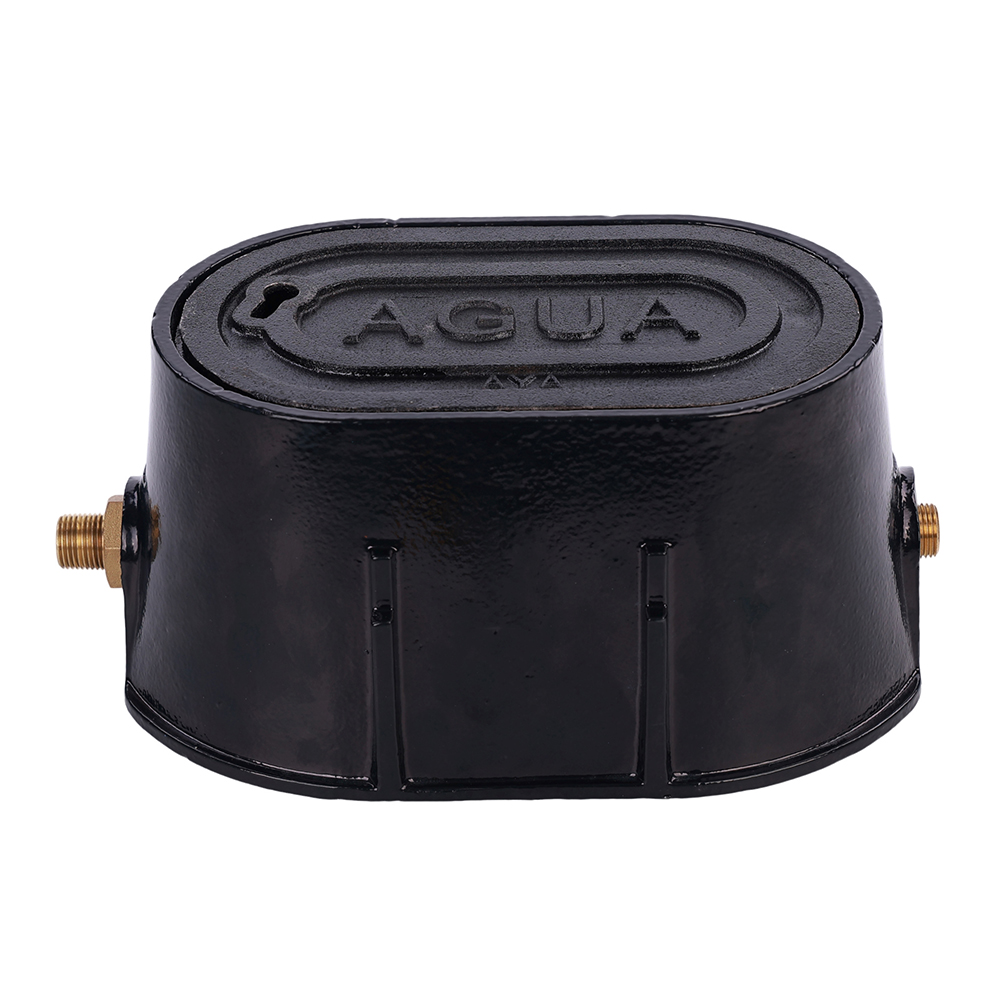

Technical Standard of cast iron water meter protection box
Model:NR-W009 | Technical Standard | ||||
| Material | Cast iron or Ductile iron | ||||
| Working Medium | Water and Non-corrosive liqid | ||||
| Working Pressure | 16 bar | ||||
| Working Temperature | -20°C to 120°C | ||||
| Size Range | For 1/2",DN15 water meter | ||||
| Connection type | Thread(BSP.NPT) | ||||
| Production method | Die casting+ machining | ||||
| Standard Ref | ASTM A48 Class 25 | ||||
Key Features:
Product Advantage:
Cast - iron Construction: Made of cast iron, this protection box offers high strength and durability. Cast iron is resistant to impacts, which means it can withstand external forces such as accidental bumps or knocks without getting easily damaged. It is also highly resistant to corrosion, making it suitable for both indoor and outdoor use, even in harsh environmental conditions like those with high humidity or exposure to chemicals.
Water - meter Protection: Its primary function is to protect the water meter from various external factors. It shields the water meter from physical damage, such as vandalism, and environmental elements like dust, dirt, and debris. This helps to ensure the accuracy and longevity of the water meter, as it remains in a clean and protected environment.
Weather Resistance: The cast - iron material and the design of the box provide excellent weather resistance. It can endure extreme temperatures, whether hot or cold, as well as different weather conditions like rain, snow, and sunlight. This ensures that the water meter inside is not affected by weather - related issues that could lead to malfunction or inaccurate readings.

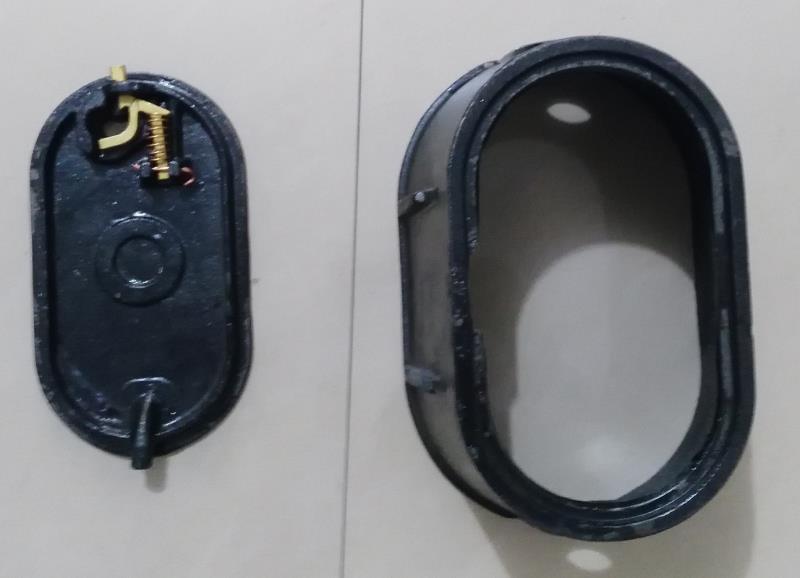

Security: The locking lid is a crucial feature that enhances the security of the water meter. It prevents unauthorized access to the water meter, which is important for preventing tampering, theft, or accidental misadjustment. The lock can be a simple key - operated lock or a more advanced locking mechanism, depending on the specific model, ensuring that only authorized personnel can access the water meter for maintenance or reading purposes.
Ease of Access for Authorized Personnel: While the locking lid provides security, it also allows for easy access for authorized individuals. The lock is designed to be opened and closed smoothly, enabling maintenance workers or meter - readers to access the water meter without any hassle when needed.
Easy Installation: The protection box is usually designed for straightforward installation. It can be easily placed around the water meter, and in some cases, it may come with pre - drilled holes or other installation features that make it convenient to fix it in place, either on the ground or on a wall, depending on the installation requirements.
Compatibility: It is typically designed to be compatible with a wide range of standard water - meter sizes and types. This ensures that it can be used in different water - supply systems, whether in residential, commercial, or industrial settings.
